DR-2477, DR-2477-P Dynamic Torque Sensor
Technical parameters

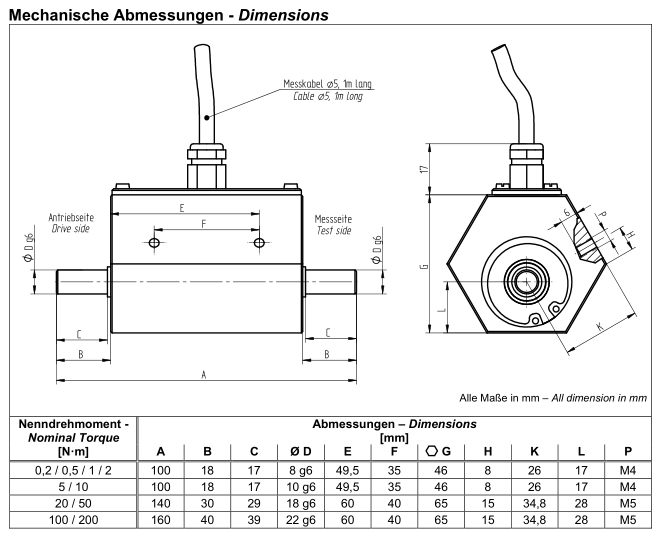

Dimensions
Product description:
Resistive strain is an integrated production of sensitive components and integrated circuits products, high precision, stable and reliable performance.
The collecting ring, which can run at high speed for a long time and output positive and negative torque signals. Both ends are key connections.
The maximum speed dose not exceed 4000rpm.
Feature
- With reset function and speed measurement function.
- Output positive and negative torque signals. Various communication methods are available.
- Non-contact structure, no wear.
- Up to 5000r/min can be customized.
- High torsional rigidity and strong overload protection capacity.
- High precision with the principle of resistance strain type.
- Good temperature characteristics with self-compensated strain gauge.
- High sampling frequency, Quick response, Strong antiinterference ability.
Product description:
Can measure the static torque and also the rotation torque;
Detection of high precision, good stability, strong anti-interference;
Without repeated zero calibration and can be measured continuously positive and negative torque;
No wear parts such as collecting ring, can run at high speed for a long time;
Strain Elastomer strength, can withstand 150% loading;
Strong anti-interference, can be anywhere, any direction of installation;
Output signal: Pulse, 4-20mA
- Range: 0~20KN m
- Output: 0~±5/10V, 4~20mA optional
- Accuracy: ≤±0.2%F.S
- Maximum output: 12000 r/min
- Boot 5 minutes into the working status, not need preheating course.
- high accuracy, good stability and anti-jamming.
- Do not need repeated zero setting can measure positive and negative torque.
- Small volume, light weight, easy to install.
- The sensor can be used independently of the secondary instrument to directly output a frequency signal or analog that is
- proportional to the torque.
Resistance strain is an integrated product composed of sensitive components and integrated circuits;There is no wear of the collector ring, etc., it can run at high speed for a long time, and output positive and negative torque signals;Both ends are connected by key;
definition: High precision Stable performance The maximum speed does not exceed 4000 rpm
Dynamic Rotary Torque Sensor
Capacity: 5,10,20,50,100,200,500N.m
Category: Dynamic Rotary Torque Sensor
Dynamic Rotary Torque Sensor
Capacity: 0~0.1,0.2,0.3,0.5, 1~5N.m
Category: Dynamic Rotary Torque Sensor
- It is an integrated product composed of resistance strain gauge as sensing element and integrated circuit
- High precision, stable and reliable performance
- Medium/Large range torque measurement, output positive and negative torque signal, keyway connection at both ends.
- Speed up to 1800 RPM.
