D-2452, D-2452-P Static Torque Sensor

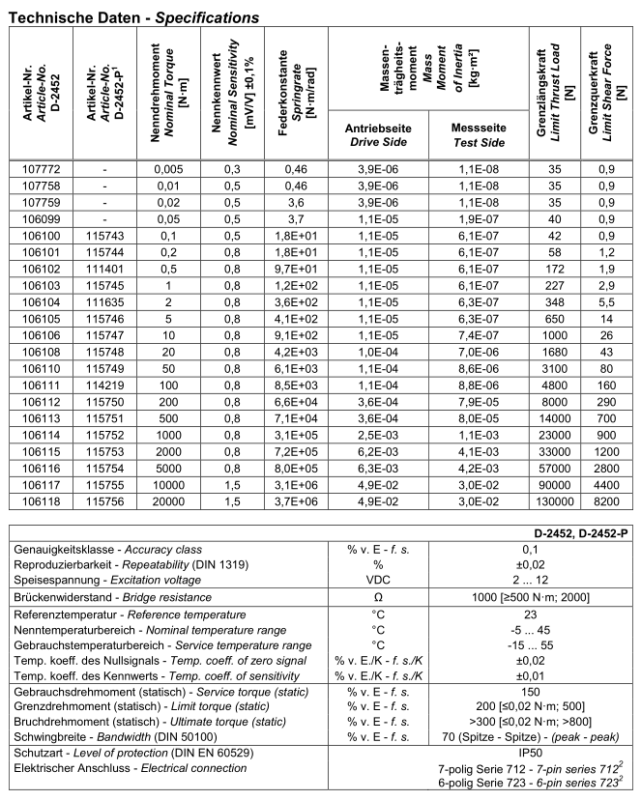

Technical parameters

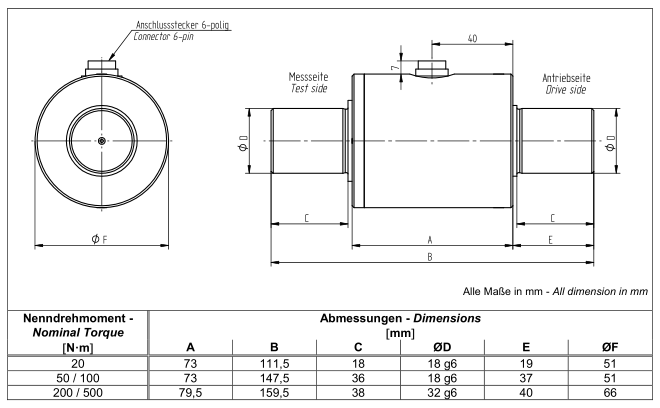

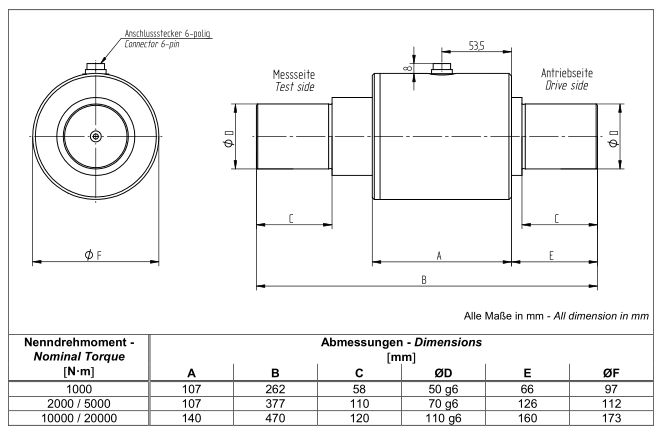

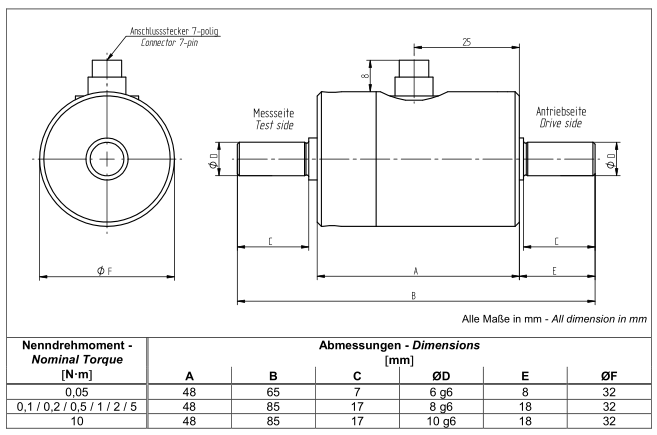

Dimensions
Product description:
Capacity ：0-10N.m
Material: aluminum alloy
Type: torque type
Defend grade: IP65.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
- Range: 0~5000N m
- Output: 1mV/V, 0~±5/10V, 4~20mA optional
- Accuracy: ≤±0.1%F.S
Static Torque Sensor
D 37.6mm*H 50.8mm
Capacity: 1,2,3,5,6,10,20,30,50,100,150N.m
Category: Static Reaction Torque Sensor
1、Static torque sensor is a kind of sensor used to measure the torque of a stationary or slowly rotating object.
2、The flange mounted sensor is connected with a load transfer device, which can output voltage or current signals.
3、Static torque sensors can be used in various industrial fields, such as electric screwdrivers, torque wrenches, wind turbines and so on.
4、Small size, light weight and convenient installation and use.
5、 High detection accuracy, good stability and strong anti-interference ability.
Product description:
Capacity ：0-5-200N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
Product description:
Capacity ：1~10~500N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
Small size, light weight and easy for installation.
Application: suitable for static and non-continuous rotation torque force measurement.
It is suitable for precision control of robot arms, grinding and polishing of curved surfaces, precise carving of machining centers, and precision testing of medical equipment.
Material: Aluminum alloy
Features: Low height
Static Torque Sensor
D 38mm*H 31.8mm
Capacity: 0.1,0.2,0.5,1,2,3, 5,10N.m
Category: Static Reaction Torque Sensor
Flange to flange torque sensor ZMFNJ is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. ZMFNJ can be used in both clockwise and counterclockwise direction ranging from 5Nm up to 10000Nm. The measuring range and dual flange size can be customized to meet customer’s requirements.
Features:
Capacity 5Nm-10000Nm
Static torsion measure
Rational outputs
Nickel plated alloy steel
Optional features
Hermetically sealed available
It is suitable for precision control of robot arms, grinding and polishing of curved surfaces, precise carving of machining centers, and precision testing of medical equipment.
Material: Aluminum alloy
Features: Low height
-
Double flange connection, easy installation
-
Applicable to measure and control of the static, non-continuous rotation torque force value
Product description:
Capacity ：1~10000N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
