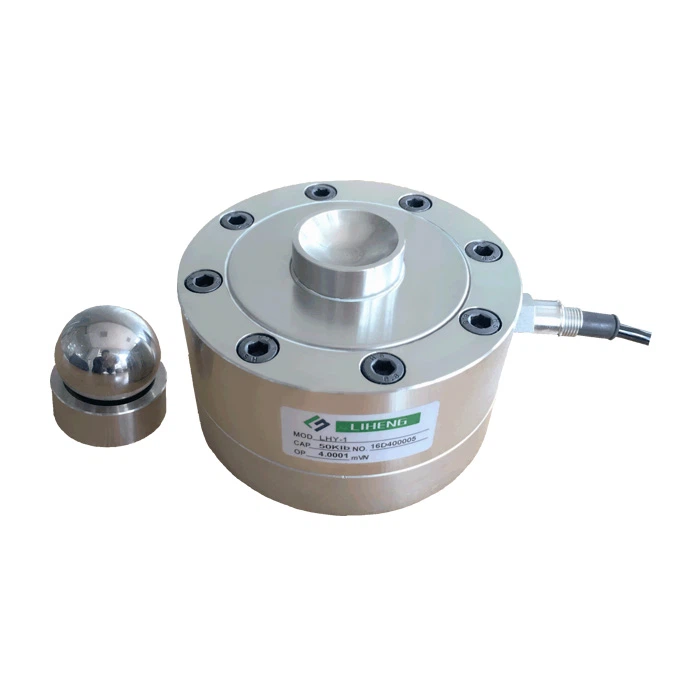

LHY-1 Hopper Load Cells
Product Introduction
| Material: | Alloy, Stainless |
| Capacity: | 50kg-100t,1klb-200klb |
| Rated Output: | 2mV/V, 4mV/V |
| Non Linearity: | ±0.03%F.S. |
| Hysteresis: | ±0.03%F.S. |
| Repeatability: | ±0.02%F.S. |
| Creep (30min): | ±0.02%F.S. |
| Zero Balance: | ±1.00%F.S. |
| Tem.Effect on Zero: | ±0.02%F.S./10℃ |
| Tem.Effect on Output: | ±0.02%F.S./10℃ |
| Input Impendance : | 385±15Ω , 765±15Ω |
| Out Impendance: | 350±3Ω , 700±5Ω |
| Insulation Impendance: | ≥5000MΩ |
| Excitation Voltage: | 10V (DC/AC) |
| Compensated Tem.Range: | -10℃~+50℃ |
| Service Tem.Range: | -20℃~+60℃ |
| Safe Overload Range: | 120%F.S. |
| Protection Class: | IP67 , IP68 |
| Cable length: | 9m |
| Wire Code: | Red(Ex+) Black(Ex-) Green(Sig+) White(Sig-) |
| Capacity | Size mm | N.W. | |||||||||||||
| Klb | t | A | Φ | Φ1 | Φ2 | Φ3 | Φ4 | H | H1 | H2 | H3 | H4 | H5 | SR | kg |
| 1-15 | 0.5-7.5 | 88.9 | 104.7 | 34.0 | 22.2 | 31.8 | 41.0 | 53.8 | 19.0 | 1.0 | 31.8 | 14.0 | 5.0 | 15.9 | 3.8 |
| 25-50 | 10-25 | 101.6 | 120.7 | 38.9 | 38.1 | 31.8 | 43.0 | 77.8 | 24.0 | 1.0 | 41.1 | 19.0 | 8.0 | 22.2 | 7.0 |
| 100 | 50 | 116.8 | 140.0 | 50.4 | 41.3 | 31.8 | 59.0 | 86.2 | 29.0 | 1.0 | 50.8 | 32.0 | 7.8 | 25.0 | 10.0 |
| 150-200 | 60-100 | 162.0 | 200.0 | 76.0 | 76.2 | 50.8 | 98.0 | 125.0 | 42.0 | 1.1 | 70.0 | 55.0 | 13.0 | 45.0 | 25.0 |
