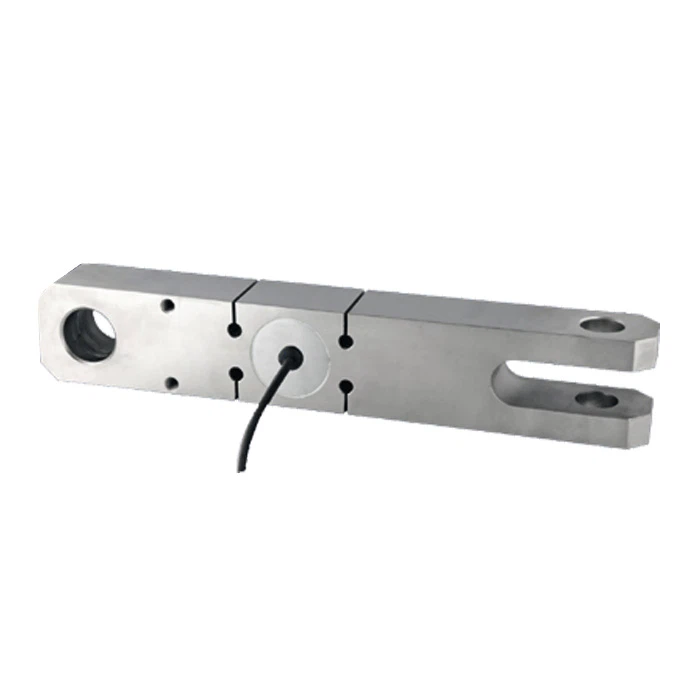

LHT-9 Crane Lifting Tension Load Cell
Product Introduction
| Material: | Alloy |
| Capacity: | 3t-10t |
| Rated Output: | 2mV/V |
| Non Linearity: | ±0.02%F.S. |
| Hysteresis: | ±0.02%F.S. |
| Repeatability: | ±0.01%F.S. |
| Creep (30min): | ±0.02%F.S. |
| Zero Balance: | ±1.00%F.S. |
| Tem.Effect on Zero: | ±0.02%F.S./10℃ |
| Tem.Effect on Output: | ±0.02%F.S./10℃ |
| Input Impendance : | 385±10Ω |
| Out Impendance: | 350±3Ω |
| Insulation Impendance: | ≥5000MΩ |
| Excitation Voltage: | 10V (DC/AC) |
| Compensated Tem.Range: | -10℃~+50℃ |
| Service Tem.Range: | -20℃~+60℃ |
| Safe Overload Range: | 120%F.S. |
| Protection Class: | IP67 |
| Cable length: | 0.5m |
| Wire Code: | Red(Ex+) Black(Ex-) Green(Sig+) White(Sig-) |
| Capacity | Size (mm) | N.W. | ||||||||
| t | A | B | C | D | E | F | G | H | I | kg |
| 3 | 335.0 | 57.0 | 40.0 | 27.5 | 277.0 | 21.5 | 30.0 | 45.0 | 24.0 | 4.0 |
| 5 | 362.0 | 68.0 | 45.0 | 28.0 | 298.5 | 26.0 | 35.0 | 50.0 | 36.0 | 6.0 |
| 10 | 384.0 | 83.0 | 55.0 | 34.5 | 307.5 | 32.4 | 40.0 | 60.0 | 32.0 | 8.0 |
