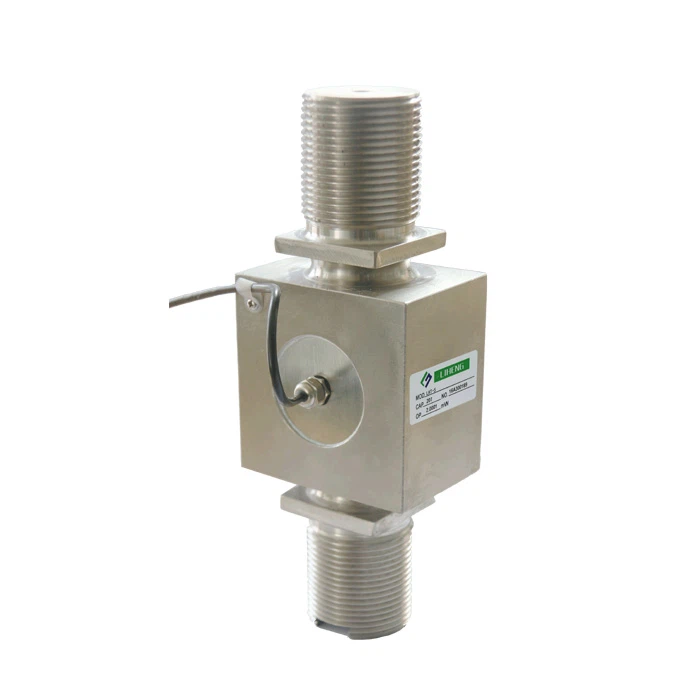

LHT-5 Tension Type Load Cell
| Material: | Alloy |
| Capacity: | 5t-30t |
| Rated Output: | 2mV/V |
| Non Linearity: | ±0.03%F.S. |
| Hysteresis: | ±0.03%F.S. |
| Repeatability: | ±0.01%F.S. |
| Creep (30min): | ±0.02%F.S. |
| Zero Balance: | ±1.00%F.S. |
| Tem.Effect on Zero: | ±0.02%F.S./10℃ |
| Tem.Effect on Output: | ±0.02%F.S./10℃ |
| Input Impendance : | 765±15Ω |
| Out Impendance: | 700±+3Ω |
| Insulation Impendance: | ≥5000MΩ |
| Excitation Voltage: | 10V (DC/AC) |
| Compensated Tem.Range: | -10℃~+50℃ |
| Service Tem.Range: | -20℃~+60℃ |
| Safe Overload Range: | 120%F.S. |
| Protection Class | IP67 |
| Cable length | 0.5m |
| Wire Code | Red(Ex+) Black(Ex-) Green(Sig+) White(Sig-) |
| Capacity | Size (mm) | N.W. | ||||||||
| t | A | B | C | D | E | F | G | H*1 | M | kg |
| 5 | 206.0 | 48.5 | 45.0 | 55.0 | 65.0 | 8.0 | 134.0 | – | M36*3 | 3.0 |
| 10 | 206.0 | 49.0 | 55.0 | 55.0 | 76.0 | 8.0 | 138.0 | 12*8 | M42*3 | 5.0 |
| 20 | 250.0 | 60.0 | 56.0 | 56.0 | 93.0 | 8.0 | 147.0 | 20*6 | M52*3 | 8.5 |
