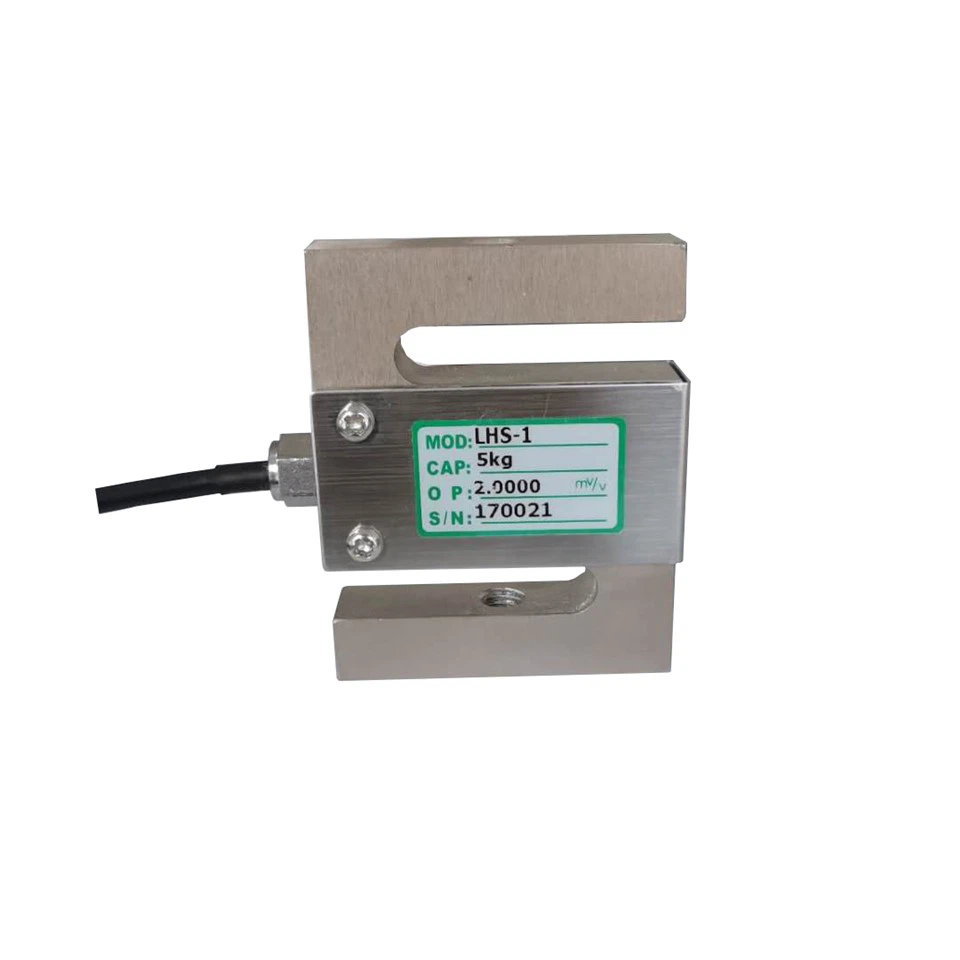

LHS-1 Load Cell Type S
Product Introduction
| Material: | Alloy,Stainless |
| Capacity | 5kg 20t |
| Rated Output: | 2mV/V, 3mV/V |
| Non Linearity: | ±0.02%F.S. |
| Hysteresis: | ±0.02%F.S. |
| Repeatability: | ±0.01%F.S. |
| Creep (30min): | ±0.02%F.S. |
| Zero Balance: | ±1.00%F.S. |
| Tem.Effect on Zero: | ±0.02%F.S./10℃ |
| Tem.Effect on Output: | ±0.02%F.S./10℃ |
| Input Impendance : | 385±10Ω |
| Out Impendance: | 350±3Ω |
| Insulation Impendance: | ≥5000MΩ |
| Excitation Voltage: | 10V (DC/AC) |
| Compensated Tem.Range: | -10℃~+50℃ |
| Service Tem.Range: | -20℃~+60℃ |
| Safe Overload Range: | 120%F.S. |
| Protection Class: | IP67 , IP68 |
| Cable length: | 5m |
| Wire Code: | Red(Ex+) Black(Ex-) Green(Sig+) White(Sig-) |
| Capacity | Size mm | Thread | N.W. | ||||
| Klb | Kg | A | B | C | Metric | Inch | kg |
| 0.025-0.15 | 5-50 | 51.0 | 13.0 | 64.0 | M8*1.25 | 1/4-28 | 0.5 |
| 0.2-1.5 | 100-500 | 51.0 | 19.1 | 76.0 | M12*1.75 | 1/2-20 | 0.5 |
| 2-4 | 1t-2t | 54.0 | 25.4 | 76.0 | M12*1.75 | 1/2-20 | 0.8 |
| 5-10 | 2.5t-5t | 76.0 | 25.4 | 108.0 | M18*1.5 | 3/4-16 | 1.6 |
| 15 | 7.5t | 100.0 | 32.0 | 140.0 | M24*2 | 1-14 | 3.0 |
| 20 | 10t | 126.0 | 50.0 | 178.0 | M30*2 | 1-12 | 7.0 |
| 30-40 | 15t-20t | 140.0 | 60.0 | 188.0 | M39*2 | 1-12 | 12.0 |
