Based on LCT advanced metal foil strain gauge technology,single-ended shear beam load cells are made in low profile.Theses load cells are of good side load resistance and relatively insensitive to the point of loading. Advantages of LCT Single-ended shear beam load cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),one unit or 4-matched units to build up a scale.With LCT leading technology in laser welding,shear beam load cells can be made to a higher protection grade of IP67.

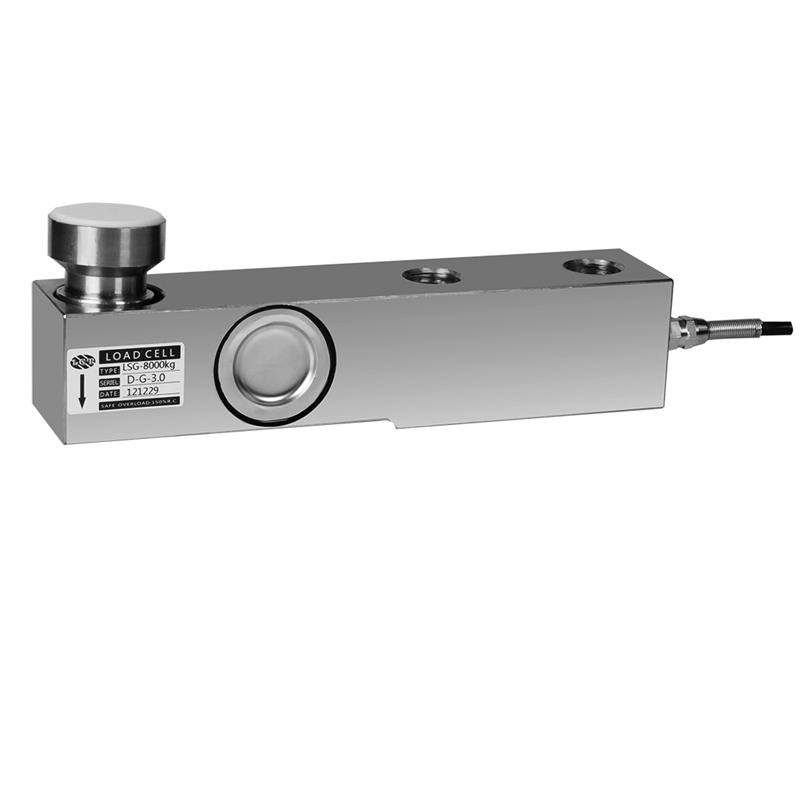

Model LSG-D load cells are designed to this “Single-ended shear beam” type and manufactured from high quality alloy steel of aviation standard. LSG-D load cells can be used to measure loads range from 5000kg to 8000kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output) and 2mV/V output signal.
LSG-D load cells are mainly used for tank and hopper scales weighing systems,platform scales and floor scales.

Add to Wishlist
Share it:

Model: LSG-D

Capacity: 5000,8000 kg

Usage: floor scale load cells,truck scale sensor

Dimension: 52*47.8*235mm

Features

  • Single-ended shear beam
  • capacity:5000kg,…,8000kg
  • accuracy:0.03%R.O.
  • alloy steel construction with nickel plated treatment
  • output adjustment for parallel using
  • environment protection class:IP67
  • available accessories(option):load foot & pressure head

Applications

  • tank and hopper scales
  • floor scales
  • platform scales

Dimension



Electrical Connection

Technical Data

Rated Capacity 5000, 8000 (kg)
Accuracy Class B
Rated Output (2.0-3.0) ± 0.25 %mV/V
Zero Balance ±2%R.O.
Input Resistance 385±10Ω
Output Resistance 350±3Ω
Linearlty Error ±0.03%R.O.
Repeatability Error ±0.03%R.O.
Hysteresis Error ±0.03%R.O.
 Creep in 30 Min. ±0.03%R.O.
Temp.Effect on Output ±0.03%R.O./10℃
Temp.Effect on Zero ±0.05%R.O./10℃
Compensated Temp.Range -10－+40℃
Excitation,Recommended 5－12VDC
Excitation,Maximum 18VDC
Operating Temp.Range -20－+60℃
Safe Overload 150%R.C.
Ultimate Overload 200%R.C.
Insulation Resistance ≥2000MΩ(50VDC)
Cable,Length ø6mm× 8m *
Protection Class IP67
