LCT / LAE-Q-A / 싱글 포인트 로드셀

LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAE-Q-A load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAE-Q-A load cells can be used to measure loads range from 10kg to 100kg with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)
LAE-Q-A load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales,bench scales,platform scales and packing machinerys.

Add to Wishlist
Share it:

Model: LAE-Q-A

Capacity: 10,20,50,100 (kg)

Usage: Mainly used for price computing scales,counting scales, packing machinerys etc.

Dimension: 118*30*63MM

Features

  • parellel bending beam
  • capacity:10kg,…,100kg
  • accuracy:0.02%R.O.
  • connection with 6-wire shielded cable
  • with humidity resistant protective coating
  • recommended platform size:250*250MM
  • aluminum construction with surface anodized
  • environment protection class:IP66

Applications

  • price computing scales
  • counting scales
  • weighing scales
  • retail scales
  • bench scales
  • platform scales
  • packing machinerys

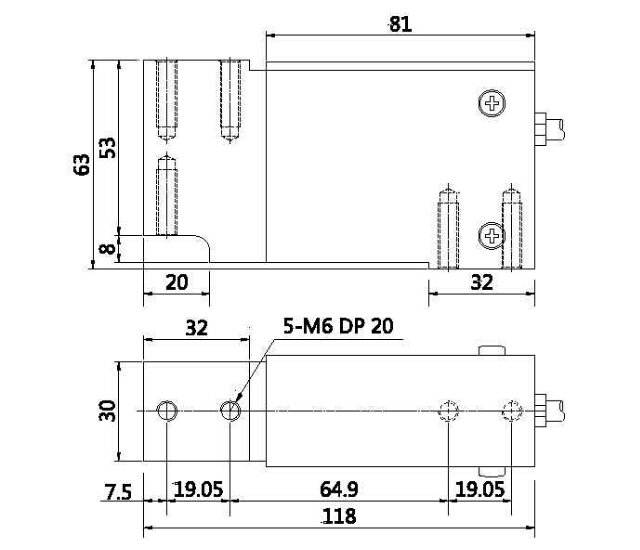

Dimension

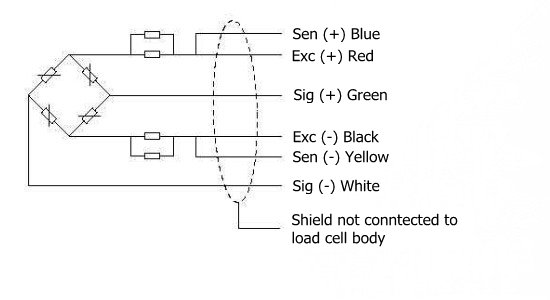

Electrical Connection

Technical Data
