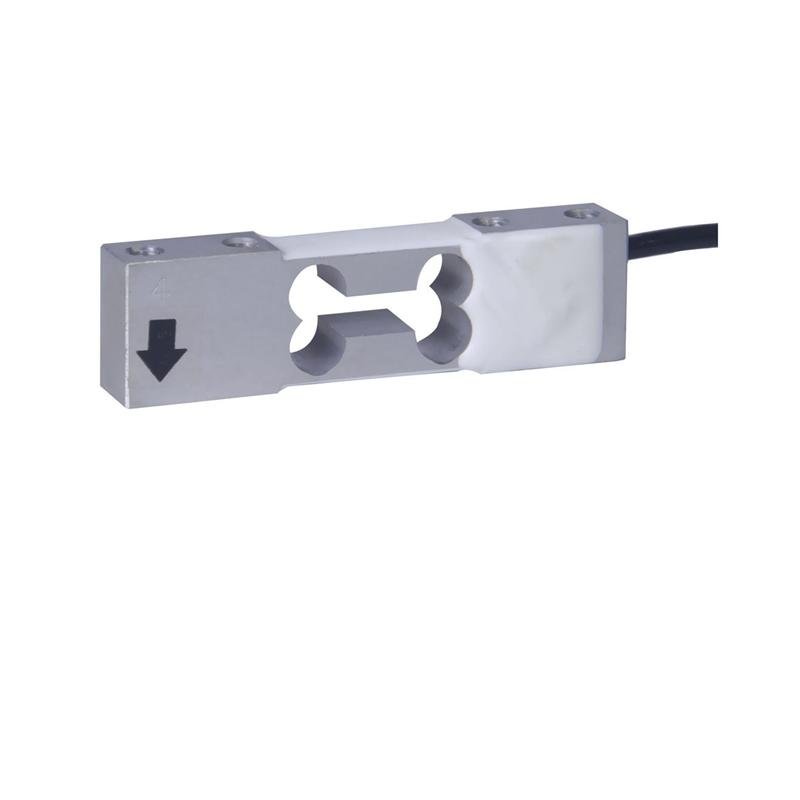

Model: LAC-A2
Capacity: 1.5,2,3,6(kg)
Usage: Used for electronic balance,counting scales,retail scales,jewellery scales,kitchen scales
Dimension: 80*22*12mm
Features
- parellel bending beam
- capacity:1.5kg,…,6kg
- accuracy:0.03%R.O.
- Micro struture
- recommended platform size:150*150MM
- aluminum construction with surface anodized
- environment protection class:IP65
Applications
- electronic balance
- counting scales
- weighing scales
- retail scales
- jewellery scales
- kitchen scales
- coffee machine
- packing machine

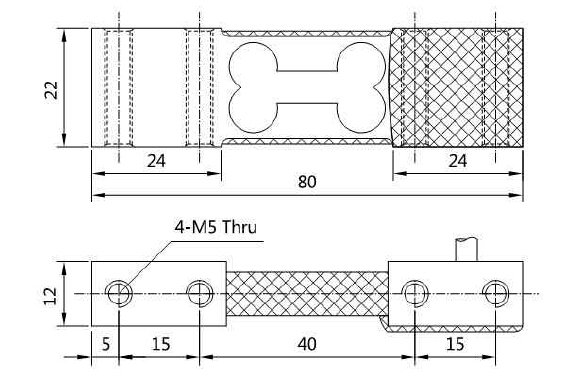

Dimension
Electrical Connection
Technical Data
| Rated Capacity | 1.5, 2, 3, 6(kg) |
| Accuracy Class | V |
| Rated Output | 2.0±10%mV/V |
| Zero Balance | ±5%R.O. |
| Input Resistance | 1130±20Ω |
| Output Resistance | 1000±10Ω |
| Linearlty Error | ±0.02%R.O. |
| Repeatability Error | ±0.015%R.O. |
| Hysteresis Error | ±0.015%R.O. |
| Creep in 2 Min. | ±0.015%R.O. |
| Creep in 30 Min. | ±0.03% R.O. |
| Temp.Effect on Output | ±0.05%R.O./10℃ |
| Temp.Effect on Zero | ±2%R.O./10℃ |
| Compensated Temp. Range | 0－+40℃ |
| Excitation,Recommended | 5－12VDC |
| Excitation,Maximum | 18VDC |
| Operating Temp.Range | -10－+40℃ |
| Safe Overload | 150%R.C. |
| Ultimate Overload | 200%R.C. |
| Insulation Resistance | ≥2000MΩ(50VDC) |
| Cable,Length | ø4mm×0.2m * |
| Protection Class | IP65 |
