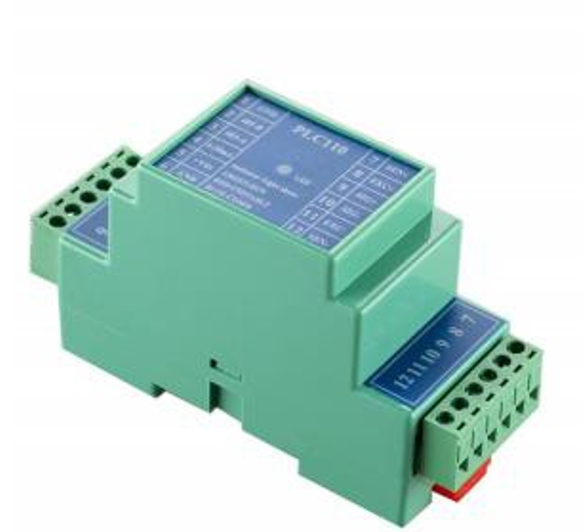

PLC110 Weighing display transmitter
Features
- Small size, beautiful shape, convenient and applicable
- Digital filtering function
- 4-20mA analog output
- DIN rail installation
- Bidirectional isolation serial port function
- RS 485 communication interface, convenient for communication with the host computer
Applications
Applicable to all resistance strain type weighing sensors
| Specification | |
| Power supply | DC12-24V |
| Operating temperature | -10℃~40℃ |
| Power consumption | 10W |
| Sensor power supply | DC5V 200mA(MAX) |
| Input zero sensitivity | 0.1uV/d |
| A/D conversion method | Σ-Δ |
| Output | RS485 |
Product specifications are subject to change without notice.
