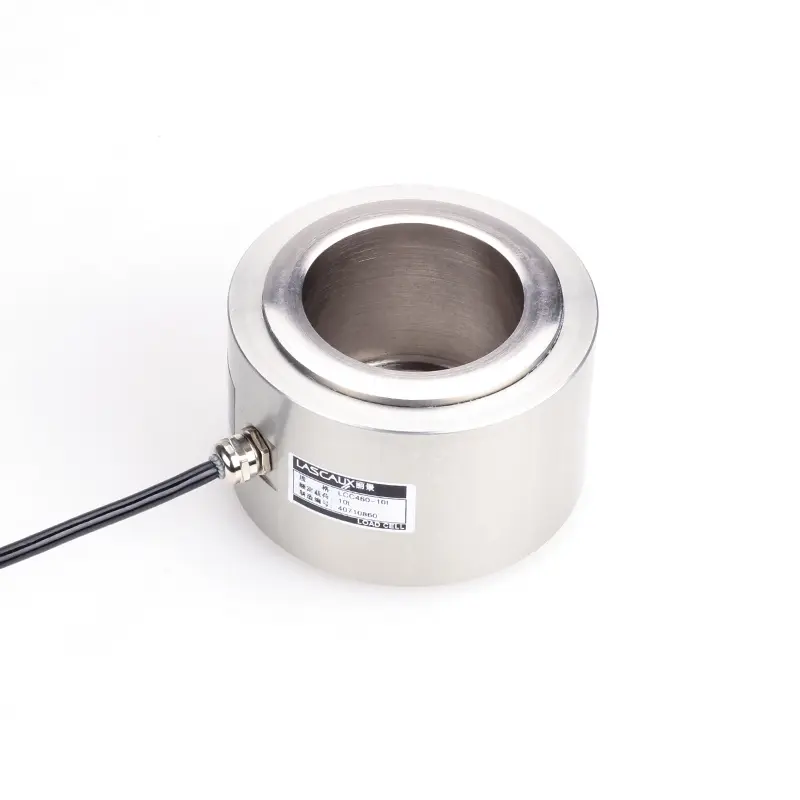

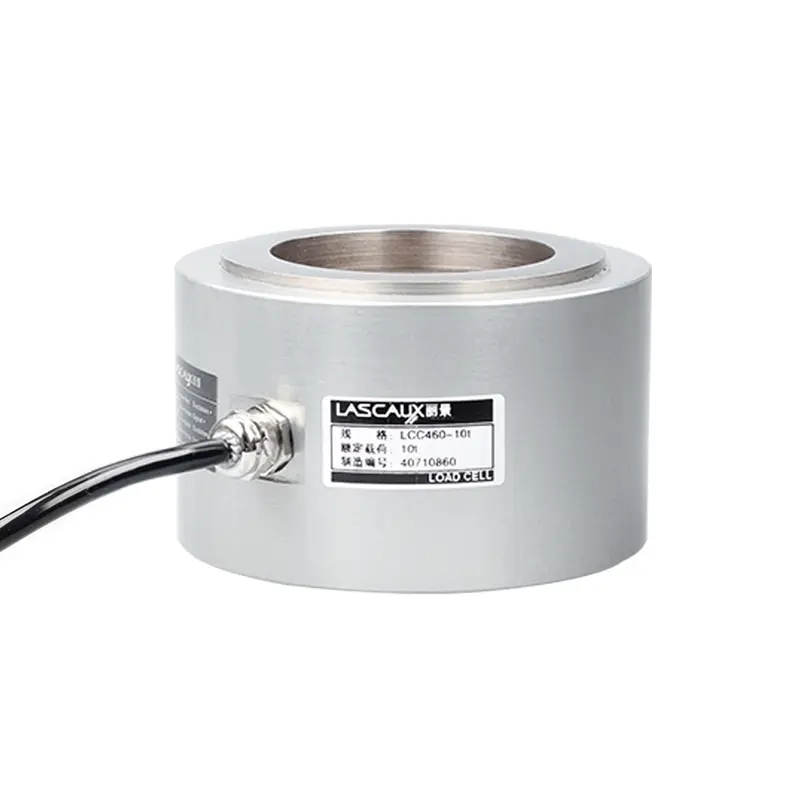

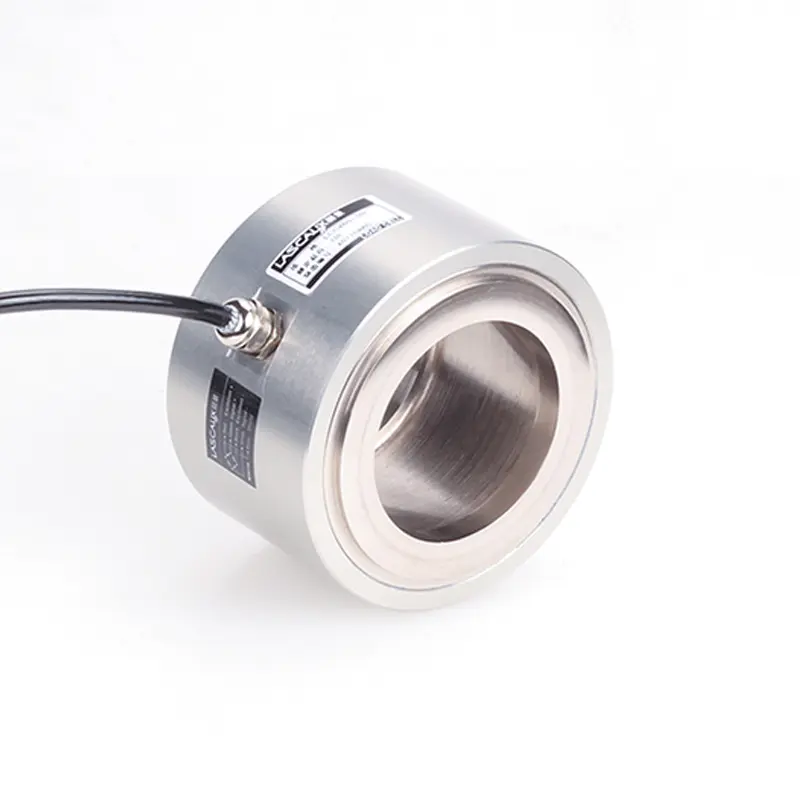

Features
- 용량：5~300T
- 재질 : Stainless steel material, Seal by welding
- 타입 : Through Hole Type
- 보호등급 : IP67/IP68
- 적용분야 : 힘 제어 및 측정

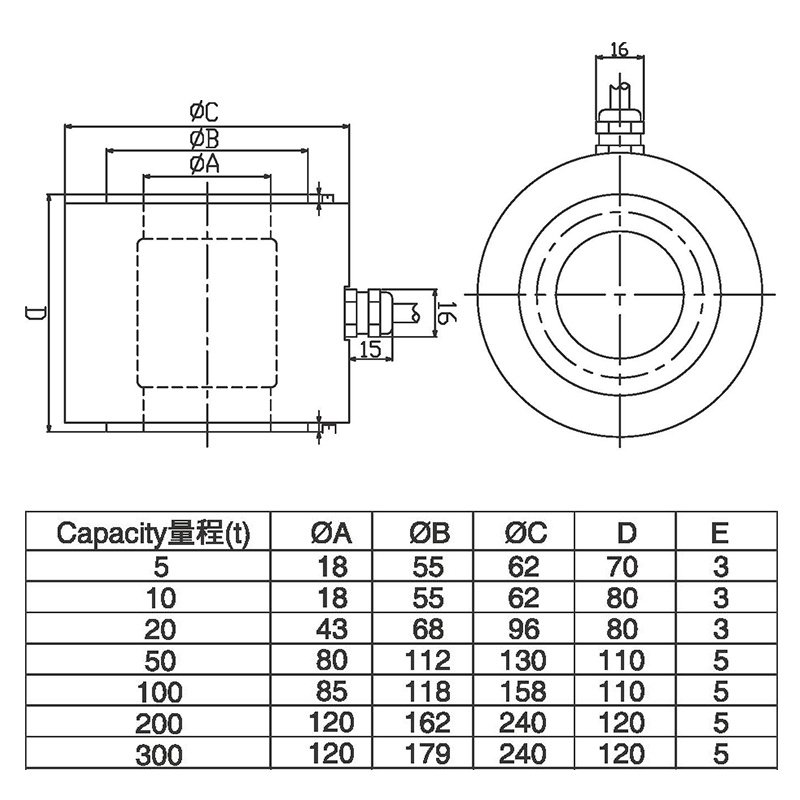

Dimensions
Specifications
Specification | |||
Rated Load | 100,200,500 | kg | |
1,2,5,10,20,30,50,100,200 | t | ||
Rated Output | 2.0±0.2 | mV/V | |
Zero Balance | ±1 | %R.O. | |
Comprehensive Error | ±0.02 | %R.O. | |
Creep after 30 minutes | ±0.05 | %R.O. | |
Compensated Temperature Range | -10~+40 | ℃ | |
Operating Temperature Range | -20~+70 | ℃ | |
Temp of effect/10℃ on output | ±0.02 | %R.O./10℃ | |
Temp of effect/10℃ on zero | ±0.02 | %R.O./10℃ | |
Recommended Excitation Voltage | 5-12 | VDC | |
Input impedance | 770±10 | Ω | |
Output impedance | 700±5 | Ω | |
Insulation resistance | =5000(50VDC) | MΩ | |
Safe Overload | 150 | %R.C. | |
UItimate Overload | 300 | %R.C. | |
Matenial | Alloy Steel/Stainless Steel | ||
Degree of protection | IP67/IP68 |
