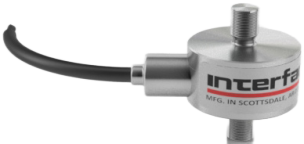

WMC Ultra-Small Steel Body
Technical parameters
| Category | Parameter | Value / Unit |
|---|---|---|
| Capacity | Range — lbf | 5, 10, 25, 50, 100, 250, 500 |
| Accuracy Class | ( MAX ERROR ) | |
| Non-linearity | ± 0.15 %FS | |
| Hysteresis | ± 0.15 %FS | |
| Repeatability | ± 0.05 %RO | |
| Creep (20 min) | ± 0.05 % | |
| Temperature | ||
| Compensated Temp. Range | -10 to 45 °C | |
| Operating Temp. Range | -54 to 121 °C | |
| Temp. Effect on Zero (Max) | ± 0.005 %RO/°C | |
| Temp. Effect on Sensitivity (Max) | ± 0.002 %RO/°C | |
| Electrical | ||
| Rated Output (Sensitivity) | 2.0 mV/V | |
| Excitation Voltage | 12.0 VDC MAX | |
| Output Resistance | 350 Ohm | |
| Zero Balance (Output) | ± 2.0 %RO | |
| Insulation Resistance | > 5000 Megohm | |
| Mechanical | ||
| Calibration Mode | Tension (Pull) | |
| Safe Overload | 150 %CAP | |
| Cable Length | 1.5 m |
Dimensions
