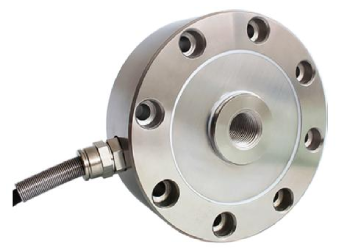

LPS-P Spoke Force Sensor
Technical parameters
| Output Sensitivity | 2.0 ± 10% | mV / V |
| Zero Output | ≤ ± 1 | % F.S. |
| Nonlinearity | ≤ 0.1 | % F.S. |
| Hysteresis | ≤ 0.1 | % F.S. |
| Repeatability | ≤ 0.1 | % F.S. |
| Creep (30min) | 0.03 | % F.S. |
| Temp. Effect on Sensitivity | 0.03 | % F.S. / 10°C |
| Temp. Effect on Zero | 0.03 | % F.S. / 10°C |
| Input Resistance | 750 ± 10 | Ω |
| Output Resistance | 700 ± 5 | Ω |
| Insulation Resistance | ≥ 5000 | MΩ/100VDC |
| Excitation Voltage | 5-10 | V |
| Max. Excitation Voltage | 10 | V |
| Compensated Temp. Range | -10 ~ 60 | °C |
| Operating Temp. Range | -10 ~ 80 | °C |
| Safe Overload | 150 | % |
| Ultimate Overload | 200 | % |
| Cable Size | φ5 x 3m | |
| Cable Connection | Excitation+ (Exc+): Red | |
| Excitation- (Exc-): Black | ||
| Signal+ (Out+): Green | ||
| Signal- (Out-): White | ||
Dimensions
