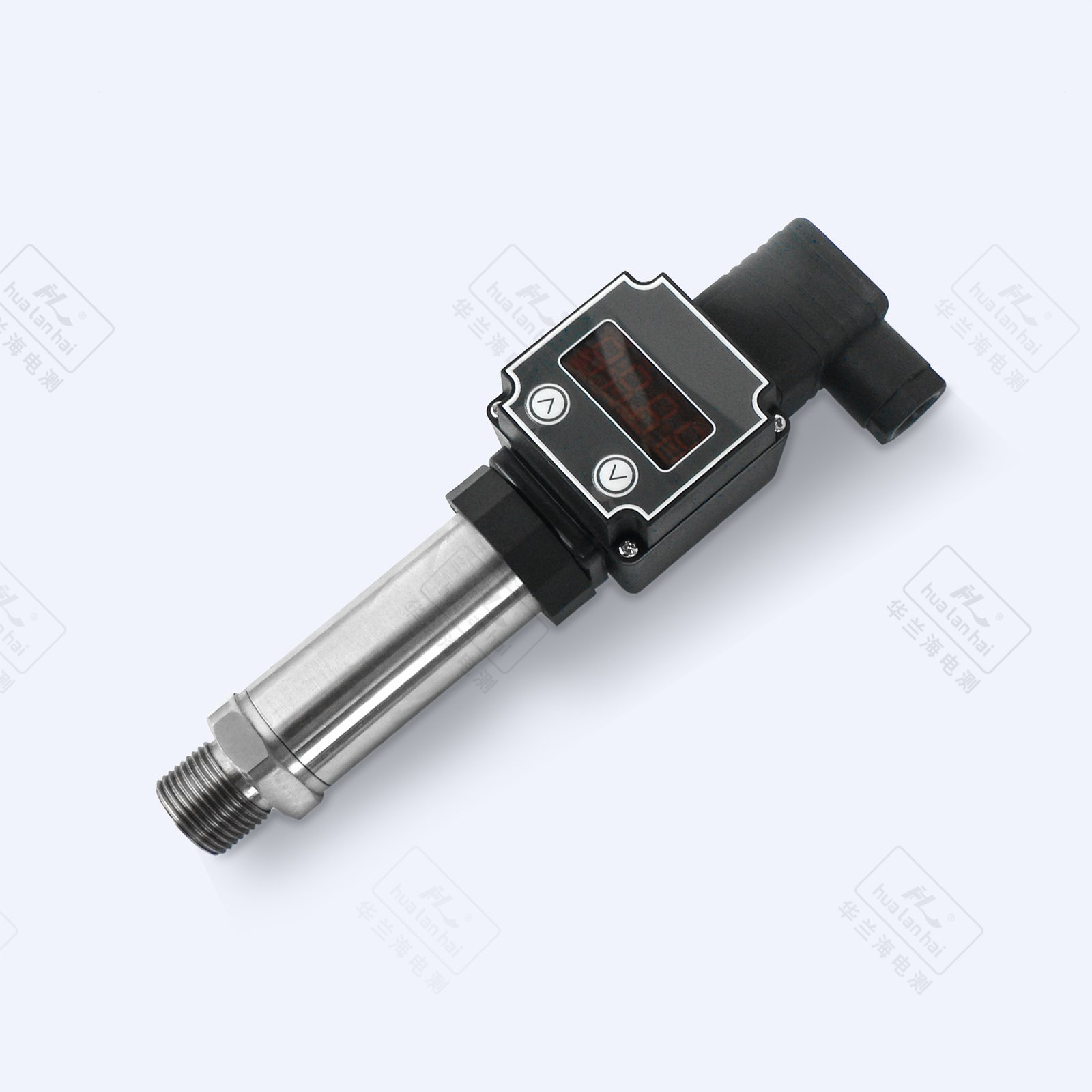

Model: PT505
Use: 급수 압력 측정, 차량 제동 측정, 산업 장비 압력 측정, 공압 제어 시스템 측정, 배관 내 압력 측정, 내연기관 가스 압력 측정

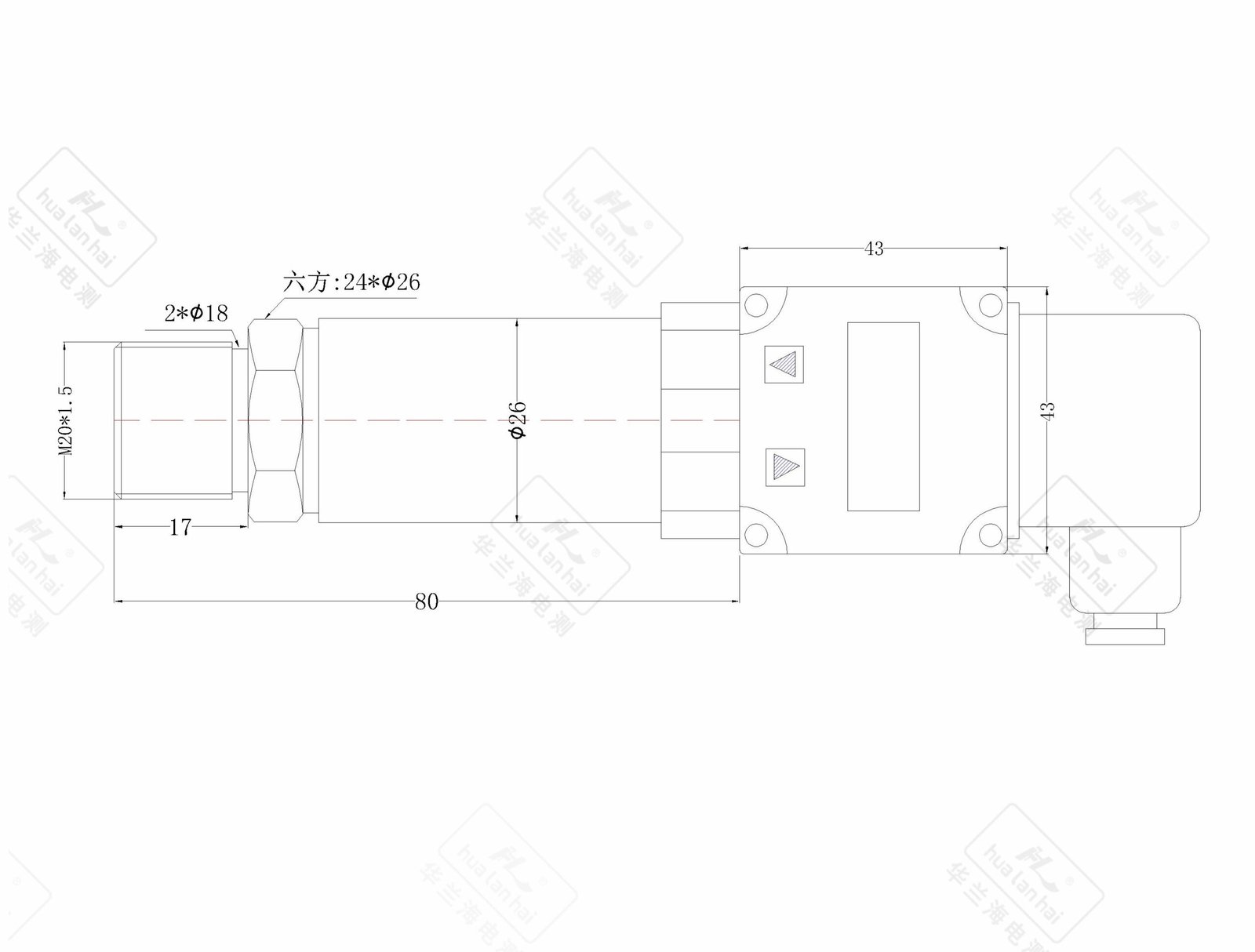

Structural diagram
parameter
| Presusure Range | 0-6MPa ~ 0-150MPa |
| Accuracy | 0.3% FS ; 0.5% FS |
| Output Signal | 1mV/V ; 2mV/V ; 3mV/V ; 3.3mV/V |
| Excitation Voltage | 10(6 ~ 12) VDC |
| Thread Connection | M14*1.5 ; M20*1.5 ; Customize |
| Use Temp Range | -10℃ ~ 80℃ |
| Signal extraction | Four core connector or tightening nut |
| Defend Grade | IP65 |
| Safe Overload | 120% |
| Ultimate Overload | 150% |
A646B Load Cell are well-crafted, beautiful in appearance, and have both excellent performance and excellent quality. Once they are on the market, they have quickly been loved and sought after by the majority of customers.
LD360은 공정 계량 분야를 위해 설계된 산업용 컨트롤러로, 자동화 통신 및 계량 기능을 통합한 고성능 장비입니다. 사용자 친화적인 인터페이스와 풍부한 표시 정보, 간단한 조작, 뛰어난 안정성을 바탕으로 다양한 산업 환경에서의 멀티 저울 시스템 구성에 적합합니다.
PLC, 디지털 입출력, 아날로그 제어, 다양한 필드버스 및 이더넷 통신을 폭넓게 지원하여 공정 자동화 및 네트워크 계량 시스템에 최적화된 솔루션을 제공합니다.
1. Available in capacities from 0 to 20,000 lbs and 0 to 10,000 kg
2. Alloy steel, sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments.
3. S beam design, tension and/or compression loading possible, easy installation, suitable for crane scale, mechanical conversion scale, hopper scale and other electronic weighing devices.
4. Provided with a certificate of conformance and full-scale calibration.
KWT1D52 is a tension-compression bowl-type load cell, suitable for high-speed response measurement. The sensor adopts built-in bending moment compensation, even in the process of using bending moment or lateral force , the test results can be obtained reliably. Since this is a sensor based on the strain principle, static and dynamic measurements are possible.
