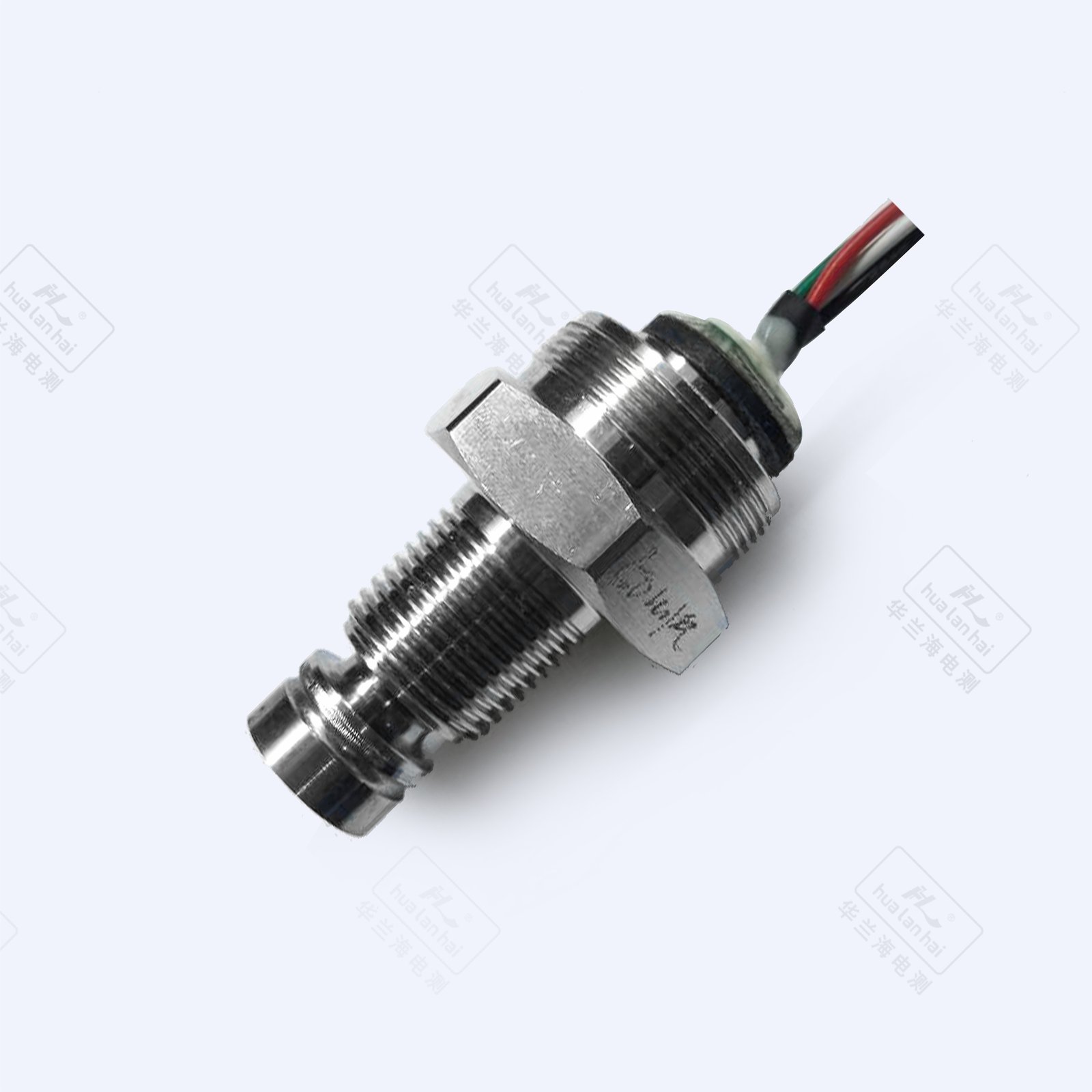

Model: PT316
Use: 압력 측정, 트랜스미터 어셈블리

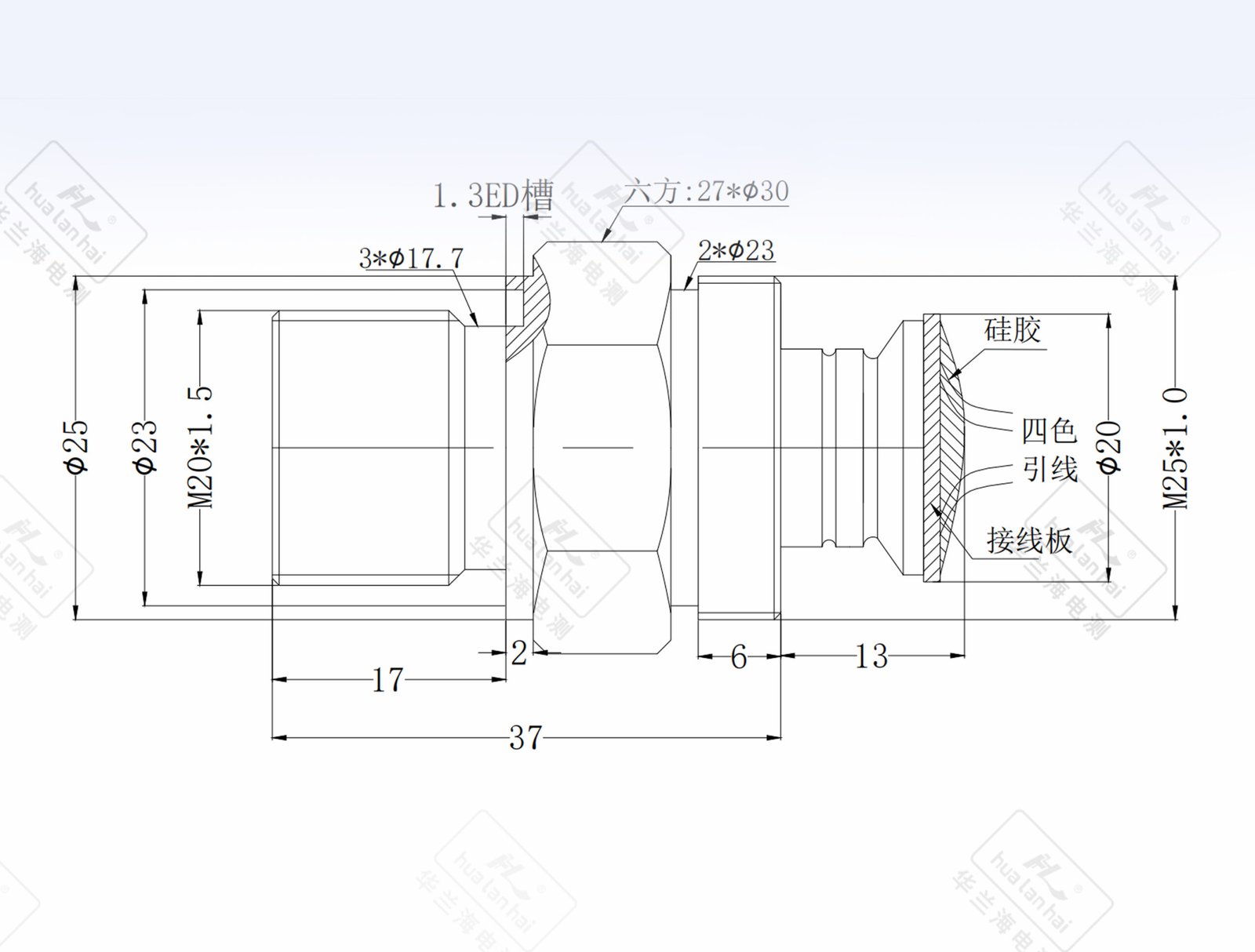

Structural diagram
parameter
|
Presusure Range |
60MPa |
|
Output Signal |
1~2mV/V |
|
Excitation Voltage |
10VDC |
|
Use Temp Range |
-20℃ ~ 80℃ |
|
Thread Connection |
M20*1.5/M25*1.0 |
|
Safe Overload |
120% |
|
Insulation resistance |
≥2000MΩ |
1. Available in capacities from 0 to 20,000 lbs and 0 to 10,000 kg
2. Alloy steel, sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments.
3. S beam design, tension and/or compression loading possible, easy installation, suitable for crane scale, mechanical conversion scale, hopper scale and other electronic weighing devices.
4. Provided with a certificate of conformance and full-scale calibration.
A646B Load Cell are well-crafted, beautiful in appearance, and have both excellent performance and excellent quality. Once they are on the market, they have quickly been loved and sought after by the majority of customers.
KWT1D52 is a tension-compression bowl-type load cell, suitable for high-speed response measurement. The sensor adopts built-in bending moment compensation, even in the process of using bending moment or lateral force , the test results can be obtained reliably. Since this is a sensor based on the strain principle, static and dynamic measurements are possible.
S type load cell can bear both tension and pressure, with good output symmetry, high accuracy, compact structure and complete specifications. Strain gauge load cell can be applied for batching scale, electronic-mechanical scale, crane scales and other force value measurement and control.
