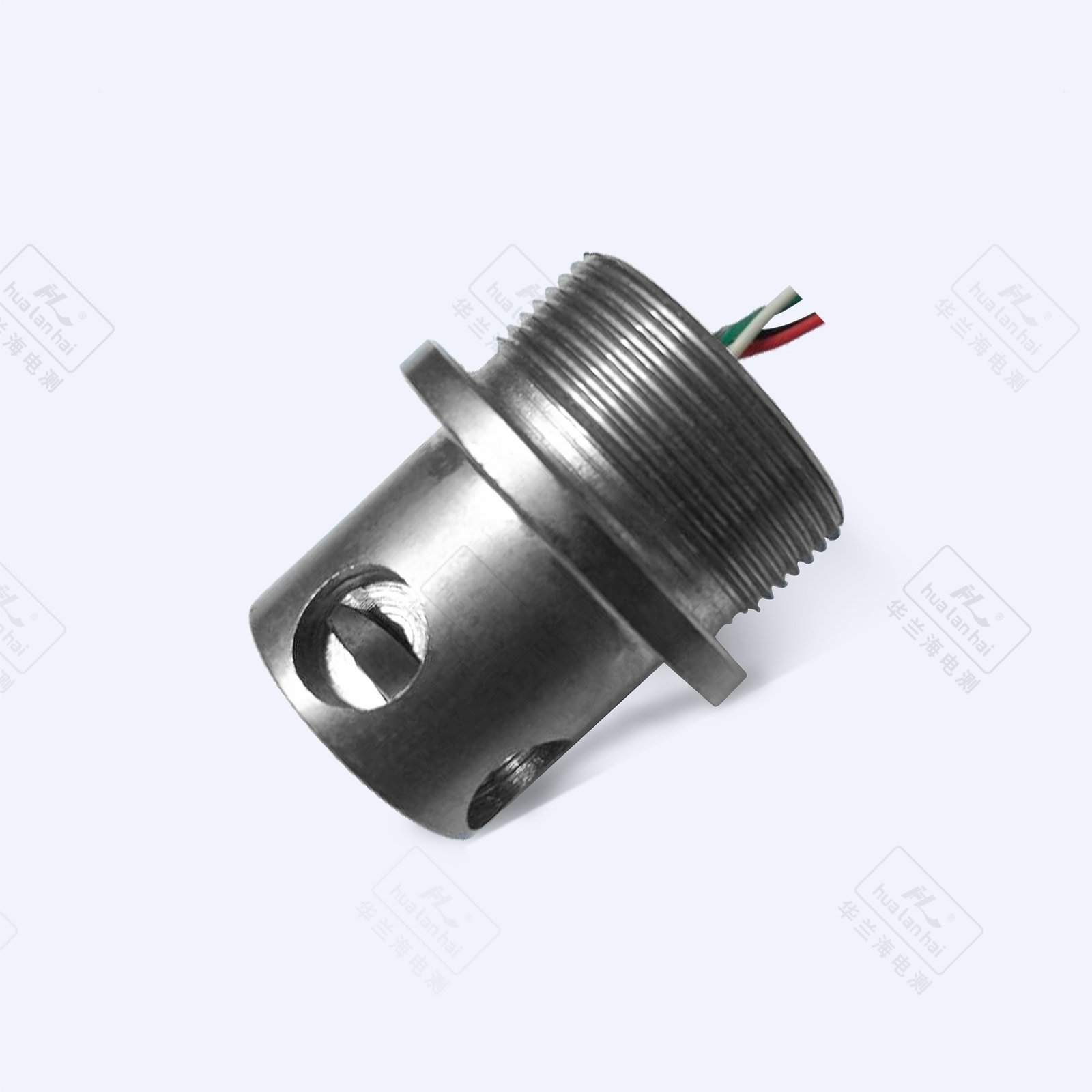

Model: PT303L
Use: 압력 측정, 트랜스미터 어셈블리

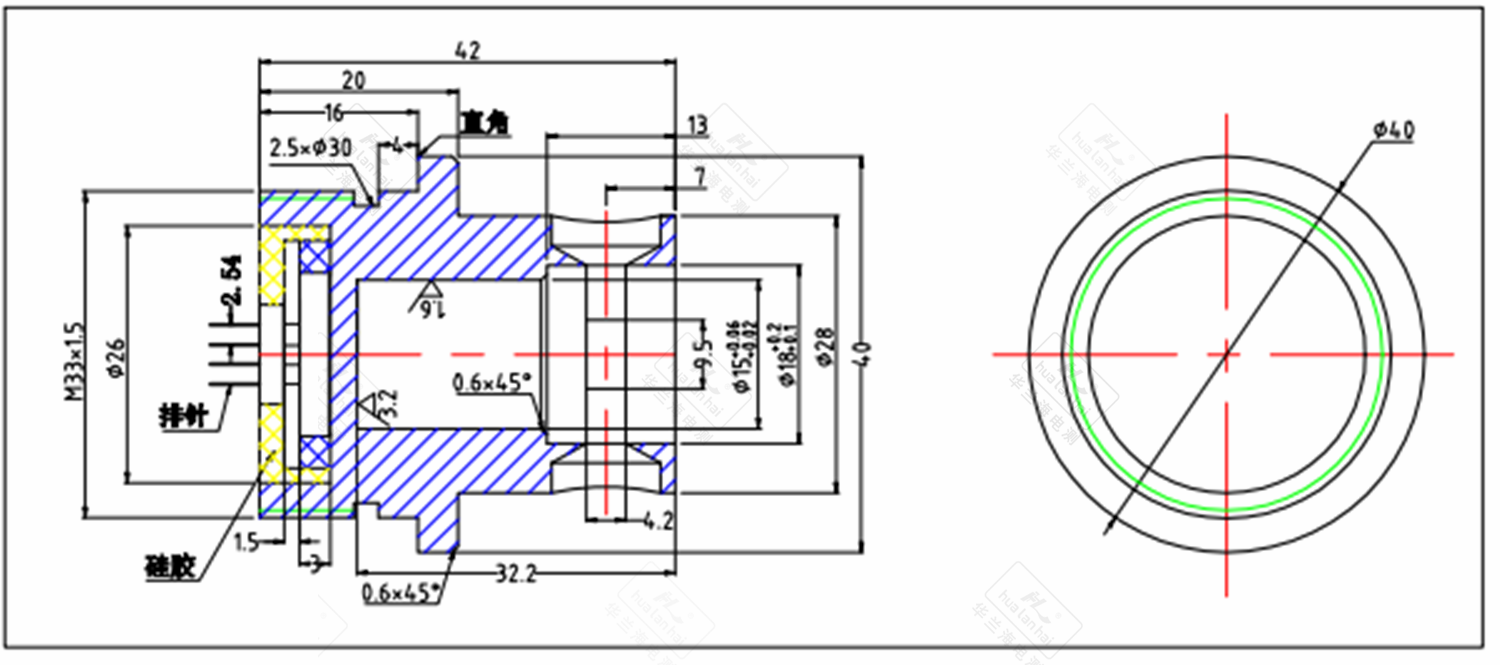

Structural diagram
parameter
|
Presusure Range |
0-10MPa ~ 0-150MPa |
|
Accuracy |
0.5% FS ; 1.0% FS |
|
Output Signal |
1mV/V ; 2mV/V ; 3mV/V |
|
Excitation Voltage |
10(6VDC ~ 12VDC) |
|
Electric Connection |
四色排线/4-Color Wires |
|
Use Temp Range |
-10℃ ~ 80℃ |
|
Thread Connection |
M33*1.5 |
|
Long-term stability |
——- |
|
Safe Overload |
120% |
|
Ultimate Overload |
150% |
1. Available in capacities from 0 to 20,000 lbs and 0 to 10,000 kg
2. Alloy steel, sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments.
3. S beam design, tension and/or compression loading possible, easy installation, suitable for crane scale, mechanical conversion scale, hopper scale and other electronic weighing devices.
4. Provided with a certificate of conformance and full-scale calibration.
