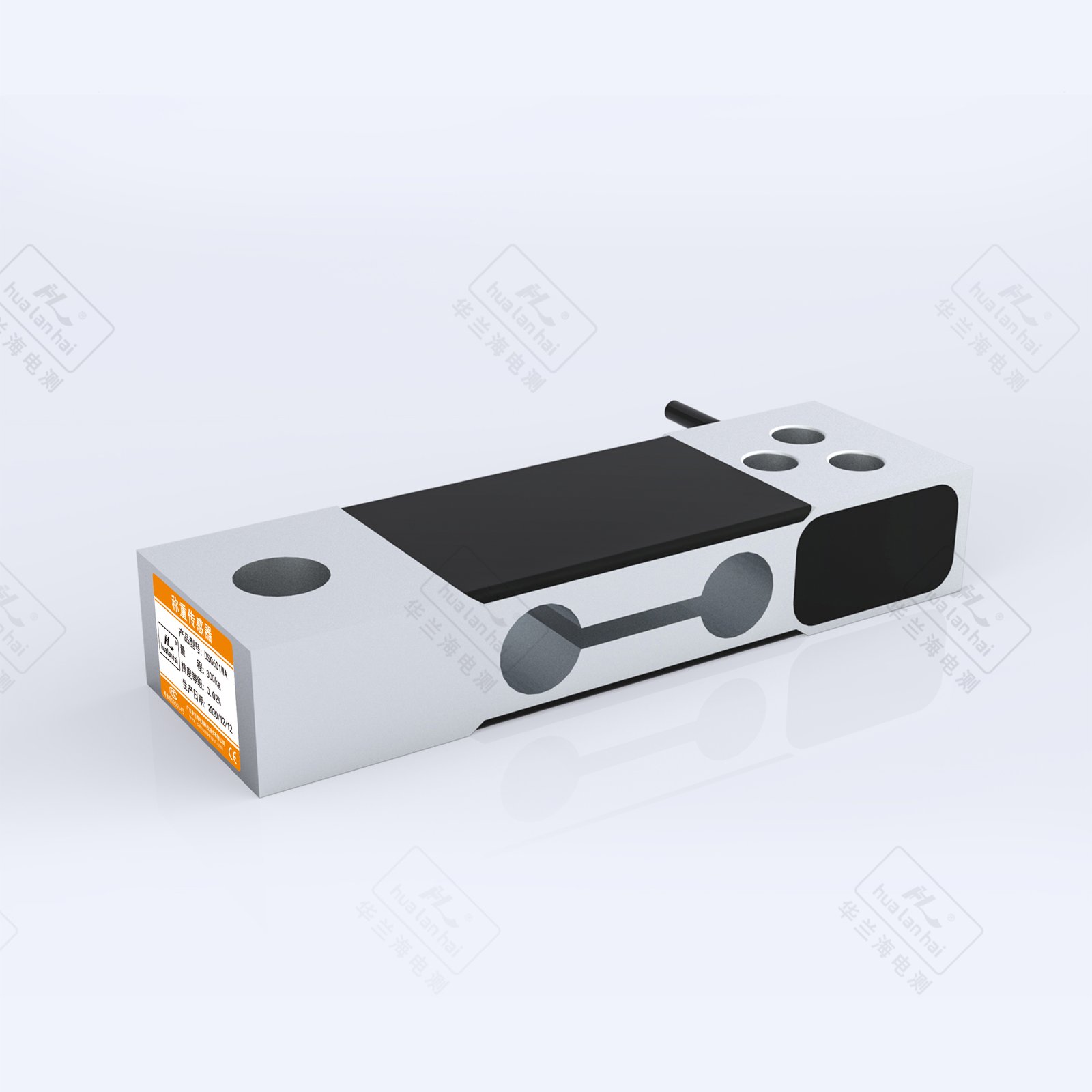

Model: DSG601WA
Use: Count the scales, Tea machine, Industrial weighting
Structural diagram
parameter
| Rated load | 20kg ～ 200kg |
| Precision | C2/C3 |
| Composition error | ±0.03 & ±0.02% FS |
| Creep | ±0.023 & ±0.016% FS/30min |
| Temp.effect on span | ±0.025 & ±0.017% FS/10℃ |
| Temp.effect on zero | ±0.029 & ±0.019% FS/10℃ |
| Insulation resistance | ≥5000 MΩ(100VDC) |
| Output signal | RS485/RS232 |
| Baud rate | 19200 |
| Digital protocol | http://sz.hong-meng.com/doc-v15.html |
| Compensated temp.range | -10℃ ~ +40 ℃ |
| Use temp.range | -20℃ ~ +60 ℃ |
| Excitation voltage | 5VDC ~ 12VDC |
| Safe overload | 120% |
| Ultimate overload | 150% |
| Recommended platform size | 600*600mm |
| Defend grade | IP67 |
| External dimension of sensor | 130*40*22 |
| Mounting hole size | M16+3-Φ9 |
| Location of mounting hole | X12 Y7.5 15 |
