Model: DS110E-JK
Use: 전자식 플랫폼 저울, 전자식 트럭 저울, 지능형 사물인터넷(IoT) 시스템, 산업 장비 재하중(힘) 측정 시스템

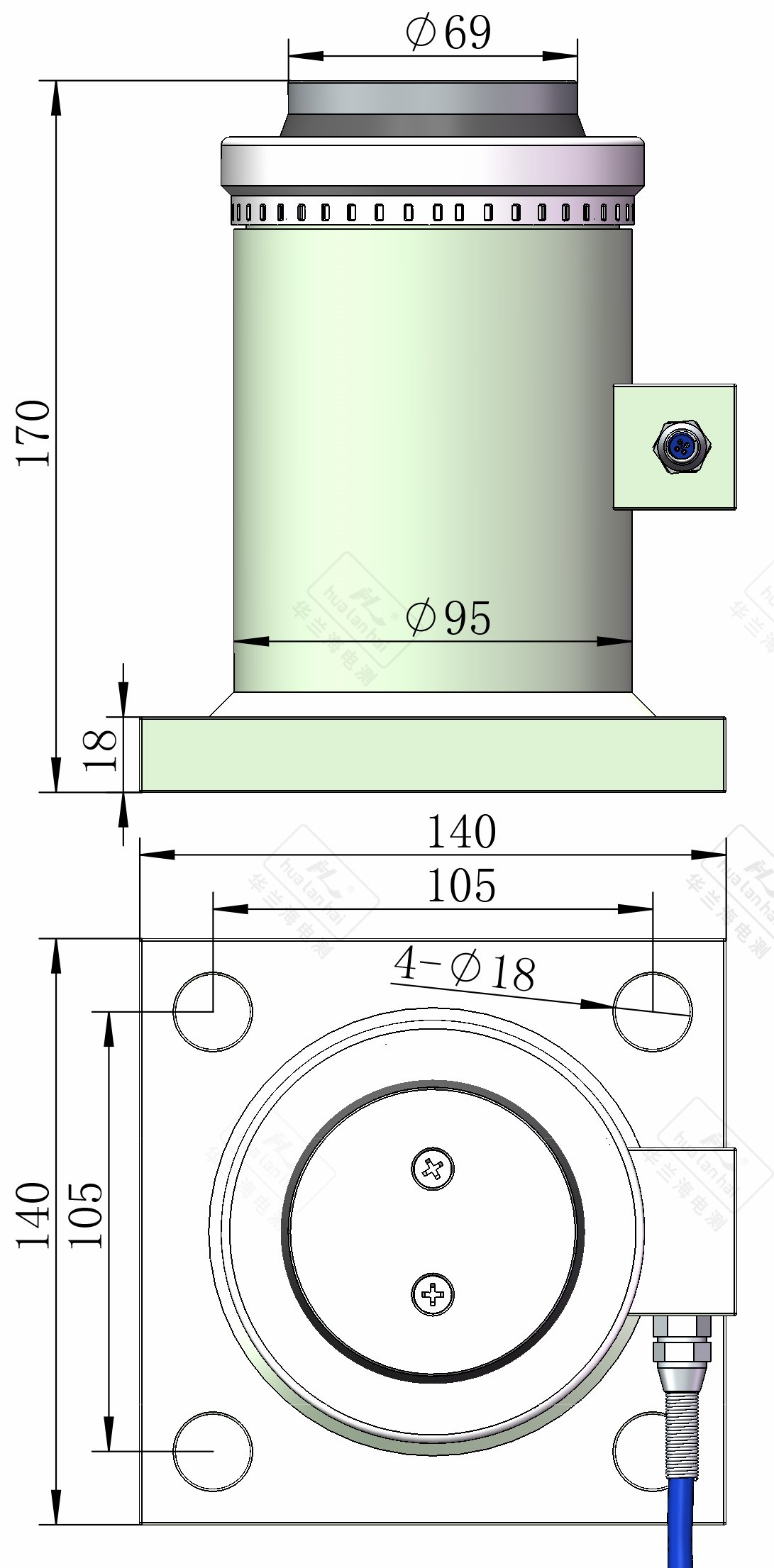

Structural diagram
parameter
|
Rated load |
10t/20t/30t/40t |
|
Accuracy class |
C2/C3 |
|
Composition error |
±0.03 & ±0.02% FS |
|
Rated output |
1,000,000 counts |
|
Creep |
±0.023 & ±0.016% FS/30min |
|
Temp.effect on span |
±0.017 & ±0.011% FS/10℃ |
|
Temp.effect on zero |
±0.029 & ±0.019% FS/10℃ |
|
Compensated temp.range |
-10℃ ~ +40 ℃ |
|
Use temp.range |
-30℃ ~ +70 ℃ |
|
Excitation voltage |
10VDC ~ 12VDC |
|
Baud rate |
9600 bps |
|
Communication interface |
RS485/RS232 |
|
Data refresh rate |
50 Hz |
|
Nmax |
5000 |
|
Number of bus addresses |
32 |
|
Maximum transmission distance |
1000 m |
|
Safe overload |
150% |
|
Ultimate overload |
200% |
|
IP code |
IP68 |
