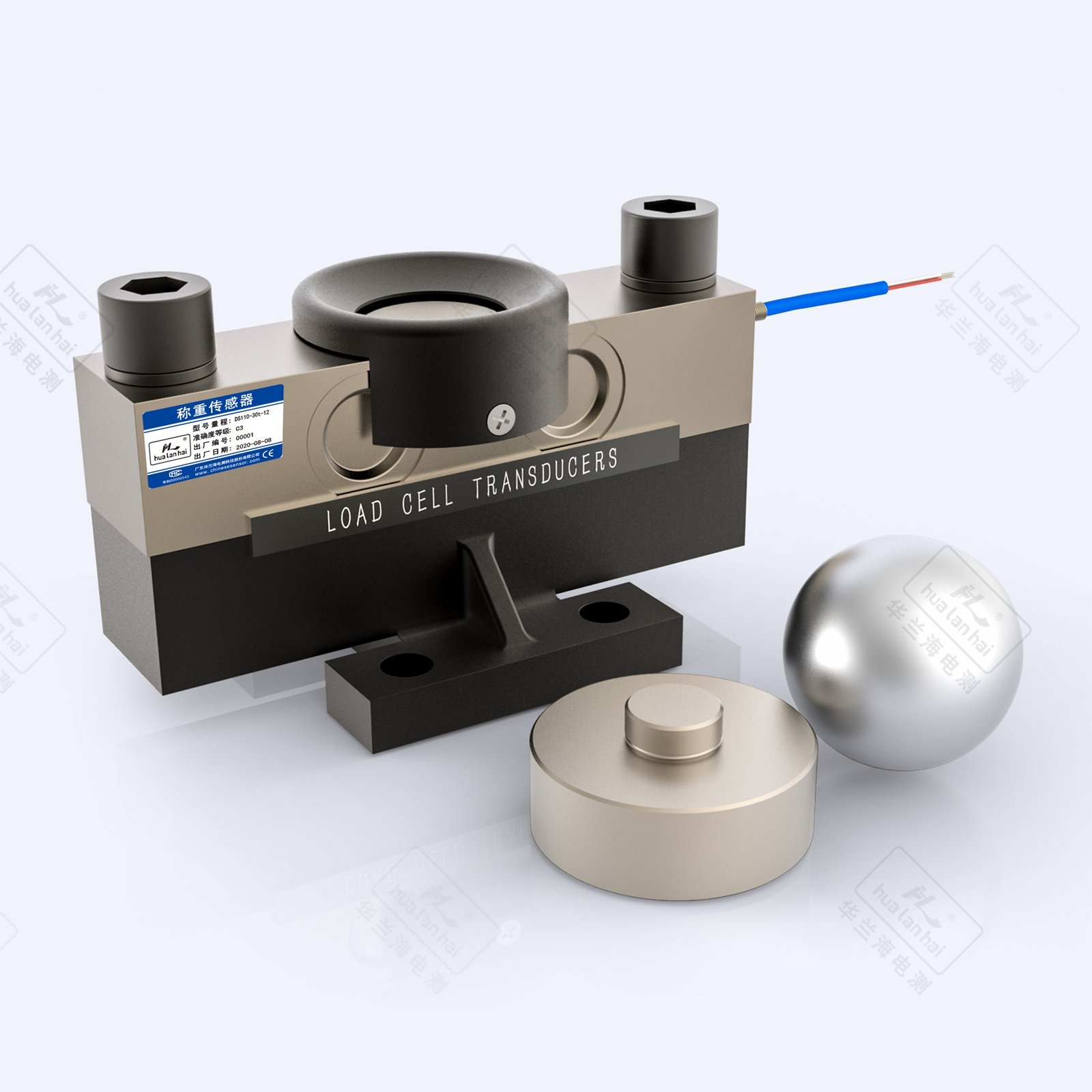

Model: DS110
Use: 전자 트럭 스케일, 지능형 사물인터넷 시스템

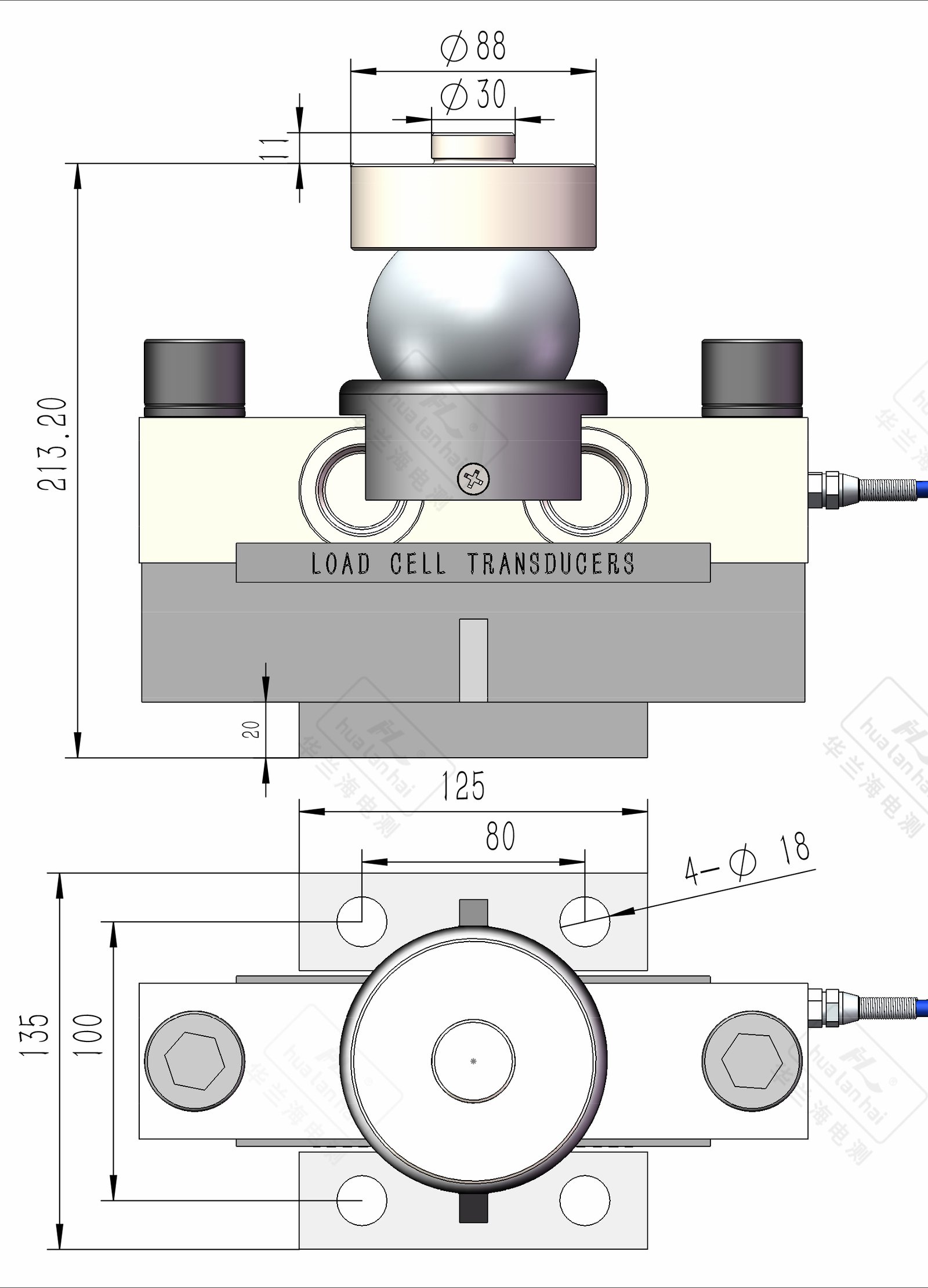

Structural diagram
parameter
Rated load | 10t/20t/30t/40t |
Accuracy class | C2/C3 |
Composition error | ±0.03 & ±0.02% FS |
Rated output | 1,000,000 counts |
Creep | ±0.023 & ±0.016% FS/30min |
Temp.effect on span | ±0.017 & ±0.011% FS/10℃ |
Temp.effect on zero | ±0.029 & ±0.019% FS/10℃ |
Compensated temp.range | -10℃ ~ +40 ℃ |
Use temp.range | -30℃ ~ +70 ℃ |
Excitation voltage | 10VDC ~ 12VDC |
Baud rate | 9600 bps |
Communication interface | RS485/RS232 |
Data refresh rate | 50 Hz |
Nmax | 5000 |
Number of bus addresses | 32 |
Maximum transmission distance | 1000 m |
Safe overload | 150% |
Ultimate overload | 200% |
IP code | IP68 |
