Model: CZL940E5
Use: 휴먼 스케일, 우편 스케일, 커피 머신, 맥주 머신

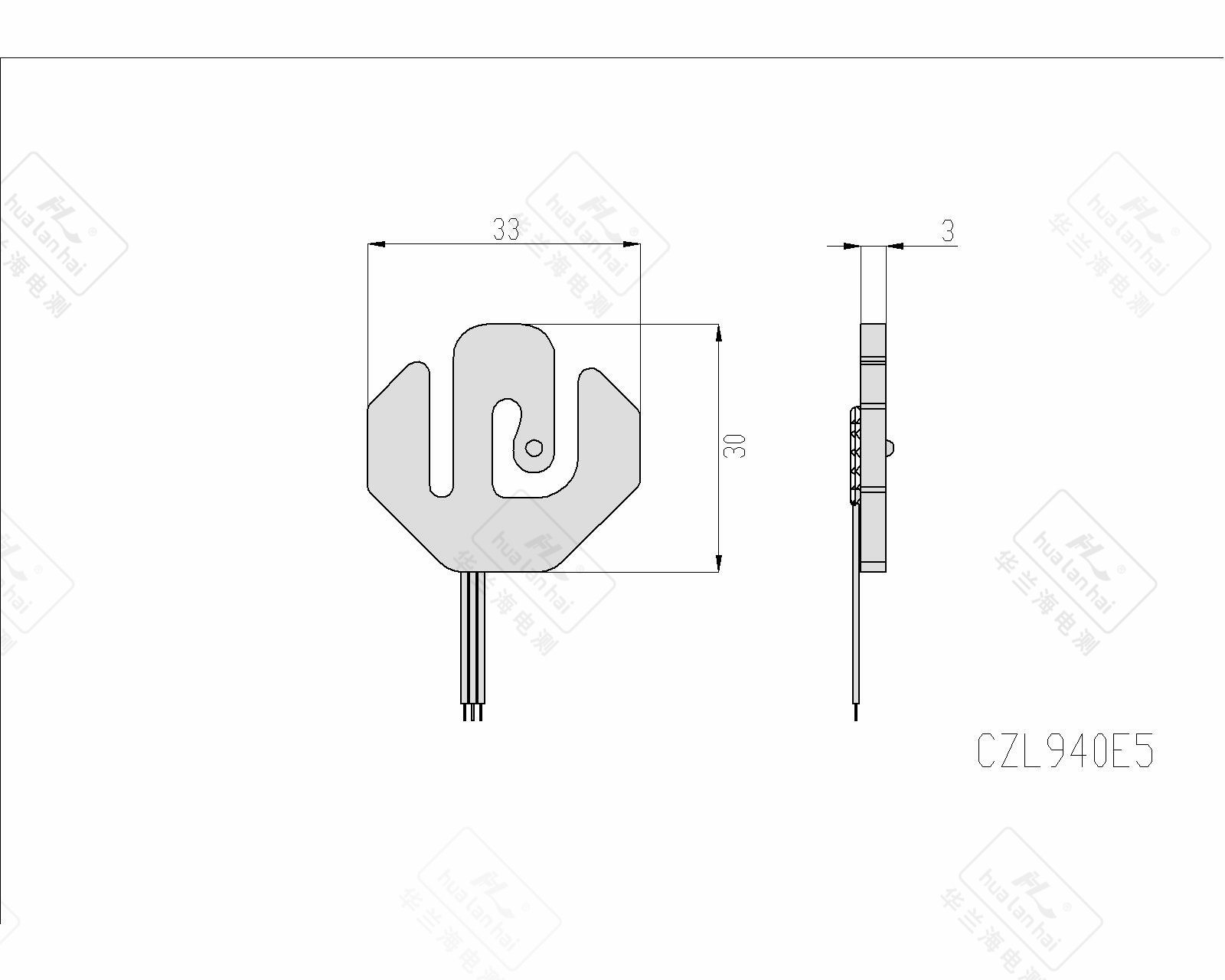

Structural diagram
parameter
|
Rated load |
50kg |
|
Zero output |
±0.5 mV/V |
|
Output sensitivity |
1.2±0.2 mV/V |
|
Nonlinear |
0.05% FS |
|
lagging |
0.05% FS |
|
Repeatability |
0.05% FS |
|
Creep |
0.1% FS/3min |
|
Output (input) impedance |
1000±10Ω |
|
Service temperature |
-10℃ ~ +60 ℃ |
|
Zero temperature effect |
±0.3% FS/10℃ |
|
Sensitivity temperature effect |
±0.1% FS/10℃ |
|
Insulation resistance |
≥2000MΩ |
|
Excitation voltage |
3VDC ~ 10VDC |
|
Ultimate Overload |
150% FS |
|
Material Science |
Manganese Steel |
|
Protection level |
IP65 |
|
Pairing error |
0.1% FS |
|
Overall dimension of sensor |
30*30*3.5 |
