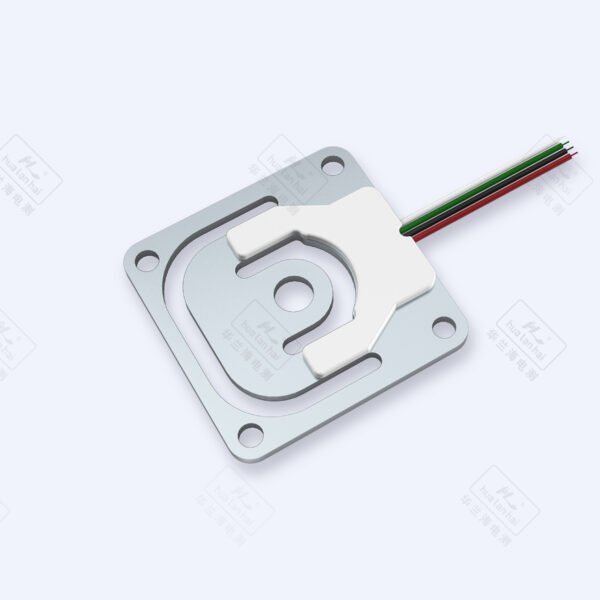

Model: CZL928DB
Use: 캣타워, 휴먼 스케일, 우편 스케일, 커피 머신, 맥주 머신
Structural diagram
parameter
| Rated load | 10kg/30kg/50kg |
| Zero output | ±0.5 mV/V |
| Output sensitivity | 1.0/1.5/1.8±0.15 mV/V |
| Linear | 0.05% FS |
| lagging | 0.05% FS |
| Repeatability | 0.05% FS |
| Creep | 0.05% FS/3min |
| Output (input) impedance | 1000±10Ω |
| Service temperature | -10℃ ~ +40 ℃ |
| Zero temperature effect | ±0.1% FS/10℃ |
| Sensitivity temperature effect | ±0.1% FS/10℃ |
| Insulation resistance | ≥2000MΩ |
| Excitation voltage | 5VDC ~ 10VDC |
| Ultimate Overload | 150% FS |
| Material Science | Manganese Steel |
| Protection level | IP65 |
| Comprehensive accuracy | 0.05% FS |
| Overall dimension of sensor | 34*34*H |
