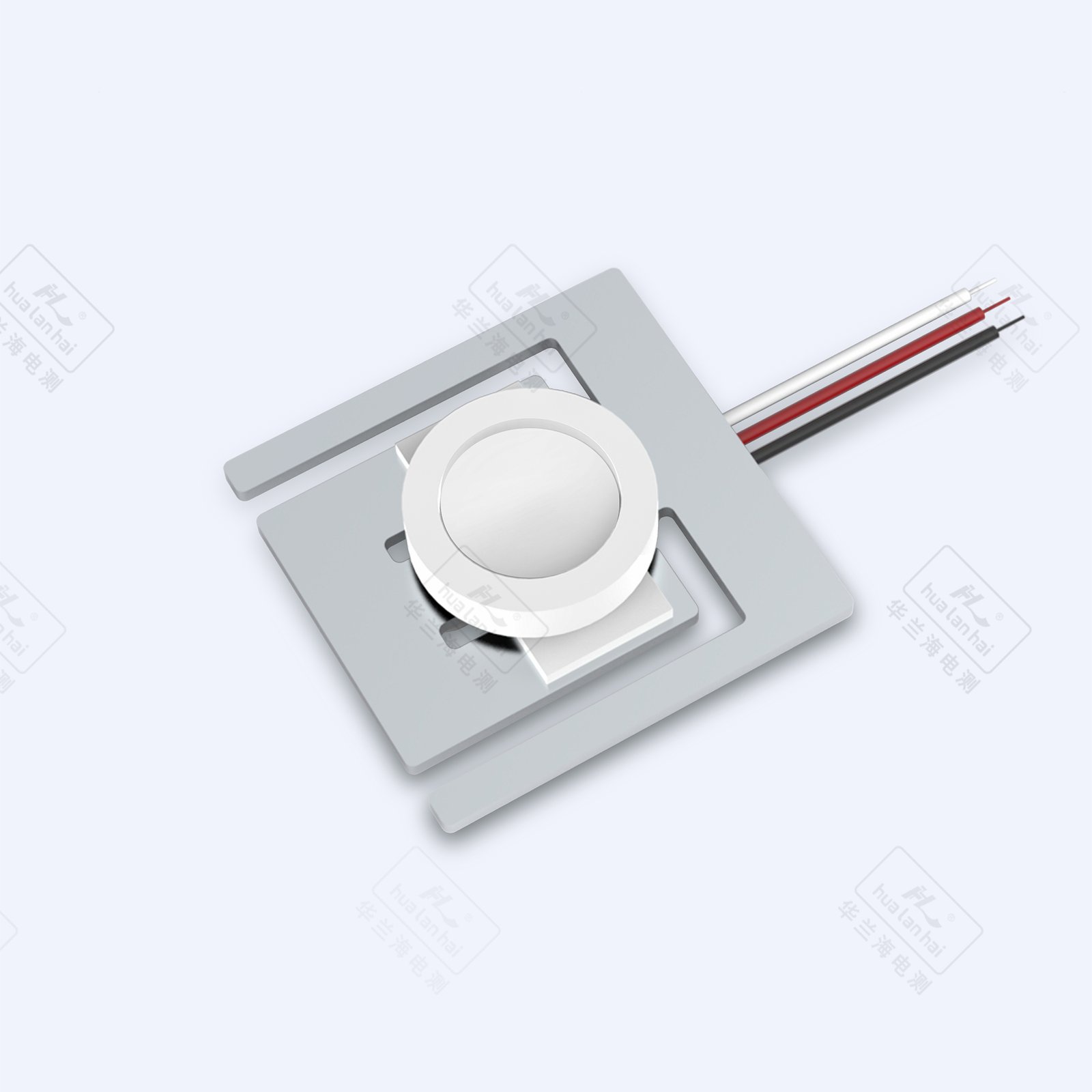

Model: CZL913EC
Use: 캣타워, 휴먼 스케일, 우편 스케일, 커피 머신, 맥주 머신

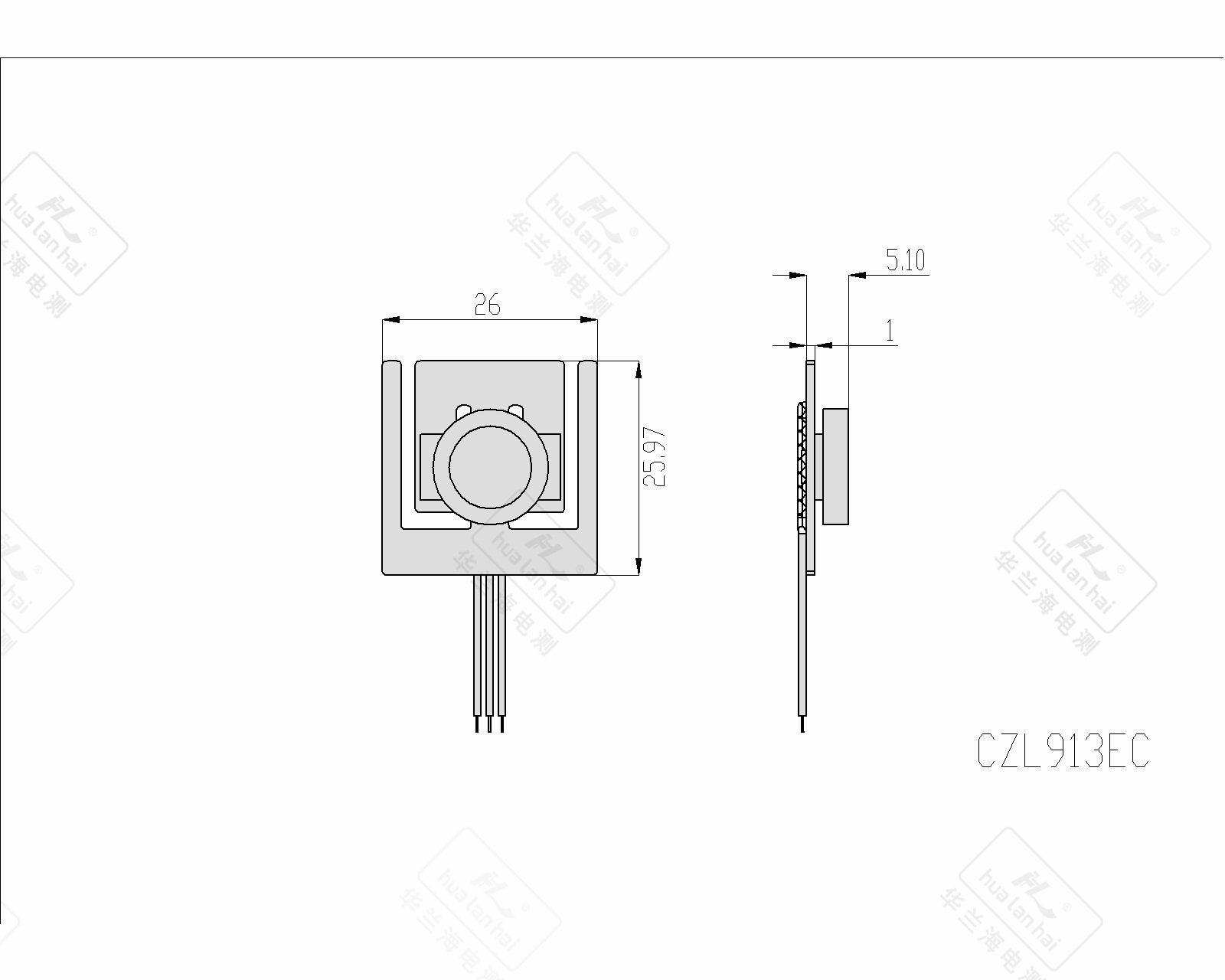

Structural diagram
parameter
|
Rated load |
3kg/5kg |
|
Zero output |
±0.7 mV/V |
|
Output sensitivity |
1.0/1.5±0.15 mV/V |
|
Linear |
0.1% FS |
|
lagging |
0.05% FS |
|
Repeatability |
0.05% FS |
|
Creep |
0.05% FS/3min |
|
Output (input) impedance |
500±10Ω |
|
Service temperature |
-10℃ ~ +50 ℃ |
|
Zero temperature effect |
±0.2% FS/10℃ |
|
Sensitivity temperature effect |
±0.1% FS/10℃ |
|
Insulation resistance |
≥2000MΩ |
|
Excitation voltage |
3VDC ~ 10VDC |
|
Ultimate Overload |
150% FS |
|
Material Science |
Manganese Steel |
|
Protection level |
IP65 |
|
Comprehensive accuracy |
0.15% FS |
|
Overall dimension of sensor |
26*26*1 |
