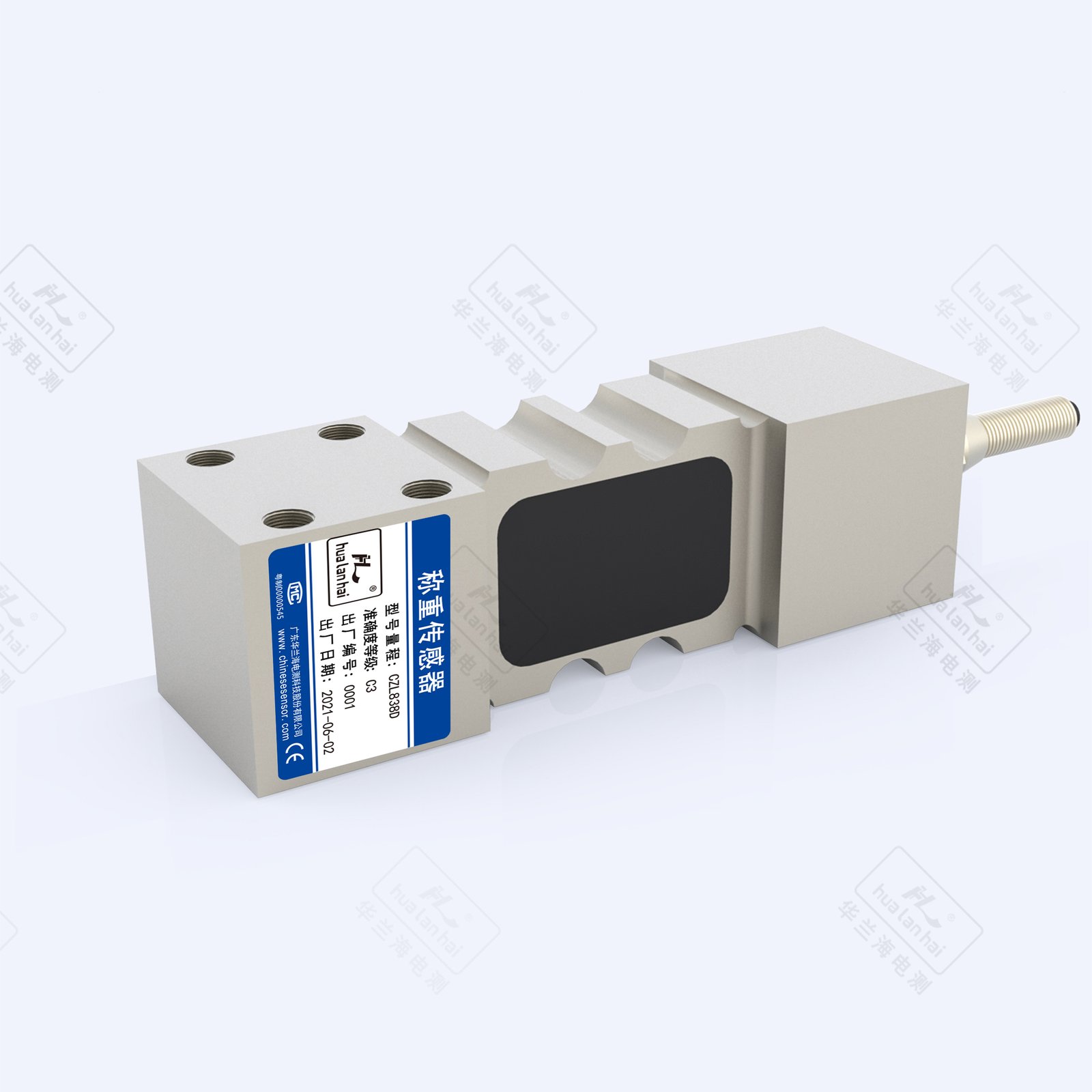

Model: CZL838D
Use: Filling scale, Hopper scale, Belt scale, Electronic platform scale, Electronic weighbridge scale, Industrial equipment re measuring force

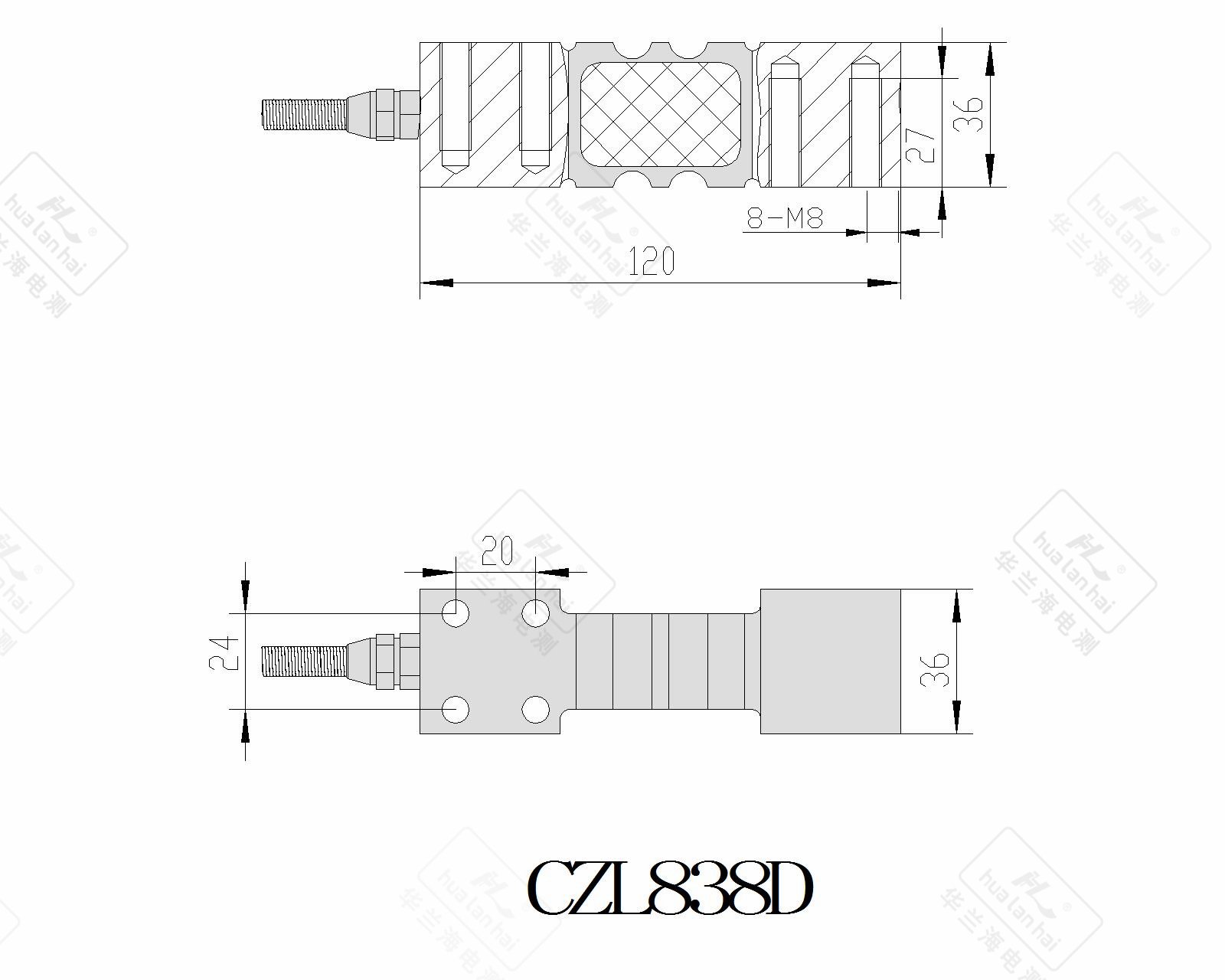

Structural diagram
parameter
|
Sensor range |
30kg~200kg |
|
Accuracy class |
C2 |
|
Comprehensive error |
±0.1% FS |
|
Output sensitivity |
2.0±0.1 mV/V |
|
creep |
±0.05% FS/30min |
|
Zero output |
±2.0% FS |
|
Input impedance |
350±20Ω |
|
Output impedance |
350±20Ω |
|
insulation resistance |
≥5000 MΩ(100VDC) |
|
Influence of zero temperature |
±0.05% FS/10℃ |
|
Sensitivity temperature effect |
±0.05% FS/10℃ |
|
Temperature compensation range |
-10℃ ~ +40 ℃ |
|
Operating temperature range |
-30℃ ~ +70 ℃ |
|
Excitation voltage |
10VDC ~ 12VDC |
|
Safe overload range |
150% |
|
Limit overload range |
200% |
|
Material Science |
合金钢/Alloy Steel |
|
Protection level |
IP66 |
