Model: CZL810DM
Use: 반응기, 혼합 탱크, 호퍼, 사일로, 탱크, 시멘트 혼합 플랜트, 화학·제약·식품 산업, 원료 계량 분야

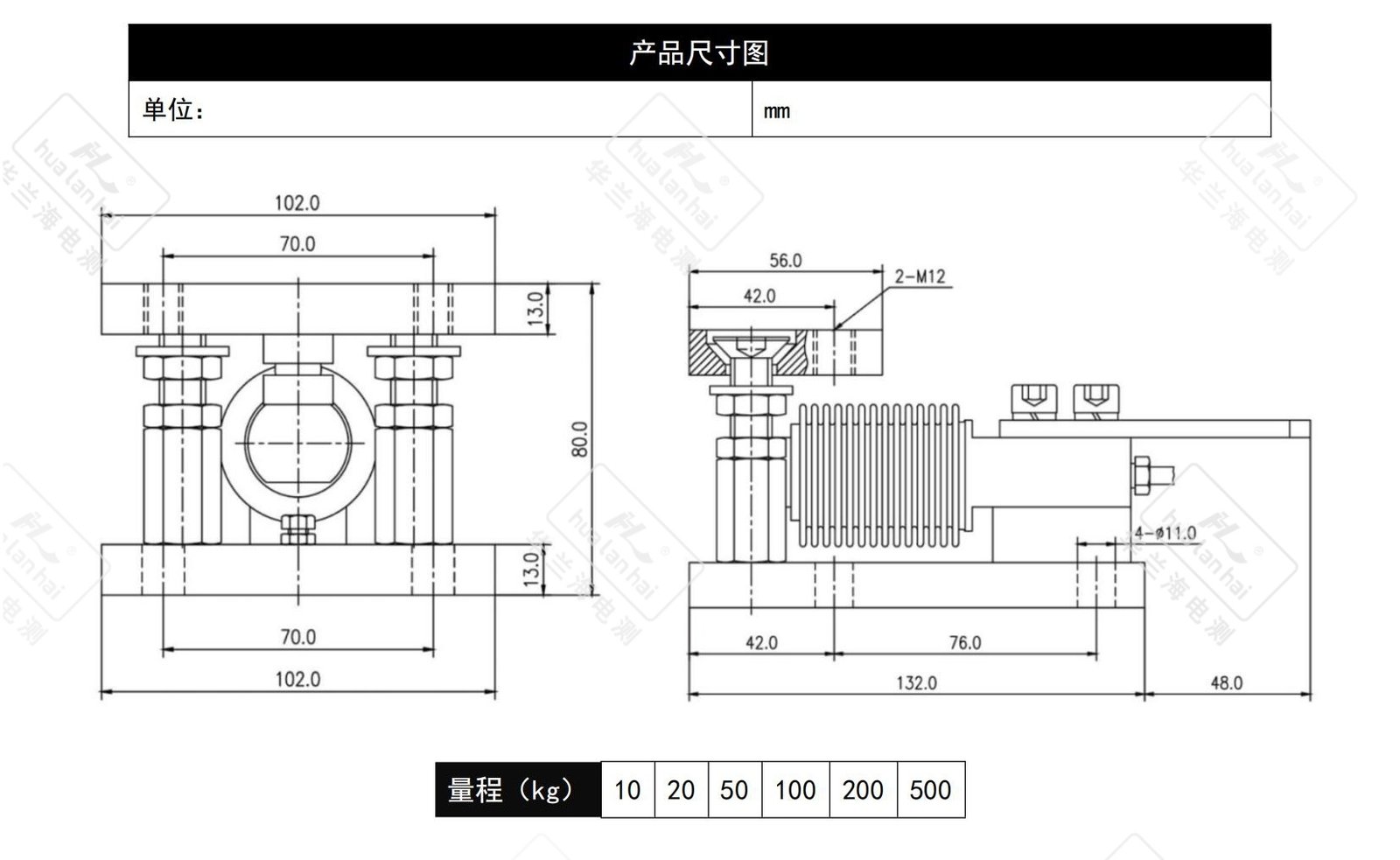

Structural diagram
parameter
| Rated range | 0-500Kg |
| Output sensitivity | 2.0±0.002 mV/V |
| Zero point output | ±1 %F.S. |
| Nonlinear | 0.03 %F.S. |
| Lag | 0.03 %F.S. |
| Repeatability | 0.03 %F.S. |
| Creep (30 minutes) | 0.01 %F.S. |
| Temperature sensitivity drift | 0.01 %F.S. /10℃ |
| Zero-point temperature drift | 0.01 %F.S. /10℃ |
| response frequency | 1k Hz |
| Material | 42CrMoA/不锈钢 |
| Impedance | 350Ω |
| Insulation resistance | ≥5000 MΩ/100V DC |
| Use voltage | 5-15V |
| Operating temperature range | -20-80℃ |
| Safe Overload | 150%R. C. |
| Ultimate Overload | 200%R. C. |
| Cable specification | Φ 5*3m |
| Ultimate tensile force of cable | 98N |
| TEDS | 옵션 |
