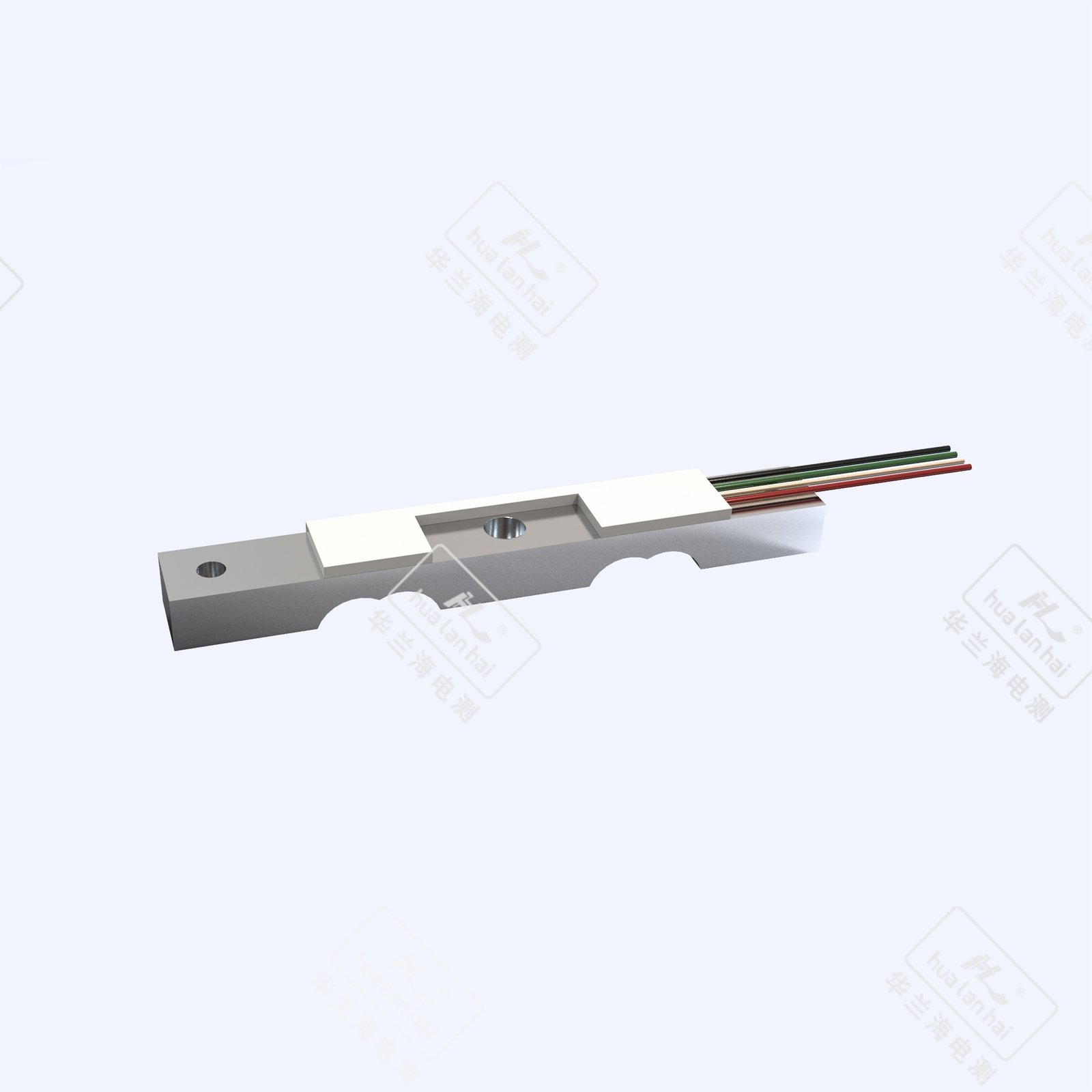

Model: CZL799E
Use:

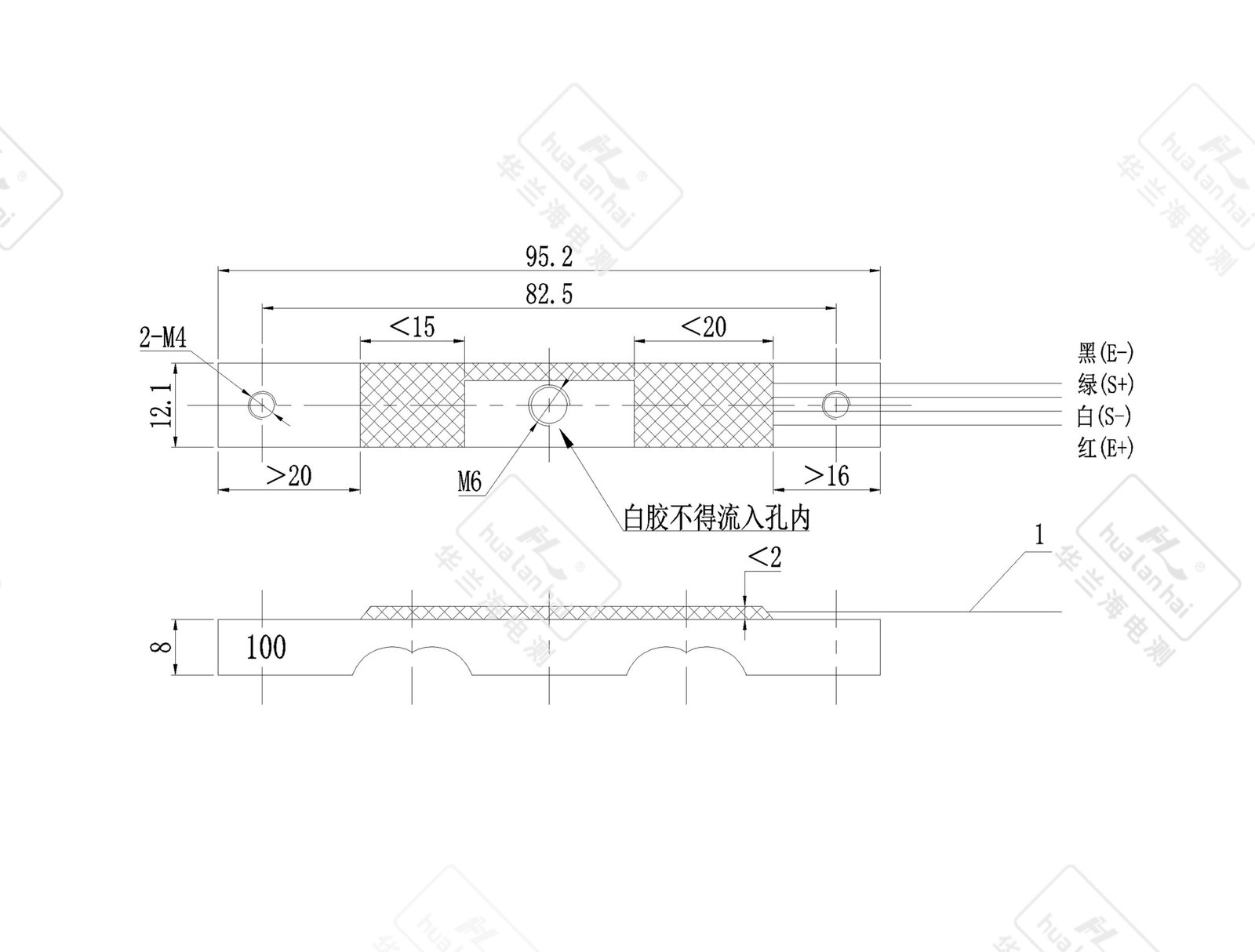

Structural diagram
parameter
Sensor range | 100kg |
Output sensitivity | 1.0±0.2 mV/V |
Linear error | ±0.1% FS |
Lag error | ±0.1% FS |
Repeatability | ±0.1% FS |
Zero output | ±0.3mV/V |
Input impedance | 1000±10Ω |
Output impedance | 1000±10Ω |
Influence of zero temperature | 0.01% FS |
Sensitivity temperature effect | 0.05% FS |
Reference excitation voltage | 5VDC ~ 10VDC |
insulation resistance | ≥2000MΩ |
working temperature | -10℃ ~ +40 ℃ |
Safe overload range | 120% |
Limit overload range | 150% |
Comprehensive accuracy | 0.1% FS |
