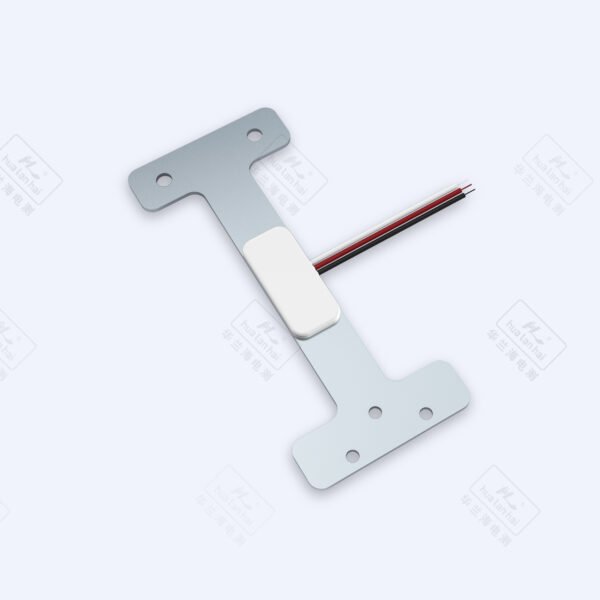

Model: CZL700H
Use:
Structural diagram
parameter
|
Rated load |
500g |
|
Zero output |
±0.5 mV/V |
|
Output sensitivity |
0.6±0.1 mV/V |
|
Nonlinear |
0.5% FS |
|
lagging |
0.5% FS |
|
Repeatability |
0.5% FS |
|
Creep |
0.5% FS/3min |
|
Output (input) impedance |
350±10Ω |
|
Service temperature |
-10℃ ~ +40 ℃ |
|
Zero temperature effect |
±0.5% FS/10℃ |
|
Sensitivity temperature effect |
±0.5% FS/10℃ |
|
Insulation resistance |
≥2000MΩ |
|
Working temperature |
-10℃ ~ +40 ℃ |
|
Excitation voltage |
5VDC ~ 10VDC |
|
Ultimate Overload |
150% FS |
|
Material Science |
Manganese Steel |
|
Protection level |
IP65 |
|
Overall dimension of sensor |
59*26*0.8 |
