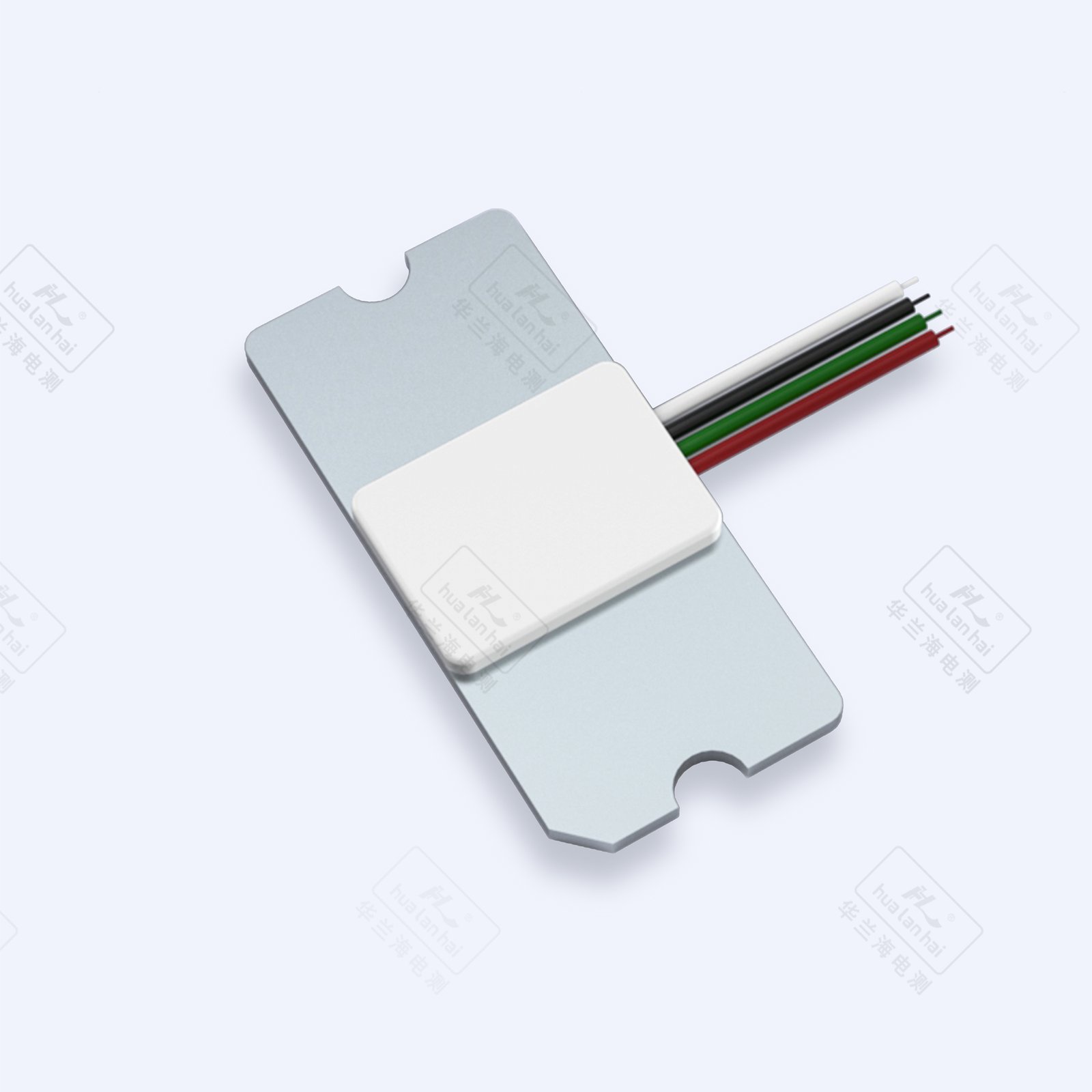

Model: CZL700E
Use:

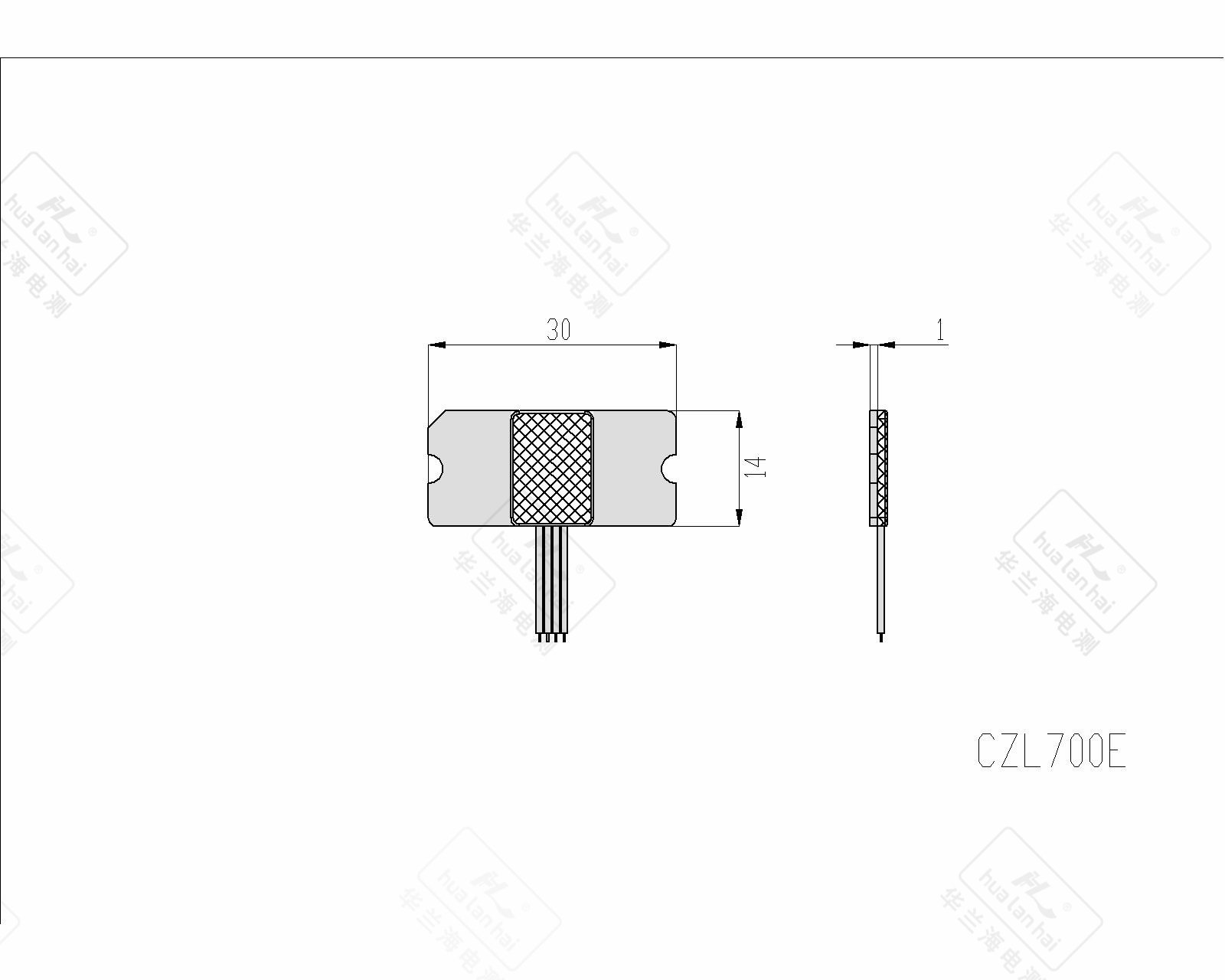

Structural diagram
parameter
|
Rated load |
3kg |
|
Zero output |
±0.3 mV/V |
|
Output sensitivity |
0.3±0.15 mV/V |
|
Nonlinear |
0.3% FS |
|
lagging |
0.3% FS |
|
Repeatability |
0.1% FS |
|
Creep |
0.2% FS/3min |
|
Output (input) impedance |
1000±10Ω |
|
Service temperature |
-10℃ ~ +40 ℃ |
|
Zero temperature effect |
±0.2% FS/10℃ |
|
Sensitivity temperature effect |
±0.2% FS/10℃ |
|
Insulation resistance |
≥2000MΩ |
|
Working temperature |
-10℃ ~ +40 ℃ |
|
Excitation voltage |
5VDC ~ 10VDC |
|
Ultimate Overload |
150% FS |
|
Material Science |
Manganese Steel |
|
Protection level |
IP65 |
|
Overall dimension of sensor |
30*14*1 |
