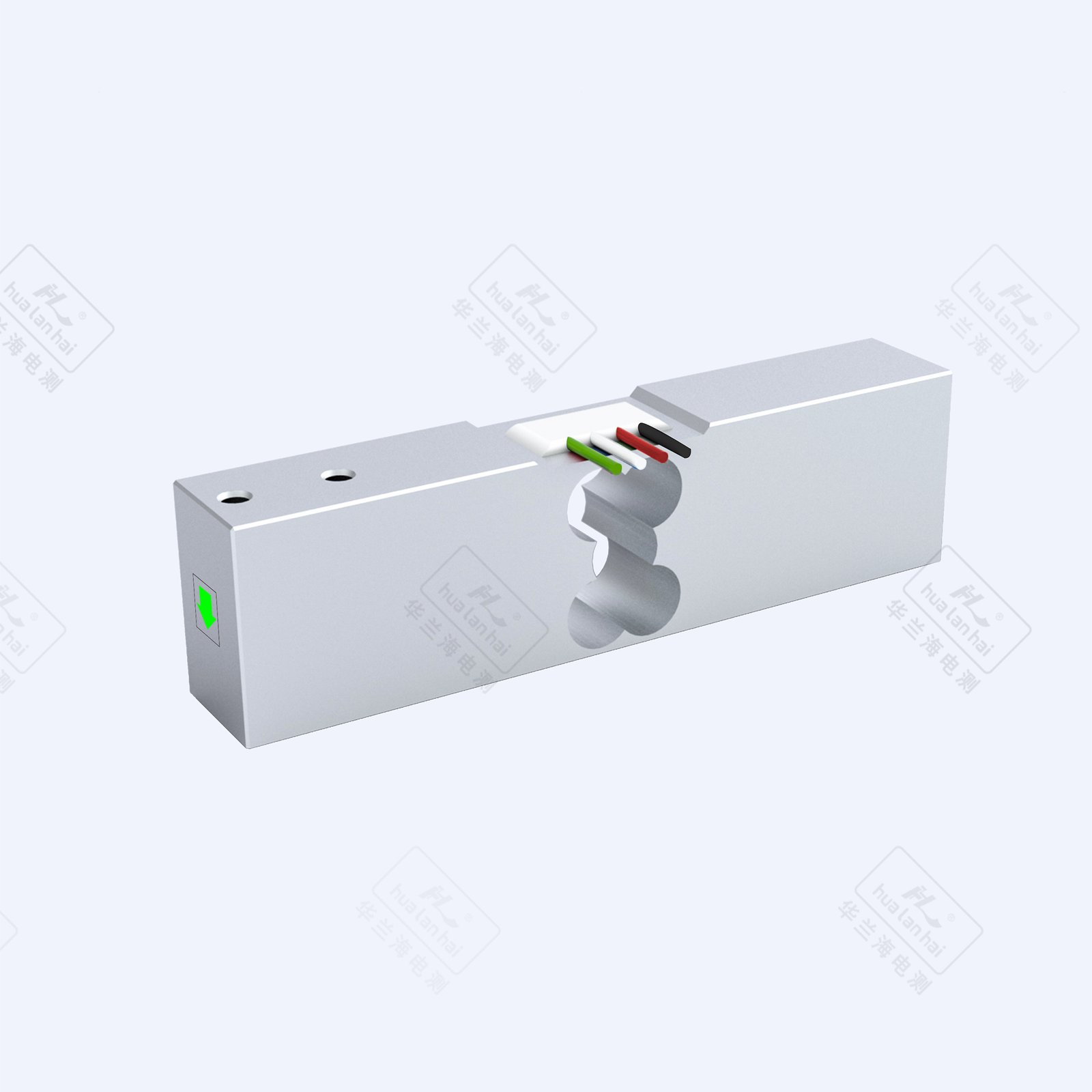

Model: CZL650U
Use: Count the scales, Tea machine, Industrial weighting

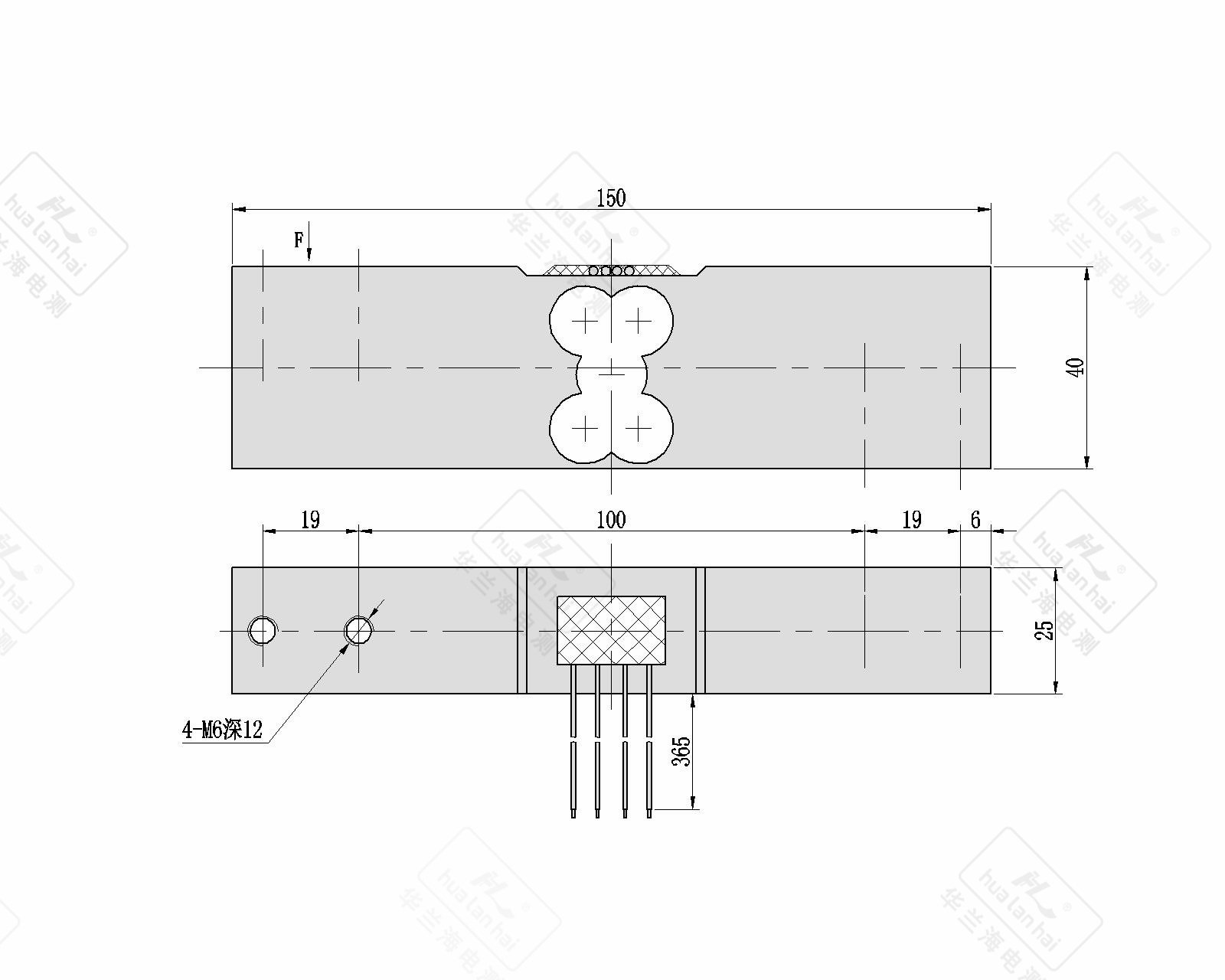

Structural diagram
parameter
Sensor range | 10kg – 100kg |
Accuracy class | C2/C3 |
Comprehensive error | 0.05% FS |
Output sensitivity | 2.0±0.1 mV/V |
creep | 0.033% FS/3min |
Zero output | ±8.0% FSmV |
Input impedance | 630±63Ω |
Output impedance | 630±63Ω |
insulation resistance | ≥5000 MΩ(100VDC) |
Influence of zero temperature | ±0.05% FS/10℃ |
Sensitivity temperature effect | ±0.05% FS/10℃ |
Temperature compensation range | -10℃ ~ +40 ℃ |
Operating temperature range | -20℃ ~ +60 ℃ |
Excitation voltage | 9VDC ~ 12VDC |
Safe overload range | 120% |
Limit overload range | 150% |
Recommended table size | 300*300mm |
Material Science | Aluminum Alloy |
Protection level | IP65 |
External dimension of sensor | 150*40*25 |
Mounting hole size | 2-M6 |
Location of mounting hole | X19 |
