Model: CZL650PA
Use: Count the scales, Tea machine, Industrial weighting

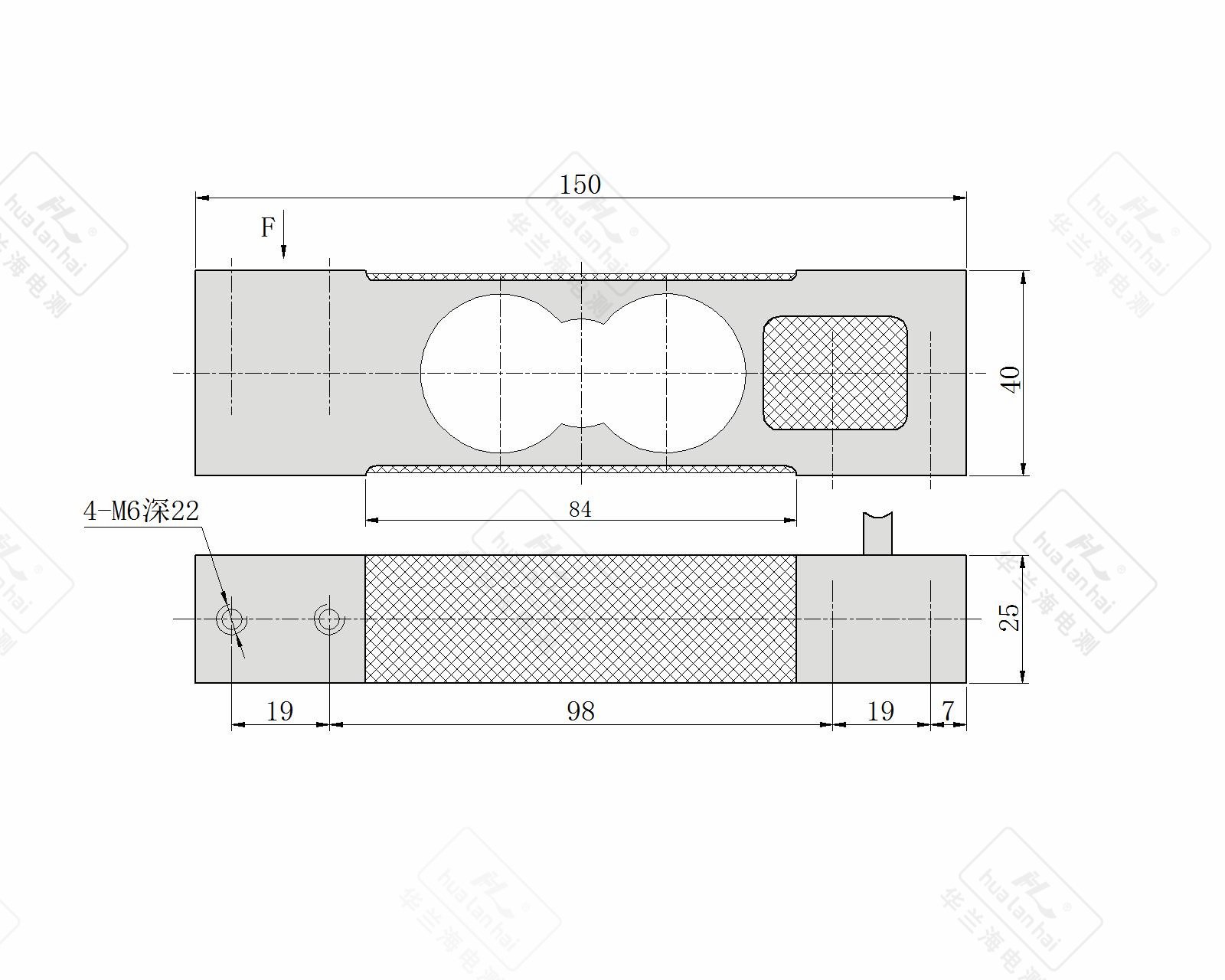

Structural diagram
parameter
|
Sensor range |
5~200kg |
|
Accuracy class |
C2 / C3 |
|
Comprehensive error |
±0.03 & ±0.02 %F.S |
|
Output sensitivity |
2.0±0.2 mV/V |
|
creep |
±0.023 & ±0.016 %F.S/30min |
|
Zero output |
±1.5 %F.S |
|
Input impedance |
405±10 Ω |
|
Output impedance |
350±3 Ω |
|
insulation resistance |
≥5000 MΩ（100VDC） |
|
Influence of zero temperature |
±0.029 & ±0.019 %F.S/10℃ |
|
Sensitivity temperature effect |
±0.025 & ±0.017 %F.S/10℃ |
|
Temperature compensation range |
-10 ~+40 ℃ |
|
Operating temperature range |
-20 ~+60 ℃ |
|
Excitation voltage |
5 ~ 12 VDC |
|
Safe overload range |
120 % |
|
Limit overload range |
150 % |
|
Recommended table size |
400*400mm |
|
Material Science |
LY12-CZ |
|
Protection level |
IP65 |
|
External dimension of sensor |
150*25*40 |
|
Mounting hole size |
2-M6 |
|
Location of mounting hole |
X19 |
