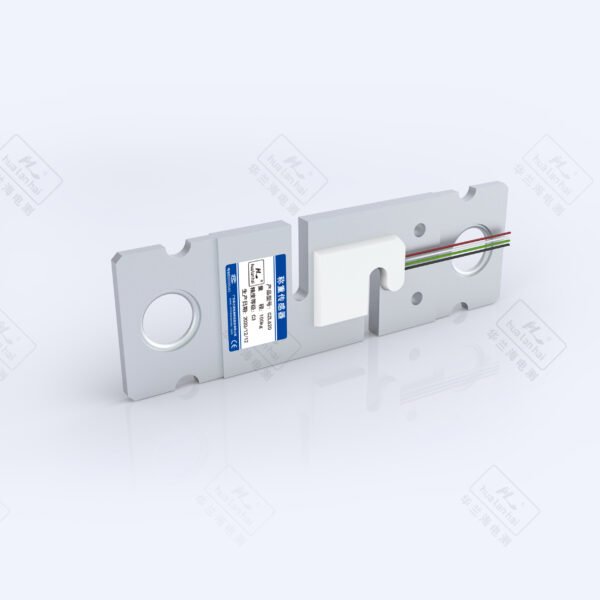

Model: CZL620
Use: Count the scales, Tea machine, Industrial weighting
Structural diagram
parameter
Sensor range | 100kg ~ 300kg |
Accuracy class | G1 |
Comprehensive error | ±0.1% FS |
Output sensitivity | 0.8±0.1 mV/V |
creep | ±0.05% FS/10min |
Zero output | ±3.0% FS |
Input impedance | 1000±10 Ω |
Output impedance | 1000±10 Ω |
insulation resistance | ≥5000 MΩ(100VDC) |
Influence of zero temperature | ±0.08% FS/10℃ |
Sensitivity temperature effect | ±0.08% FS/10℃ |
Temperature compensation range | -10℃ ~ +40 ℃ |
Operating temperature range | -20℃ ~ +60 ℃ |
Excitation voltage | 5VDC ~ 12VDC |
Safe overload range | 120% |
Limit overload range | 150% |
Material Science | Aluminum Alloy |
Protection level | IP65 |
External dimension of sensor | 146*46*2/4/6 |
Mounting hole size | φ20 |
Location of mounting hole | H116 |
