Model: CZL614FKA
Use: 우편 저울, 커피 머신, 맥주 제조기, 애완동물 사료기, 애완동물 자동 급수기

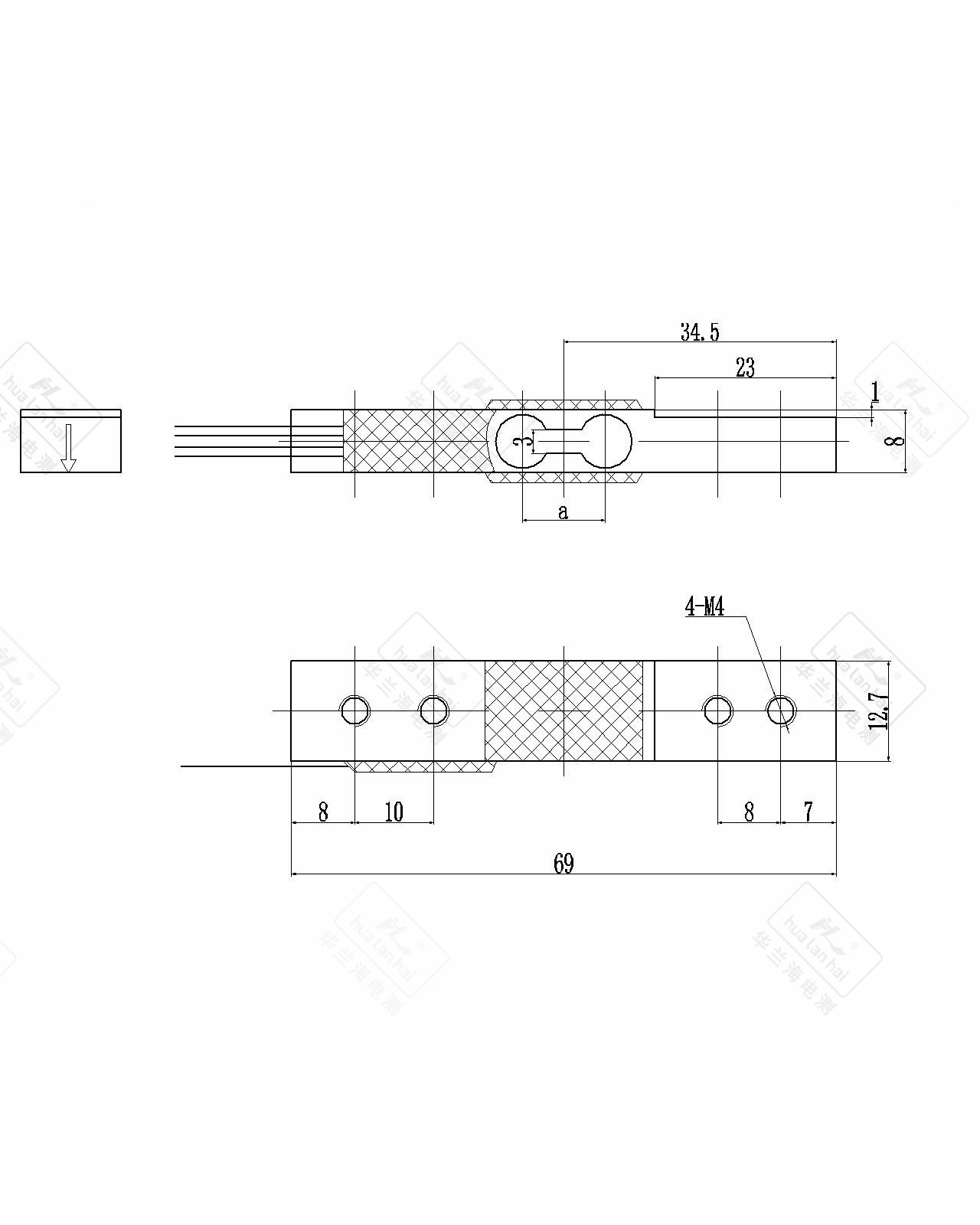

Structural diagram
parameter
| Sensor range | 1kg ; 3kg |
| Output sensitivity | 1.0±0.15 mV/V |
| Linear error | ±0.05% FS |
| Lag error | ±0.05% FS |
| Off center load error | ±0.05% FS |
| Zero output | ±0.1 mV/V |
| Input impedance | 1000±10Ω |
| Output impedance | 1000±10Ω |
| Influence of zero temperature | 0.2% FS |
| Sensitivity temperature effect | 0.05% FS |
| Reference excitation voltage | 3VDC ~ 10VDC |
| insulation resistance | ≥2000MΩ |
| working temperature | -10℃ ~ +50 ℃ |
| Storage temperature | -10℃ ~ +60 ℃ |
| Safe overload range | 120% |
| Limit overload range | 150% |
| Material Science | Aluminum Alloy |
| Protection level | IP65 |
| External dimension of sensor | 69*12.7*8 |
| Mounting hole size | 4-M4 |
