Hualanhai / CZL608LD / 빔로드셀


센서의 탄성체는 알루미늄 합금으로 제작되었으며, 접착제 밀봉 처리가 되어 있고, 표면은 무색 아노다이징 처리되었습니다. 보호 등급은 IP65에 도달합니다.


Share it:

Model: CZL608LD

Use: Count the scales, Tea machine, Industrial weighting

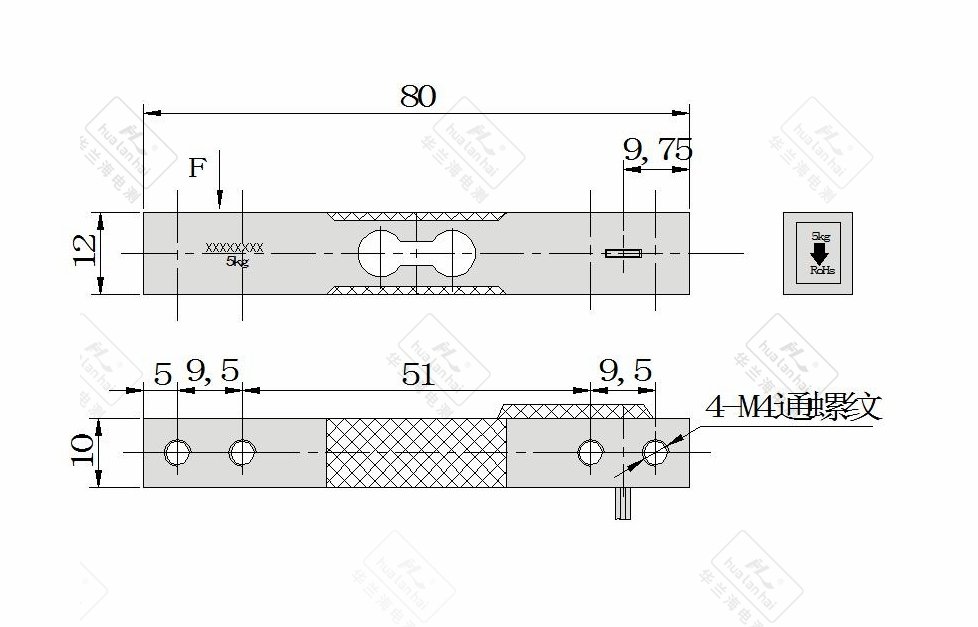

Structural diagram

parameter

Sensor range

5kg

Accuracy class

C2

Comprehensive error

±0.03% FS

Output sensitivity

1.0±0.15 mV/V

creep

±0.023% FS/30min

Zero output

±0.1 mV/V

Input impedance

350±10Ω

Output impedance

350±3Ω

insulation resistance

≥5000 MΩ(100VDC)

Influence of zero temperature

±0.029% FS/10℃

Sensitivity temperature effect

±0.025% FS/10℃

Temperature compensation range

-10℃ ~ +40 ℃

Operating temperature range

-20℃ ~ +60 ℃

Excitation voltage

10VDC ~ 12VDC

Safe overload range

120%

Limit overload range

150%

Recommended table size

150*150mm

Material Science

Aluminum Alloy

Protection level

IP65

External dimension of sensor

80*12*10

Mounting hole size

2-M4

Location of mounting hole

X9.5
