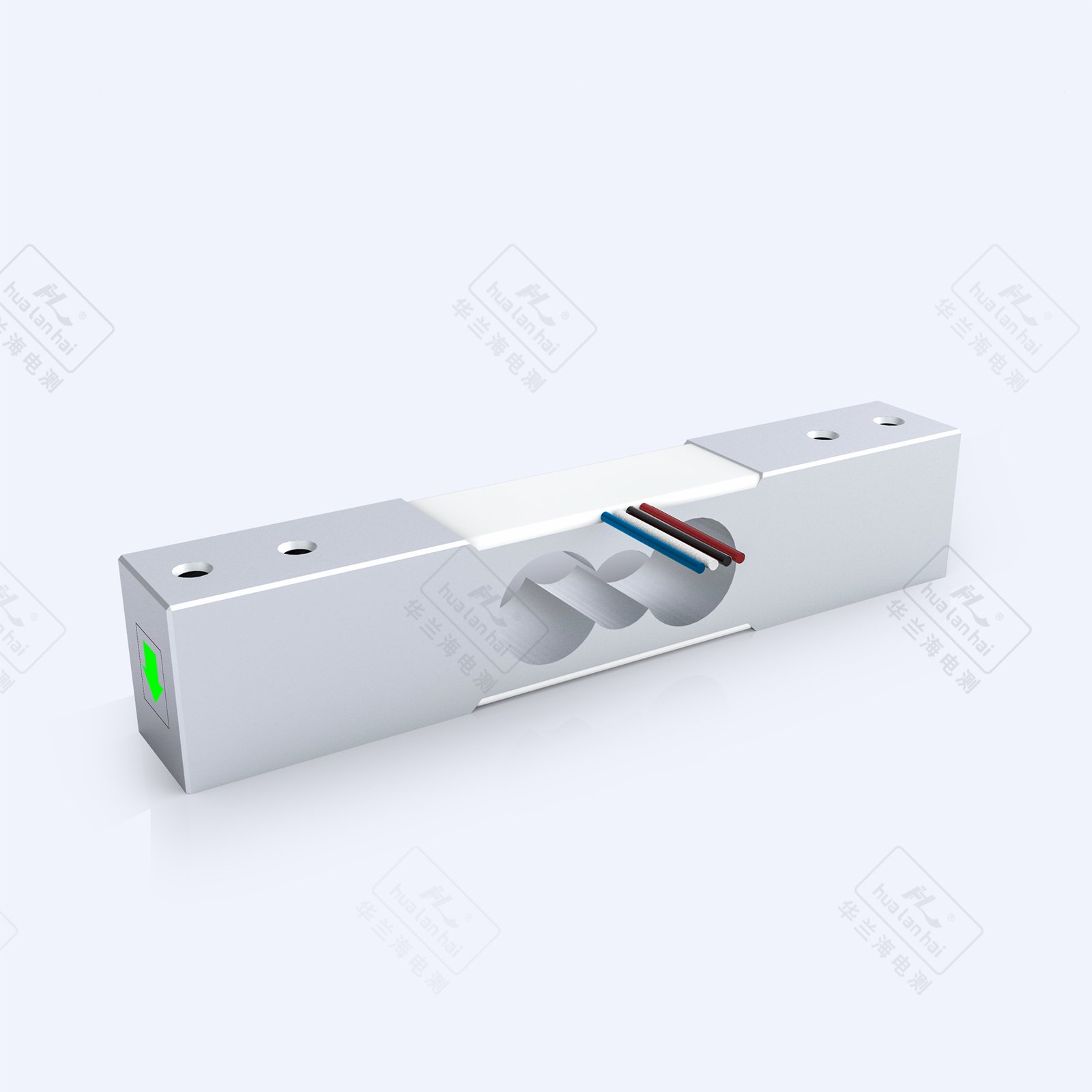

Model: CZL601Y
Use: Count the scales, Tea machine, Industrial weighting
Structural diagram
parameter
| Sensor range | 20kg |
| Accuracy class | C2/C3 |
| Comprehensive error | 0.05% FS |
| Output sensitivity | 1.5±0.15 mV/V |
| creep | 0.05% FS/10min |
| Zero output | ±0.1 mV/V |
| Input impedance | 1090±10Ω |
| Output impedance | 1000±10Ω |
| insulation resistance | ≥2000 MΩ(100VDC) |
| Influence of zero temperature | ±0.2% FS/10℃ |
| Sensitivity temperature effect | ±0.2%F.S/10℃ |
| Temperature compensation range | -10℃ ~ +40 ℃ |
| Operating temperature range | -20℃ ~ +60 ℃ |
| Excitation voltage | 9VDC ~ 12VDC |
| Safe overload range | 120% |
| Limit overload range | 150% |
| Recommended table size | 300*300mm |
| Material Science | Aluminum Alloy |
| Protection level | IP65 |
| External dimension of sensor | 129.8*25.4*19.05 |
| Mounting hole size | 2-M5 |
| Location of mounting hole | X14 |
