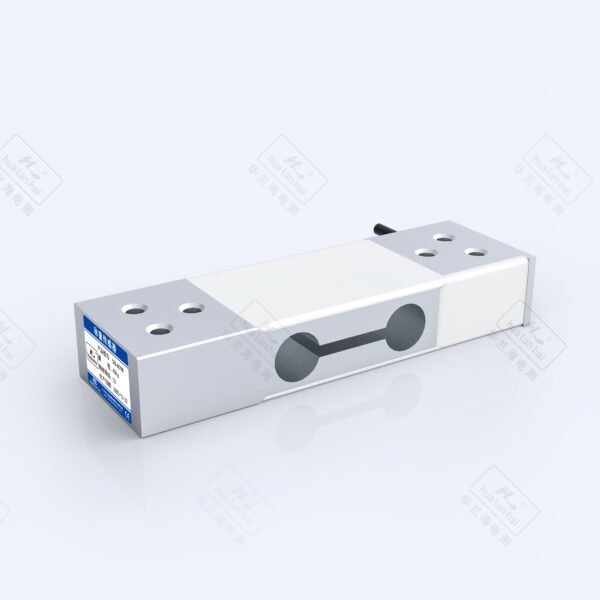

Model: CZL601N
Use: Count the scales, Tea machine, Industrial weighting
Structural diagram
parameter
|
Sensor range |
20kg ~ 200kg |
|
Accuracy class |
C2/C3 |
|
Comprehensive error |
±0.03 & ±0.02% FS |
|
Output sensitivity |
2.0±0.2 mV/V |
|
creep |
±0.023 & ±0.016% FS/30min |
|
Zero output |
±1.5% FS |
|
Input impedance |
405±10Ω |
|
Output impedance |
350±3Ω |
|
insulation resistance |
≥5000 MΩ(100VDC) |
|
Influence of zero temperature |
±0.029 & ±0.019% FS/10℃ |
|
Sensitivity temperature effect |
±0.025 & ±0.017% FS/10℃ |
|
Temperature compensation range |
-10℃ ~ +40 ℃ |
|
Operating temperature range |
-20℃ ~ +60 ℃ |
|
Excitation voltage |
5VDC ~ 12VDC |
|
Safe overload range |
120% |
|
Limit overload range |
150% |
|
Recommended table size |
300*350mm |
|
Material Science |
Aluminum Alloy |
|
Protection level |
IP65 |
|
External dimension of sensor |
130*40*22 |
|
Mounting hole size |
3-M6 |
|
Location of mounting hole |
X13Y15 |
