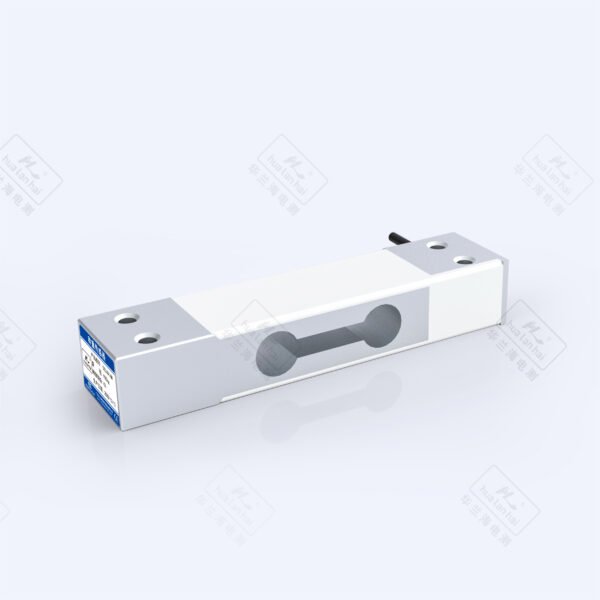

Model: CZL601AM
Use: Count the scales, Tea machine, Industrial weighting

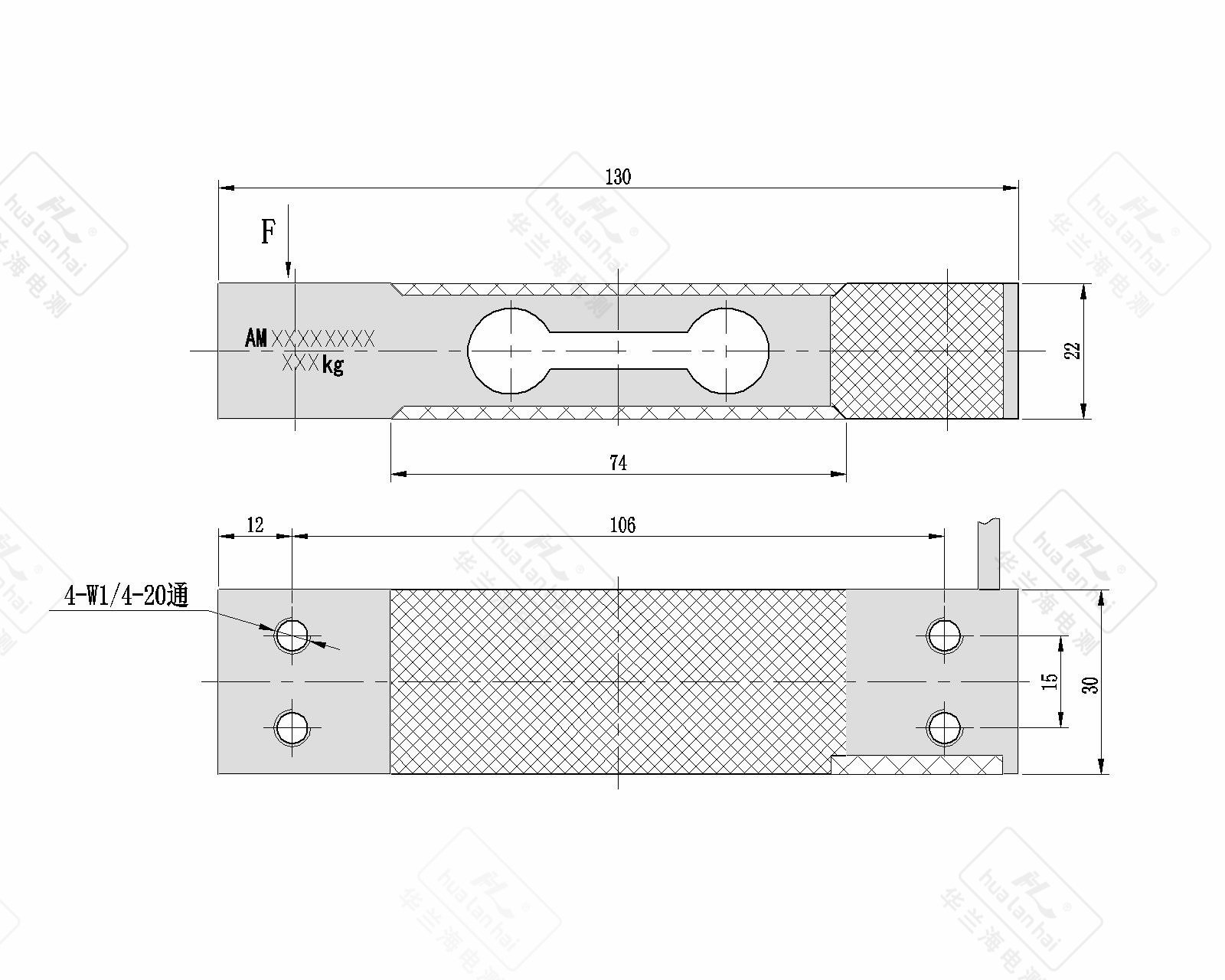

Structural diagram
parameter
Sensor range | 3kg ～ 120kg |
Accuracy class | C2/C3 |
Comprehensive error | 0.03% FS |
Output sensitivity | 2.0±0.2mV/V |
creep | 0.02% FS/10min |
Zero output | ±1.5% FS |
Input impedance | 405±10Ω |
Output impedance | 350±3Ω |
insulation resistance | ≥3000 MΩ(100VDC) |
Influence of zero temperature | ±0.015% FS/10℃ |
Sensitivity temperature effect | ±0.003% FS/10℃ |
Temperature compensation range | -10℃ ~ +40 ℃ |
Operating temperature range | -20℃ ~ +60 ℃ |
Excitation voltage | 9VDC ~ 12VDC |
Safe overload range | 120% |
Limit overload range | 150% |
Recommended table size | 300*350mm |
Material Science | Aluminum Alloy |
Protection level | IP65 |
External dimension of sensor | 130*30*22 |
Mounting hole size | 2-W1/4-20 |
Location of mounting hole | Y15 |
