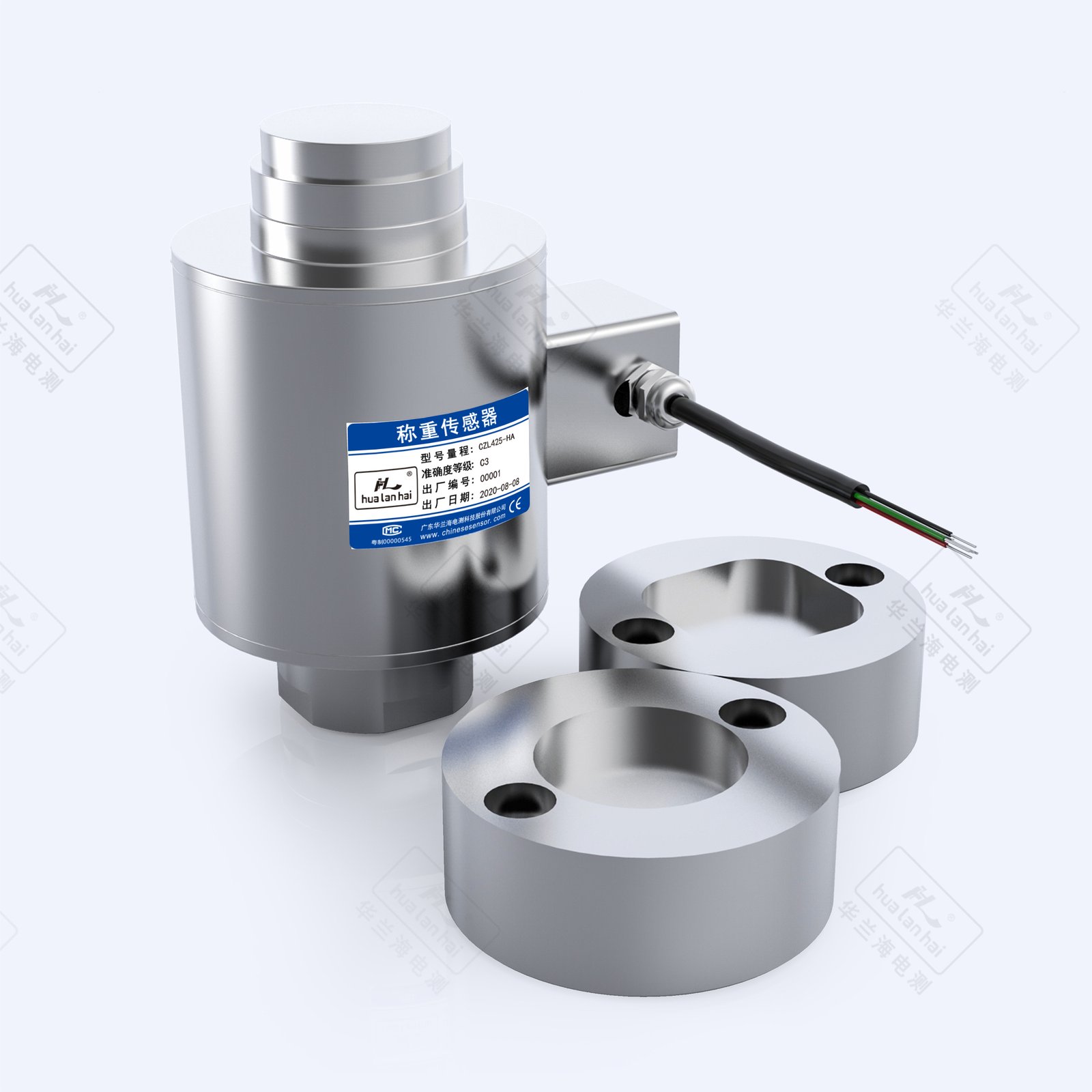

Model: CZL425-H
Use: 전자식 트럭 저울, 지능형 사물인터넷(IoT) 시스템
Structural diagram
parameter
Rated load | 10t/20t/30t/40t |
Precision | C2/C3 |
Composition error | ±0.03 & ±0.02% FS |
Rated output | 2.0±0.01 mV/V |
Creep | ±0.023 & ±0.016% FS/30min |
Zero balance | ±1.5% FS |
Input resistance | 700±10Ω |
Output resistance | 700±5Ω |
Insulation resistance | ≥5000 MΩ(100VDC) |
Temp.effect on span | ±0.017 & ±0.011% FS/10℃ |
Temp.effect on zero | ±0.029 & ±0.019% FS/10℃ |
Compensated temp.range | -10℃ ~ +40 ℃ |
Use temp.range | -30℃ ~ +70 ℃ |
Excitation voltage | 10VDC ~ 12VDC |
Safe overload | 150% |
Ultimate overload | 200% |
IP code | IP68 |
