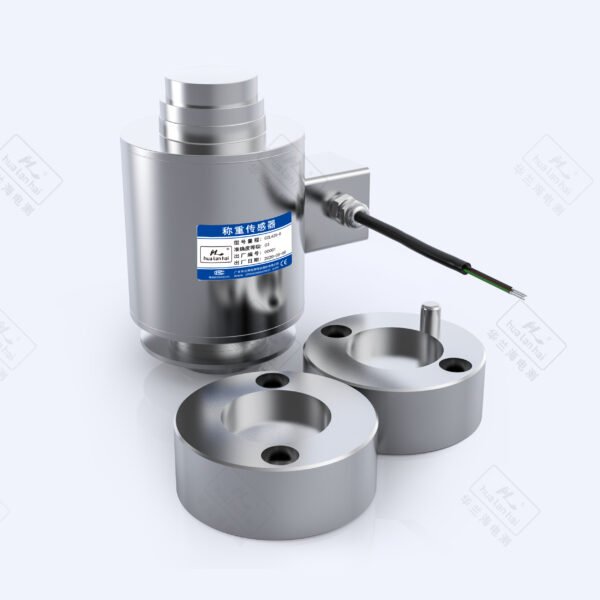

Model: CZL425-D
Use: 전자 트럭 저울, 지능형 사물인터넷(IoT) 시스템
Structural diagram
parameter
| Rated load | 10t/20t/30t/40t |
| Precision | C2/C3 |
| Composition error | ±0.03 & ±0.02% FS |
| Rated output | 2.0±0.01 mV/V |
| Creep | ±0.023 & ±0.016% FS/30min |
| Zero balance | ±1.5% FS |
| Input resistance | 700±10Ω |
| Output resistance | 700±5Ω |
| Insulation resistance | ≥5000 MΩ(100VDC) |
| Temp.effect on span | ±0.017 & ±0.011% FS/10℃ |
| Temp.effect on zero | ±0.029 & ±0.019% FS/10℃ |
| Compensated temp.range | -10℃ ~ +40 ℃ |
| Use temp.range | -30℃ ~ +70 ℃ |
| Excitation voltage | 10VDC ~ 12VDC |
| Safe overload | 150% |
| Ultimate overload | 200% |
| IP code | IP68 |
