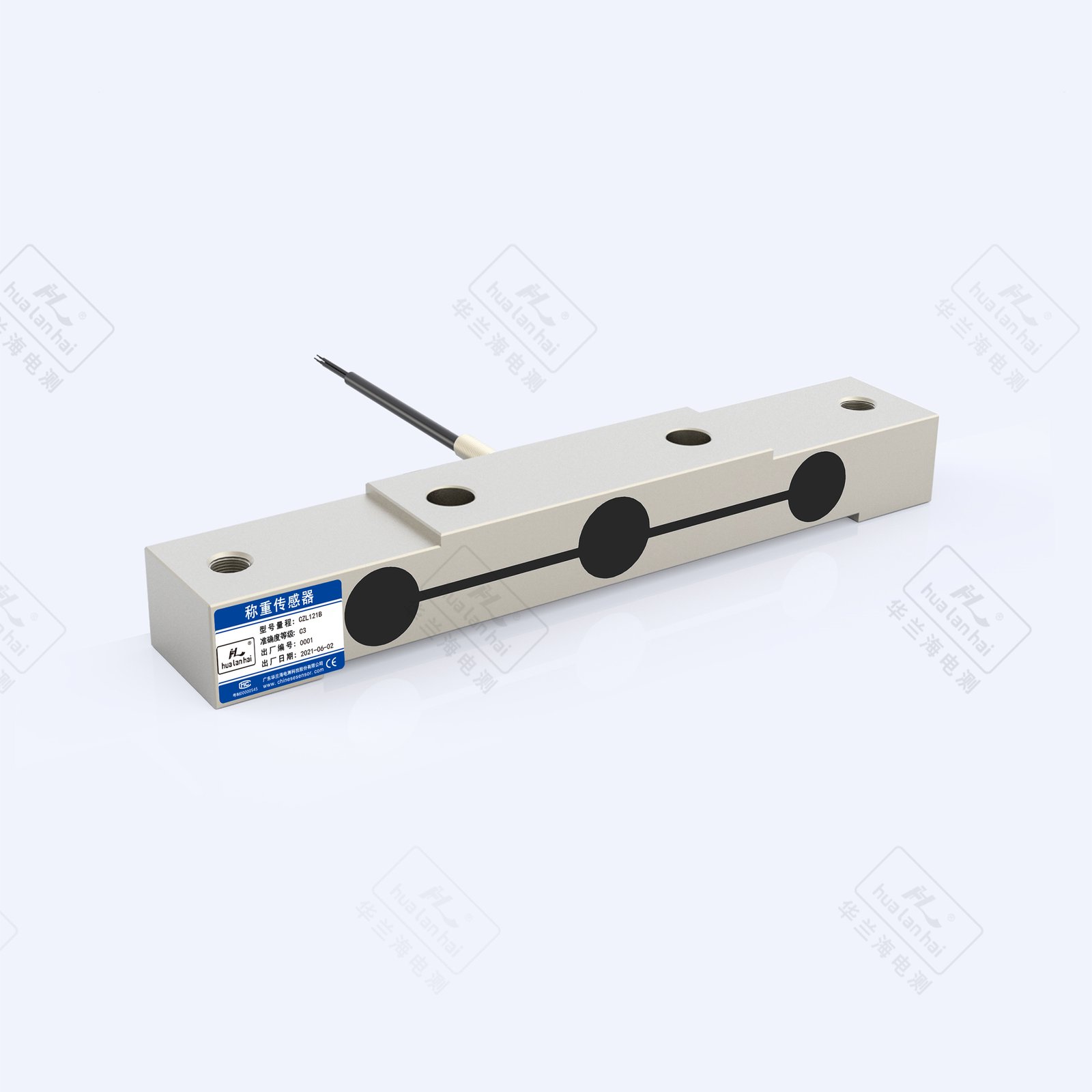

Model: CZL121B
Use: 트랙 스케일, 자동차 검사 라인
Structural diagram
parameter
Sensor range | 2t |
Comprehensive error | ±0.05% FS |
Output sensitivity | 2.0±0.02 mV/V |
creep | ±0.03% FS/30min |
Zero output | ±1.0% FS |
Input impedance | 700±5Ω |
Output impedance | 700±5Ω |
insulation resistance | ≥5000 MΩ(100VDC) |
Influence of zero temperature | ±0.05% FS/10℃ |
Sensitivity temperature effect | ±0.05% FS/10℃ |
Temperature compensation range | -10℃ ~ +40 ℃ |
Operating temperature range | -30℃ ~ +70 ℃ |
Excitation voltage | 10VDC ~ 12VDC |
Safe overload range | 150% |
Limit overload range | 200% |
Material Science | 合金钢/Alloy Steel |
Protection level | IP66 |
