Model: CZL121
Use: 힘을 측정하는 산업용 장비

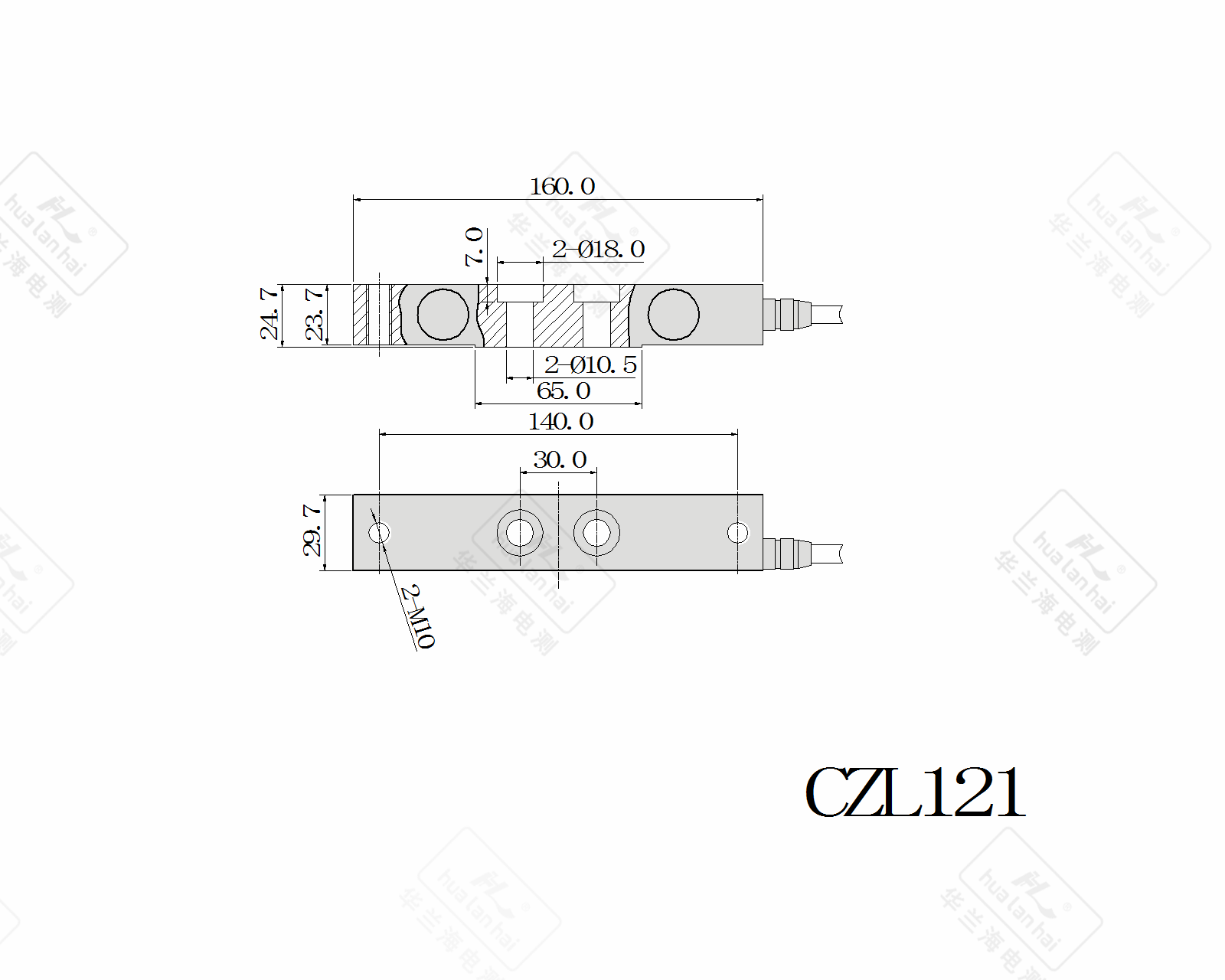

Structural diagram
parameter
Sensor range | 0.5t ～ 2t |
Accuracy class | G2 |
Comprehensive error | ±0.25% FS |
Output sensitivity | 2.0±0.02 mV/V |
creep | ±0.03% FS/30min |
Zero output | ±1.5% FS |
Input impedance | 700±10Ω |
Output impedance | 700±10Ω |
insulation resistance | ≥5000 MΩ(100VDC) |
Influence of zero temperature | ±0.05% FS/10℃ |
Sensitivity temperature effect | ±0.05% FS/10℃ |
Temperature compensation range | -10℃ ~ +40 ℃ |
Operating temperature range | -30℃ ~ +70 ℃ |
Excitation voltage | 10VDC ~ 12VDC |
Safe overload range | 150% |
Limit overload range | 200% |
Material Science | 合金钢/Alloy Steel |
Protection level | IP68 |
