TAT10U / U Type Static Torque Sensor
INTRODUCTION:
Suitable for static and discontinuous rotation torque measurement;
Material: Aluminum alloy
Exterior: Compact structure
- Range: 0~20KN m
- Output: 1mv/V, 0~±5/10V, 4~20mA optional
- Accuracy: ±0.2%F.S
It is suitable for precision control of robot arms, grinding and polishing of curved surfaces, precise carving of machining centers, and precision testing of medical equipment.
Material: Aluminum alloy
Features: Low height
It is suitable for static and discontinuous rotation torque measurement.
Material: Aluminum alloy
Exterior: Compact structure Easy to install
Static Torque Sensor
D 37.6mm*H 50.8mm
Capacity: 1,2,3,5,6,10,20,30,50,100,150N.m
Category: Static Reaction Torque Sensor
With the characteristics of double flange connection, the TJN-3 static torque measurement sensor is easy to install. Suitable for the measurement and control of static and discontinuous rotation torque.
1、Static torque sensor is a kind of sensor used to measure the torque of a stationary or slowly rotating object.
2、The flange mounted sensor is connected with a load transfer device, which can output voltage or current signals.
3、Static torque sensors can be used in various industrial fields, such as electric screwdrivers, torque wrenches, wind turbines and so on.
4、Small size, light weight and convenient installation and use.
5、 High detection accuracy, good stability and strong anti-interference ability.
Flange to flange torque sensor ZMFNJ is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. ZMFNJ can be used in both clockwise and counterclockwise direction ranging from 5Nm up to 10000Nm. The measuring range and dual flange size can be customized to meet customer’s requirements.
Features:
Capacity 5Nm-10000Nm
Static torsion measure
Rational outputs
Nickel plated alloy steel
Optional features
Hermetically sealed available

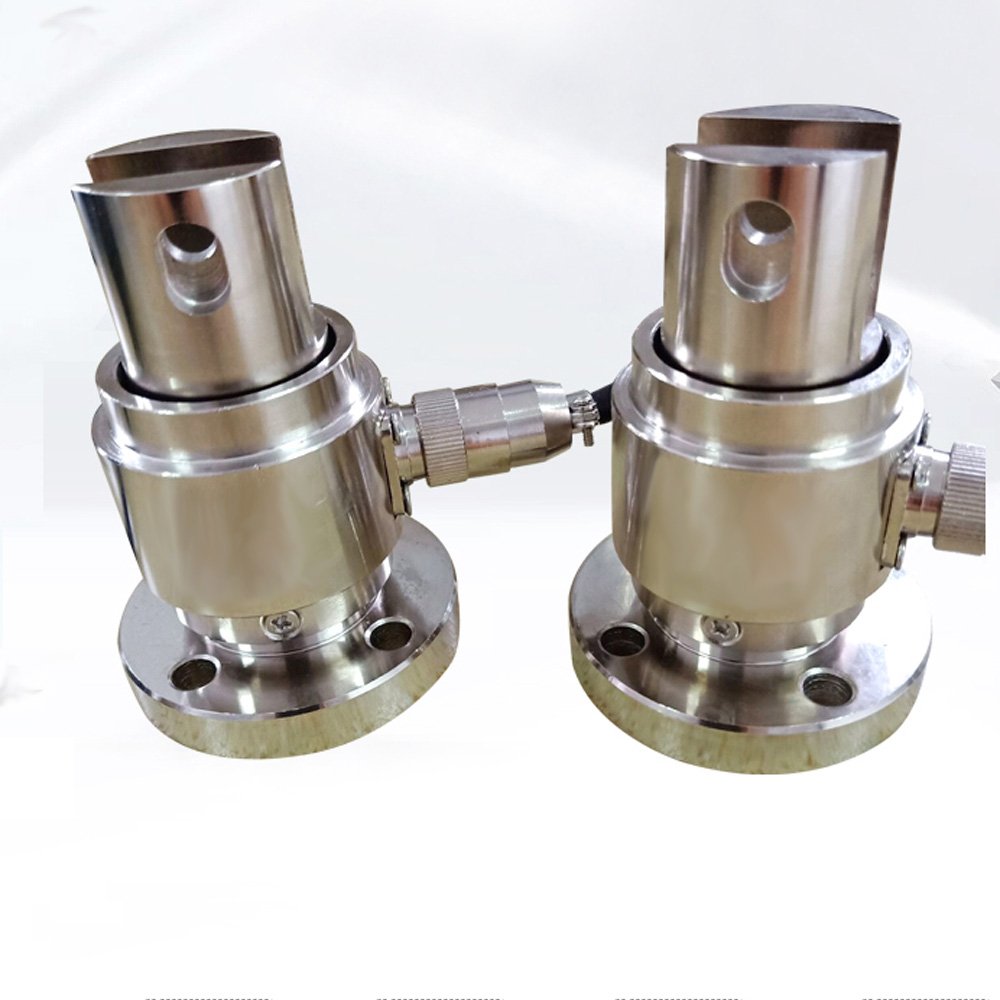

The ZMNJF2 is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. The ZMNJF2 can be used in both clockwise and counterclockwise direction ranging from 1000Nm up to 5000Nm. The sensor is used in static and non-rotating torsion measure applications.
Features:
Capacity 1000Nm-5000Nm
Static torsion measure
Rational outputs
Nickel plated alloy steel
Optional features:
Hermetically sealed available
Static Torque Sensor
D 38mm*H 31.8mm
Capacity: 0.1,0.2,0.5,1,2,3, 5,10N.m
Category: Static Reaction Torque Sensor
It is suitable for precision control of robot arms, grinding and polishing of curved surfaces, precise carving of machining centers, and precision testing of medical equipment.
Material: Aluminum alloy
Features: Low height
- Range: 0~5000N m
- Output: 1mv/V, 0~±5/10V, 4~20mA optional
- Accuracy: ≤±0.1%F.S
