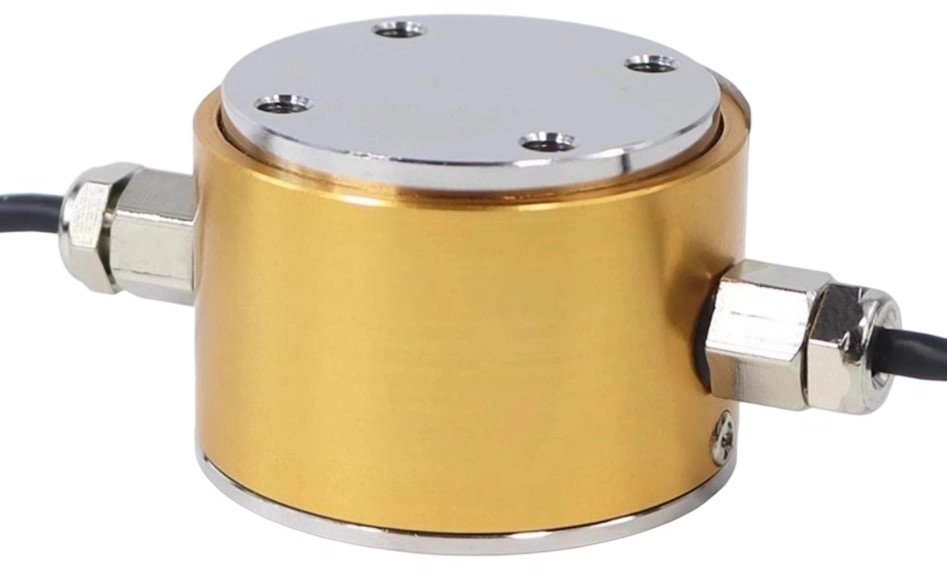

TAS3FM TRIAXIAL FORCE TRANSDUCER
INTRODUCTION:
HT SENSOR / TAS3FM / TRIAXIAL FORCE TRANSDUCER
Product description:
Capacity ：1~50N.m, 50~·000N
Type: torque and compression /Tension force sensor
A torque-compression sensor is a type of sensor capable of measuring both compression and torque force simultaneously. It can be used to measure the feed force and torque during processes such as drilling, cutting, and screw tightening, or to measure the torsional characteristics of components like springs, bearings, and clutches
-
설명
- |
-
Download as PDF
- |
Fx Fy 200N Fz 400N Mx My Mz 18Nm Hard Aluminum Alloy Six Axis Force Sensor FARS94B belongs to FARS94 which is in Six Axis Force Sensor category of our brand FIBOS FARS-Series, FARS94B could be used to measure 6-axis force that Fx,Fy are both 200N, its Fz is 400N, and Mx,My,Mz are all 18N.m, its Height is 26mm.
Fx Fy Fz Each 150N Mx My Mz Each 5Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS46B is a model of our brand FIBOS FARS-Series, it belongs to FARS46. FARS46B can be used to measure multi-axis force Fx,Fy and Fz are the same 150N, Mx,My and Mz are all 5Nm, its Diameter is 46mm and Height is 19.4mm, its weight is 0.05kg.
Suitable for the measurement of multi-directional forces in robot arms, robots, aircraft, medical technology, shipbuilding, etc.
Fx Fy Fz Each 50N Mx My Mz Each 2Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS36B is a model of our brand FIBOS FARS-Series, it belongs to FARS36. FARS36B can measure 6 axis force Fx,Fy and Fz are the same 50N, Mx,My and Mz are 2Nm, its Diameter is 30mm and Height is 20mm, its weight is 0.05kg.
XYZ 0.5,1,3,5,10,30kN Or Customized 3 Axis Force Sensor FA731O belongs to FA731, 3 Axis Force Sensor FA731O can be used to measure three-axis force, its X axis,Y axis,Z axis force range all are same 0.5kN,1kN,3kN,5kN,10kN,30kN or customized capacity, its Creep(30min) and Repeatability both ≤0.08%F.S. or can be customized.
Fx Fy Fz Each 50N Mx My Mz Each 2Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS46A is a model of FARS46 which belongs to our brand FIBOS FARS-Series. FARS46A can measure six-axis load Fx,Fy and Fz are 50N, Mx,My and Mz are the same 2Nm, its Diameter is 46mm and Height is 19.4mm, its weight is 0.06kg.
Fx Fy 500N Fz 700N Mx My Mz 18Nm Hard Aluminum Alloy Six Axis Force Sensor FARS75D is a model of our brand FIBOS FARS-Series, it belongs to FARS75 with higher height 33.5mm but same diameter 75mm, FARS75D can be used to measure 6 axis force Fx and Fy are 500N, Fz is 700N, Mx,My and Mz are 18Nm, its weight is 0.36kg.
Fibos force sensor multiple range load cell FA704C can measure forces in three vertical axes at the same time. The 3-axis load cell is available in a capacity range from 50N to 5000N for all three axes. The three-dimensional force sensor is based on the strain transducer and adopts the resistance strain transducer principle. The 30mm height of this multi-axis load cell allows it to be used in many situations
Fx Fy 400N Fz 500N Mx My Mz 12Nm Hard Aluminum Alloy Six Axis Force Sensor FARS82C is a model of Six Axis Force Sensor, it belongs to FARS82 in our brand FIBOS FARS-Series, Six Axis Force Sensor FARS82C can measure multi-axis force Fx,Fy are both 400N, Fz is 500N, Mx,My,Mz are all the same 12Nm, its Diameter is 82mm and Height is 33.5mm, its weight is 0.32kg.
XYZ 50-300kg Stainless Steel 3 Axis Force Sensor FA728 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA728 can be used to measure 3-axis force, its X axis,Y axis,Z axis force ranges the same from 50kg up to 300kg capacity, its Rated output range is 1.0±10%mV/V, and its Zero Balance range is ±1%mV/V.
XYZ 10,50,100,500kg Or Customized 3 Axis Force Sensor FA730 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA730 can be used to measure 3 axis force, its X axis,Y axis and Z axis force range are all the same 10kg,50kg,100kg and 500kg or customized capacity, its Creep(30min),Hysteresis and Repeatability all the same ≤0.02%F.S. or can be customized, its Hysteresis ≤0.02%F.S. or can also be customized.
Fx Fy Fz 30N Mx My Mz 1.5Nm Hard Aluminum Alloy Six Axis Force Sensor FARS75E is a model of our brand FIBOS FARS-Series, it belongs to FARS75 which is its mother model in six axis force sensor, FARS75E can be used to measure six axis force Fx,Fy and Fz are 30N, Mx,My,Mz are 1.5Nm, its Diameter is 75mm and Height is 31.5mm.
