Honeywell Model 3719 Bolt and Engine Mount Force Sensor
The BPR097 compression force sensor provides the ideal solution for bolt force monitoring. It can be used in product assembly lines in various industries, such as automotive assembly, robotics and other semi-automatic assembly lines, for measuring or monitoring bolt forces. It has a high dynamic response frequency and is suitable for fast measurement.
It is Also known as shear beam weighing sensor, its shape is mostly rectangular, and the strain zone is located in the middle of the sensor. The cantilever beam weighing sensor has the characteristics of simple structure, easy installation, reliable use, long service life, and high cost-effectiveness.
Cantilever beam weighing sensors are used in highway scales such as automobile scales, main axle load gauges, small weighing scales, and flat scales in industrial scales Platform scales, steel cylinder scales, and other fields have been widely used, generally using three or four sensors as a group.
This series torque sensor are suitable for many types of collaborative robot terminals, and it is easy to install and operate. It is widely used in precisions assembly , precisions polishing , Entertainment , constant force grinding and other industries.
1.The elastic body adopts S-beam structure, which has the advantages of compact appearance, threaded design at both ends, small volume, high precision and easy installation, and can meet the force measurement in the range of 0-50kg.
2.It is mainly used for automobile press-fitting, automatic assembly, 3C product testing, robot hand grip, keyboard feel testing,etc.
3.At the same time, it is also widely used in the force measuring system of belt scale, hopper scale, electromechanical combination scale, universal material testing machine, hook scale and various engineering devices.
4.Alloy steel, sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments.
5.Provided with a certificate of conformance and full-scale calibration.
This sensor is suitable for most domestic and foreign cooperative robots. It is an embedded high-precision six-axis force sensor that our company hot sells. It uses silicon strain gauge, based on the principle of strain electrical measurement to convert the load into voltage signal, combined with six axis joint calibration technology to make the product achieve higher accuracy and precision. It is widely used in 3C testing, medical testing, drag teaching, automobile testing, and other fields.
KWR116 series is designed specifically for industrial robotic applications. The series provides a wide range of force and torque capacities to select from. It has various versions for different requirements.The built-in high-precision data acquisition module can combine with the six-axis joint decoupling algorithm to achieve higher accuracy and precision of the sensor.

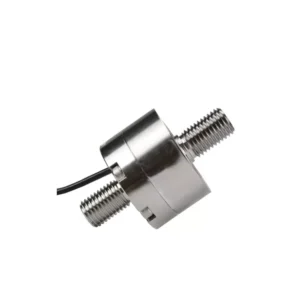

- Stainless steel, tension and pressure can be measured in both directions!
- Suitable for pull and push dynamometer,hopper scale and industrial measuring systems.
The BPR029 compression force sensor provides the ideal solution for bolt force monitoring. It can be used in product assembly lines in various industries, such as automotive assembly, robotics and other semi-automatic assembly lines, for measuring or monitoring bolt forces. It has a high dynamic response frequency and is suitable for fast measurement.
Product description:
Capacity ： 120KN~400KN
Material: alloy steel
Type: compression type.
Miniature feature and low profit, customizable.
Defend grade: IP67.
Application: suitable for testing machine, force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.
Product description:
Capacity ：50kg~3000kg
Alloy Steel
High stability
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment, suitable for bolt tightening force detection, extrusion, assembly, tank, materialmechanics testing machine and other fields.
The ZMMC2 brake pedal force sensor is designed to measure load applied to the brake, accelerator or clutch pedal. Zhimin’s brake pedal load cells are manufactured to be of excellent quality, so that your application will be reliable, durable, accurate and precise.
Features：
Capacity 500-2000N
High accuracy
Low profile
Nickel plated alloy steel
Optional features：
Optional output(4-20mA,0-5V)
1.The elastic body adopts S-beam structure, which has the advantages of compact appearance, threaded design at both ends, small volume, high precision and easy installation, and can meet the force measurement in the range of 1-100kg.
2.It is mainly used for automobile press-fitting, automatic assembly, 3C product testing, robot hand grip, keyboard feel testing,etc.
3.At the same time, it is also widely used in the force measuring system of belt scale, hopper scale, electromechanical combination scale, universal material testing machine, hook scale and various engineering devices.
4.oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments.
