Honeywell Model 31 Low/Mid/High Range Precision Miniature Load Cell
Honeywell / Model 31 Low/Mid/High Range Precision Miniature Load Cell

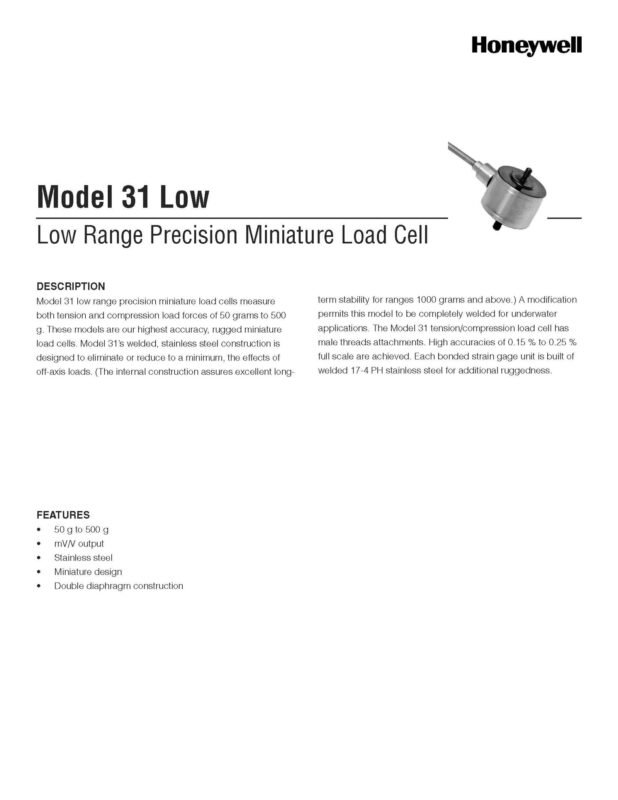

Model 31 low range precision miniature load cells measure both tension and compression load forces of 50 grams to 500 g. These models are our highest accuracy, rugged miniature load cells. Model 31’s welded, stainless steel construction is designed to eliminate or reduce to a minimum, the effects of off-axis loads. (The internal construction assures excellent long-term stability for ranges 1000 grams and above.) A modification permits this model to be completely welded for underwater applications. The Model 31 tension/compression load cell has male threads attachments. High accuracies of 0.15 % to 0.25 % full scale are achieved. Each bonded strain gage unit is built of welded 17-4 PH stainless steel for additional ruggedness.
Used in manufacturing processes such as injection molding and extrusion;
Automobile press assembly, automated assembly, 3C product testing,
New energy product assembly, medical testing, robotics,Mold assembly and other industrial test, measurement and control systems;
Material: stainless steel Customizable high temp.
Size: Ultra-thin size
Product description:Features:
Capacity ： 100~750g
Material: aluminum-alloy
Type: Parallel beam type
Defend grade: IP65
Application : body scales, hand scales, kitchen scales,postal scales, fishing scales, baby body scales and other micro electronic weighing systems.
Widely used in push and pull gauges, hopper scales, various industrial weighing systems, etc .;Welding force test and tension test, auto press assembly, automatic assembly, 3C product test;New energy product assembly, medical testing, robotics, mold assembly, and other industrial test, measurement, and control systems have high dynamic response frequencies.
Material: stainless steel With overload protection function
Size: S type, Low height
Product Numbers:TAS501M
Product description:
Capacity ： 0.5~50kg
Material: alloy steel or stainless steel
Type: S type
Defend grade: IP67.
Application: electronic crane scale, hopper scale,mechanical conversion scale and other electronic weighing devices.
It can be applied to auto press assembly, automated assembly, 3C product testing,New energy product assembly, medical testing, robotics, mold assembly, and other industrial testing;
Material: stainless steel
Size: Small size, Low height
Widely used in auto press assembly, automated assembly, 3C product testing;New energy product assembly, medical testing, robotics, mold assembly;
And other industrial test, measurement and control systems.
Material: 17-4PH stainless steel
Size: High speed, low deflection
Widely used in automobiles, robots and medical equipment;Used in situations where space is limited;
It is also used for research and development in various industries.
Material: stainless steel, High temperature performance can be determine
Size: Ultra-thin size, Low height
Model LFH-7I subminiature load cell is a low profile force transducer for applications with minimal space and high capacity requirements. This transducer utilizes foil strain gages to measure compression loads of up to 10,000 lb and achieves accuracy of ±0.7 % full scale. The top of the load cell is the area where the force is applied and the base ring of the load cell must be placed on a hard, machine-ground flat surface to obtain optimum accuracy.
Widely used in various industrial weighing systems such as push, pull gauge, hopper scale, etc .;Suitable for harsh environments.
Material: stainless steel
Size: Low height Small amount
Widely used in welding force test, tension test, auto press assembly, automated assembly, 3C product test,New energy product assembly, medical testing, robotics, mold assembly, and other industrial test, measurement, and control systems;High dynamic response frequency.
Material: stainless steel
Size: S type Low height
Model 53 load cells are bonded foil strain gage transducers designed for cost efficient production and testing applications (i.e. press calibration). Engineered compression force measurements up to 50K lb., this model achieves a maximum non-linearity of 0.5 % full scale. Precision gaging techniques and a stainless steel construction provides excellent long-term stability and reliability under severe operating conditions. The Model 53 compression-only load cell has an integral load button machined as part of the load cell. The Model 53 must be mounted on a smooth flat surface for proper operation. Three tapped holes are provided for mounting.
Эластомер сенсора изготовлен из алюминиевого сплава, герметизирован клеем, поверхность обработана прозрачным анодированием. Степень защиты достигает IP65.
