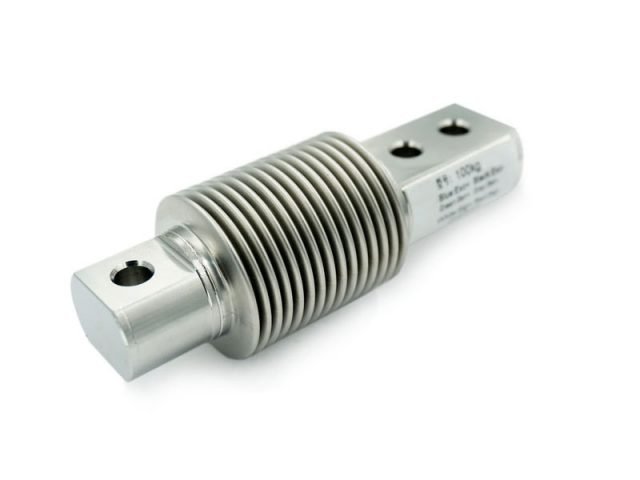

M5 M5M Bending Beam Load Cell
Bending beam load cell, for multihead scale, hopper scale and other weighing systems
- M5-CE
- M5M-OIML/NTEP
- Large capacity up to 1000kg
- Alloy steel or 17-4Ph stainless steel material
- Suitable for crane scales, hopper scales, etc.
- Default cable length is 3m, diameter is 5mm
(Optional customized longer cable) - Interchangeable with below models: HMB* Z6, Mettler Toledo* MTB, Tedea-Huntleigh* 335, Celtron*HBB, Revere*SHBxR, Zemic* BM11, Flintec* SB8
Models
| Part No. | 120231 | 120232 | 120233 | 120234 | 120235 | 120236 | 120237 | 120238 | 120239 |
| M5 | 10kg | 20kg | 30kg | 50kg | 100kg | 200kg | 300kg | 500kg | 1000kg |
| Part No. | 120240 | 120241 | 120242 | 120243 | 120244 | 120245 | 120246 | ||
| M5M | 20kg | 30kg | 50kg | 100kg | 200kg | 300kg | 500kg | ||
| Class | C3 | ||||||||
| IP | IP67 | ||||||||
| Item | Specification |
|---|---|
| Capacity | 20 – 1000 kg (M5)20 – 500 kg (M5M) |
| Sensitivity | 2.0 ± 0.02 mV/V |
| Accuracy | C3 |
| Creep (30 min) | ±0.01% F.S. |
| Zero Balance | ±1% F.S. |
| Temperature Effect on Zero (TE Zero) | ±0.02% F.S. / 10℃ |
| Temperature Effect on Span (TE Span) | ±0.02% F.S. / 10℃ |
| Input Resistance | 385 ± 5 Ω (M5)460 ± 50 Ω (M5M) |
| Output Resistance | 350 ± 2 Ω (M5)350 ± 3.5 Ω (M5M) |
| Insulation Resistance | ≥ 5000 MΩ |
| Operating Temperature Range | -30 ~ 70 ℃ |
| Safe Load | 150% F.S. |
| Overload Limitation | 200% F.S. |
| Recommended Excitation | 5 – 12 V |
| Maximum Excitation | 18 V |
| Protection | IP67 |
