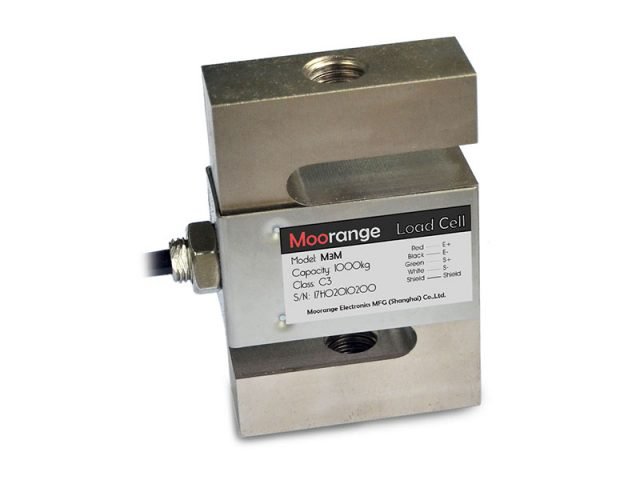

M3M M3S S-Type Tension Load Cell
S-Type Tension Load Cell, for crane scales, suspended tanks, weighing conveyor, batching machine, and hybrid scales
- M3M/M3S-OIML/NTEP
- Large capacity up to 30000kg
- Alloy steel or stainless steel material
- Easy to install and maintain
- Suitable for crane scales, hopper scales, etc.
- Default cable length is 4m, diameter is 5mm
(Optional customized longer cable) - Interchangeable with below models: HMB* S35, Mettler Toledo* SLS410, Celtron*STC, Revere*363, Zemic* H3/B3G, Flintec* PC60
Models
| Part No. | 120186 | 120187 | 120188 | 120189 | 120190 | 120191 | 120192 | 120193 | 120194 |
| M3M | 50kg | 100kg | 200kg | 300kg | 500kg | 750kg | 1000kg | 2000kg | 3000kg |
| Part No. | 120195 | 120196 | 120197 | 120198 | 120199 | 120200 | 120201 | 120202 | 120203 |
| M3M | 5000kg | 7500kg | 10t | 15t | 20t | 30t | 100lb | 200lb | 300lb |
| Part No. | 120204 | 120205 | 120206 | 120207 | 120208 | 120209 | 120210 | 120211 | 120212 |
| M3M | 500lb | 750lb | 1klb | 2klb | 3klb | 5klb | 10klb | 15klb | 20klb |
| Part No. | 120213 | 120214 | 120215 | 120216 | 120217 | 120218 | 120219 | 120220 | 120221 |
| M3S | 100kg | 250kg | 500kg | 1000kg | 2500kg | 5000kg | 7500kg | 10t | 100lb |
| Part No. | 120222 | 120223 | 120224 | 120225 | 120226 | 120227 | 120228 | 120229 | 120230 |
| M3S | 200lb | 500lb | 1klb | 2klb | 3klb | 5klb | 10klb | 15klb | 20klb |
| Class | C3/N5 | ||||||||
| IP | IP67 | ||||||||
| Item | Specification |
|---|---|
| Capacity | 50 – 300 kg | 100 – 2,000 lb |
| Sensitivity | 2.0 ± 0.004 mV/V (kg)3.0 ± 0.008 mV/V (M3M-lb, M3s) |
| Accuracy | C3 | N5 |
| Creep (30 min) | ≤ 0.02% F.S. |
| Zero Balance | ±1 – 1.5% Emax |
| Temperature Effect on Zero (TE* Zero) | 0.017% FS / 10℃ |
| Temperature Effect on Span (TE* Span) | 0.014% FS / 10℃ |
| Input Resistance | 350 ± 3.5 Ω (M3M)430 ± 50 Ω (M3s) |
| Output Resistance | 350 ± 3.5 Ω |
| Insulation Resistance | ≥ 5,000 MΩ |
| Operating Temperature Range | -35 ~ 65 ℃ |
| Safe / Ultimate Load | 150% F.S. / 300% F.S. |
| Recommended Excitation | 5 – 12 VDC |
| Protection | IP67 |
