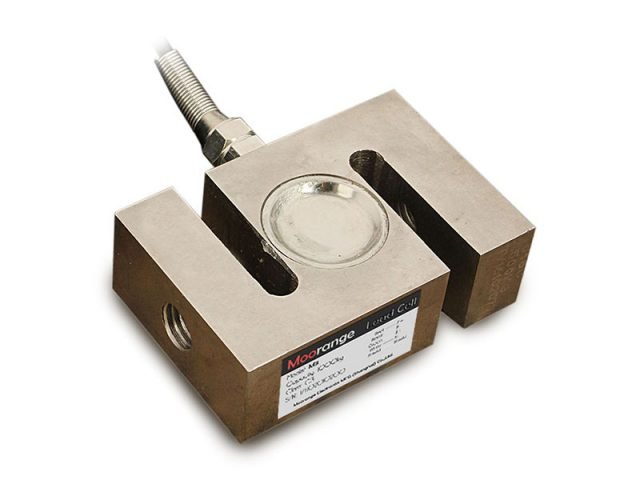

M3 S-Type Load Cell
Features
- M3-CE
- Large capacity up to 20000kg
- Alloy steel or stainless steel material
- Easy to install and maintain
- Suitable for crane scales, hopper scales, etc.
- Default cable length is 4m, diameter is 5mm
(Optional customized longer cable) - Interchangeable with below models: HMB* S35, Mettler Toledo* SLS410, Celtron*STC, Revere*363, Zemic* H3/B3G, Flintec* PC60
Models
| Part No. | 120173 | 120174 | 120175 | 120176 | 120177 | |||
| M3 | 50kg | 100kg | 200kg | 300kg | 500kg | |||
| Part No. | 120178 | 120179 | 120180 | 120181 | 120182 | 120183 | 120184 | 120185 |
| M3 | 1000kg | 2000kg | 3000kg | 5000kg | 7500kg | 10000kg | 15000kg | 20000kg |
| Class | C3/N5 | |||||||
| IP | IP67 | |||||||
| Item | Specification |
|---|---|
| Capacity | 50 – 20,000 kg |
| Sensitivity | 2.0 ± 0.001 mV/V |
| Accuracy | C3 |
| Creep (30 min) | ±0.02% F.S. |
| Zero Balance | ±1% F.S. |
| Temperature Coefficient of Zero (TCO) | ±0.02% F.S. / 10℃ |
| Temperature Coefficient of Span (TC Span) | ±0.02% F.S. / 10℃ |
| Input Resistance | 380 ± 5 Ω |
| Output Resistance | 350 ± 2 Ω |
| Insulation Resistance | ≥ 5,000 MΩ |
| Operating Temperature Range | -50 ~ 70 ℃ |
| Safe Load | 150% F.S. |
| Overload Limitation | 200% F.S. |
| Recommended Excitation | 5 – 12 V |
| Maximum Excitation | 15 V |
| Protection | IP67 |
