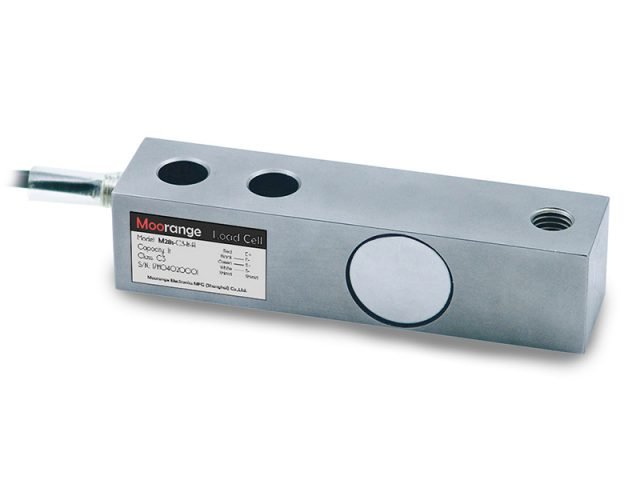

M28s M28b shear beam Load Cell
Features
- M28S-CE
- M28B-OIML/NTEP
- Capacity up to 10000kg
- Stainless steel material
- Optional rubber pads for leveling feet
- Default cable length is 6m, diameter is 5mm
(Optional customized longer cable) - Interchangeable with below models: Tedea-Huntleigh* 3410/3411,3510, Revere*9123, ACB, Sensortronics*65083, Zemic* B8D, Flintec* SB9, Celtron*SEB
Models
| Part No. | 120128 | 120129 | 120130 | 120131 | 120132 | 120133 | 120134 | 120135 | 120136 |
| M28S | 100kg | 250kg | 500kg | 1000kg | 1500kg | 2000kg | 2500kg | 5000kg | 10000kg |
| Part No. | 120137 | 120138 | 120139 | 120140 | 120141 | 120142 | |||
| M28B | 250kg | 500kg | 1000kg | 2000kg | 5000kg | 10000kg | |||
| Part No. | 120143 | 120144 | 120145 | 120146 | 120147 | 120148 | 120149 | 120150 | 120151 |
| M28B | 500lb | 1klb | 2klb | 4klb | 5klb | 7.5klb | 10klb | 15klb | 20klb |
| Class | C3 | ||||||||
| IP | IP67 | ||||||||
| Item | Specification |
|---|---|
| Capacity | 250 – 5,000 kg |
| Sensitivity | 3.0 ± 0.008 mV/V |
| Accuracy | C3 | C4 | C5 |
| Non-Linearity | 0.02% FS |
| Non-Repeatability | 0.01% FS |
| Creep (30 min) | 0.02% FS |
| Zero Balance | ±1% Emax |
| Temperature Effect on Zero (TE Zero) | 0.018% FS / 10℃ |
| Temperature Effect on Span (TE Span) | 0.014% FS / 10℃ |
| Input Resistance | 350 ± 3.5 Ω |
| Output Resistance | 350 ± 3.5 Ω |
| Insulation Resistance | ≥ 5,000 MΩ |
| Operating Temperature Range | -35 ~ 65 ℃ |
| Safe Load | 150% F.S. |
| Ultimate Overload | 300% F.S. |
| Recommended Excitation | 5 – 12 VDC |
| Protection | IP67 |
