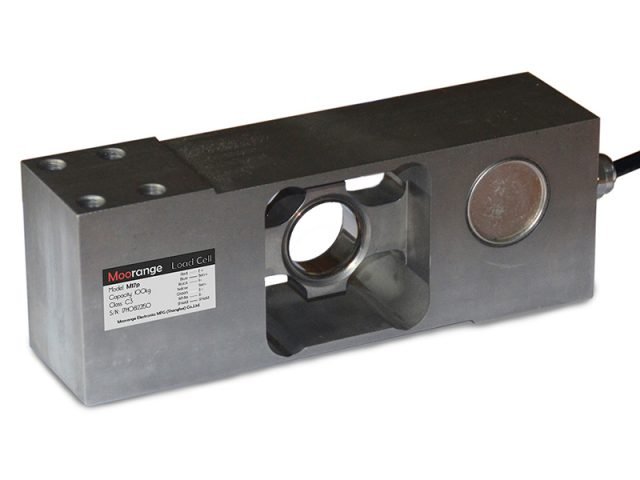

M17P Stainless Steel IP68 and IP69K Load Cell
M17P Stainless Steel IP68 and IP69K Waterproof Load Cell, perfect for waterproof weighing platform and waterproof scales.
17-4Ph stainless steel material
Fully welded construction
Comprehensive mounting holes
IP68 | IP69K protection
Capacity up to 500Kg
Recommended platforms:
250x250mm to 800x800mm
default of 3m Cable dia 5mm
Customized cable available
| Part No. | 120093 | 120094 | 120095 | 120096 |
| M17P | 10kg | 20kg | 50kg | 100kg |
| Part No. | 120097 | 120098 | 120099 | 120100 |
| M17P-L | 100kg | 200kg | 300kg | 500kg |
| Class | C3 | |||
| IP | IP68 & IP69K | |||
| Item | Specification |
|---|---|
| Capacity | 10 – 500 kg |
| Sensitivity | 2.0 ± 0.2 mV/V |
| Accuracy | C3 | C4 | C5 |
| Non-Linearity | 0.017% FS |
| Non-Repeatability | 0.01% FS |
| Creep (30 min) | 0.02% FS |
| Zero Balance | ±1% Emax |
| Temperature Effect on Zero (TE Zero) | 0.017% FS / 10℃ |
| Temperature Effect on Span (TE Span) | 0.014% FS / 10℃ |
| Input Resistance | 350 ± 3.5 Ω |
| Output Resistance | 350 ± 3.5 Ω |
| Insulation Resistance | ≥ 5000 MΩ |
| Operating Temperature Range | -35 ~ 65 ℃ |
| Safe Load | 150% F.S. |
| Ultimate Overload | 300% F.S. |
| Recommended Excitation | 5 – 12 VDC |
| Protection | IP68 |
