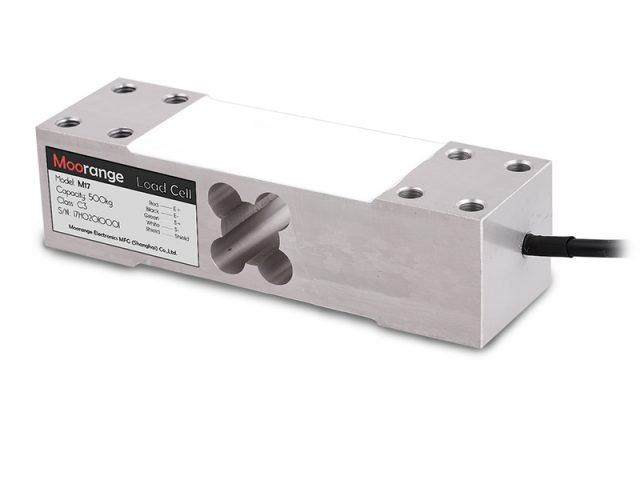

M17 M17M Single Point Load Cell
The most popular single point load cell, for bench scales, platform scales and medical scales, etc.
M17 – CE
M17M – OIML/NTEP
Aluminum alloy material
Max capacity of 750Kg
Anodized load cell body
Recommended platforms:
from 400*400mm to 800*800mm
default of 3m Cable dia 3.9mm
Customized length available
| Part No. | 120052 | 120053 | 120054 | 120055 | 120056 | 120057 | 120058 |
| M17 | 50kg | 100kg | 200kg | 300kg | 500kg | 600kg | 750kg |
| Part No. | 120059 | 120060 | 120061 | 120062 | 120063 | 120064 | 120065 |
| M17M | 50kg | 100kg | 200kg | 300kg | 500kg | 600kg | 750kg |
| Class | C3 | ||||||
| IP | IP65 | ||||||
Capacity
50 – 750kg
Sensitivity
2.0 ± 0.2mV/V
Accuracy
C3
Creep (30 Min)
0.015%F.S.
Zero Balance
± 3% Emax
TE Zero
0.014%F.S./10℃
TE Span
0.017%F.S./10℃
Input Resistance
409 ± 6Ω
Output Resistance
350 ± 3Ω
Insultation Resistance
≥5000mΩ
Opearting Tem Range
-35…65℃
Safe Load
150% F.S.
Overload Limitation
300% F.S.
Recommended Excitation
5-12VDC
Maximum Excitation
18VDC
Protection
IP65
