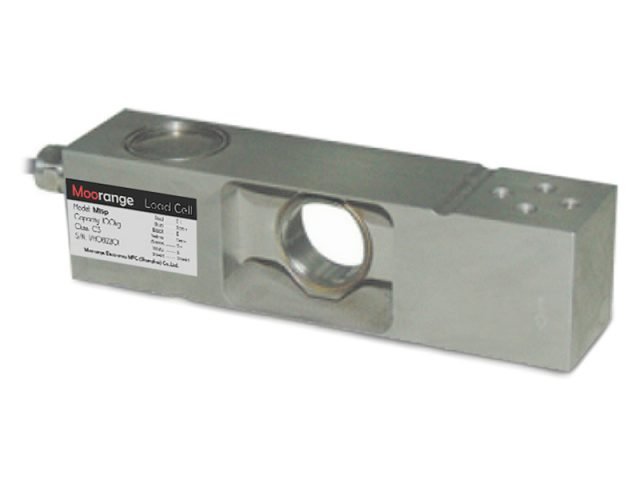

M15P Stainless Steel Waterproof Load Cell
M15P Stainless Steel Waterproof Load Cell, a perfect load cell for washdown weighing platform or washdown scales.
17-4Ph stainless steel material
Fully welded construction
IP68 protection
Capacity up to 300Kg
Recommended platforms:
300x300mm to 500x500mm
default of 2m Cable dia 5mm
Customized cable available
| Part No. | 120090 | 120091 | 120092 |
| Models | M15P-50 | M15P-200 | M15P-300 |
| Capacity | 50kg | 200kg | 300kg |
| Class | C3 | C3 | C3 |
| Weight | 1.8kg | 1.8kg | 1.8kg |
| Item | Specification |
|---|---|
| Capacity | 50 – 300 kg |
| Sensitivity | 2.0 ± 0.2 mV/V |
| Accuracy | C3 |
| Combined Error | ≤ 0.023% FS |
| Zero Output | ±2% Emax |
| Temperature Effect on Zero (TE* Zero) | 0.017% FS / 10℃ |
| Temperature Effect on Sensitivity (TE* Sensitivity) | 0.014% FS / 10℃ |
| Input Resistance | 350 ± 3.5 Ω |
| Output Resistance | 351 ± 2 Ω |
| Insulation Resistance | ≥ 5000 MΩ (50 VDC) |
| Operating Temperature Range | -35 ~ 65 ℃ |
| Non-linearity | ±0.017% Emax |
| Repeatability | ±0.01% Emax |
| Overload Limitation | 150% F.S. |
| Recommended Excitation | 5 – 12 VDC |
| Protection | IP68 |
